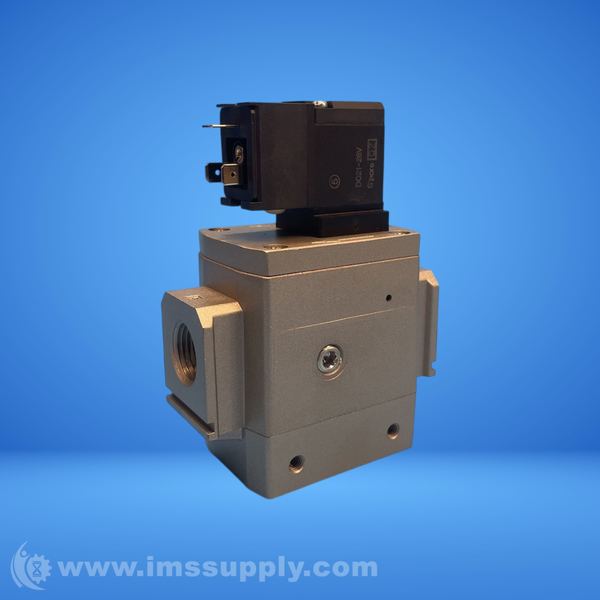

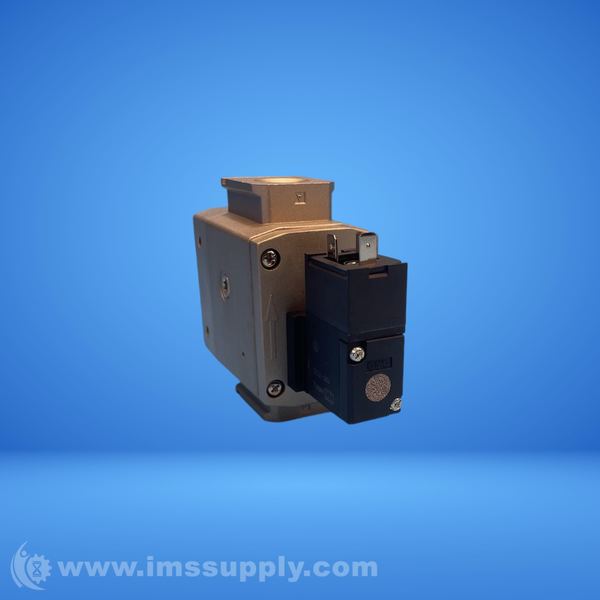

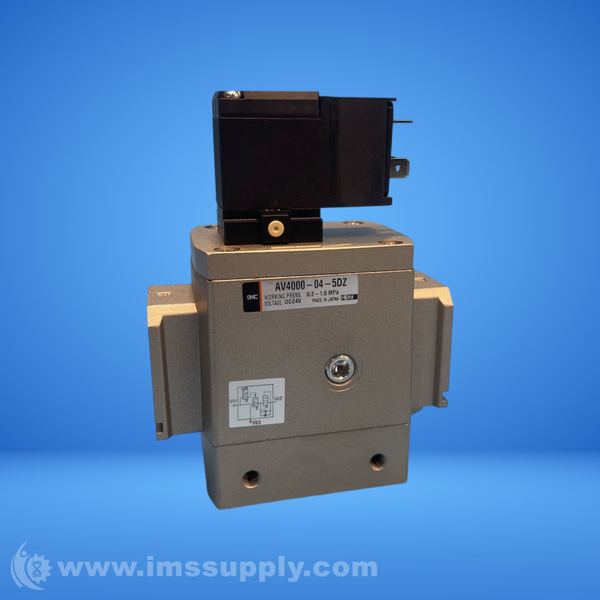

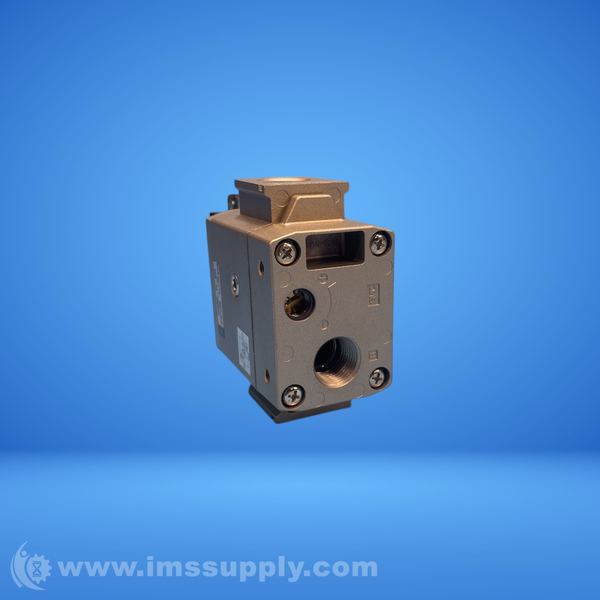

SMC AV4000-04-5DZ SOFT START-UP VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AV4000-04-5DZ
IMS Product Code: 2122441
Packaging: Sold Individually
Description:
SMC AV4000-04-5DZ Soft Start-Up Valve
Soft start-up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply. Includes manually operated supply and exhaust functions.
Specifications
- Series: AV2000/3000/4000/5000
- Type: Soft Start-Up Valve
- Port Size: 1/2
- Operating Pressure Range: 0.2 to 1 MPa
- Proof Pressure: 1.5 MPa
- Pressure Gauge Port Size: 1/8
- Ambient and Fluid Temperature: 0 to 60C
- Effective Area (mm2): 61
- Mass (kg): 0.74
- Body Material: Aluminum
- Seal Material: Nitrile
- Solenoid Supply Voltage: 24 V dc
- Solenoid Power Consumption: 1.8 W
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Flow Direction: Left-to-Right
- Overall Height: 98 mm
- Overall Length: 147 mm
- Overall Width: 52 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
