SMC CA2B40-300 TIE ROD AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CA2B40-300
IMS Product Code: 2127236
Packaging: Sold Individually
Description:

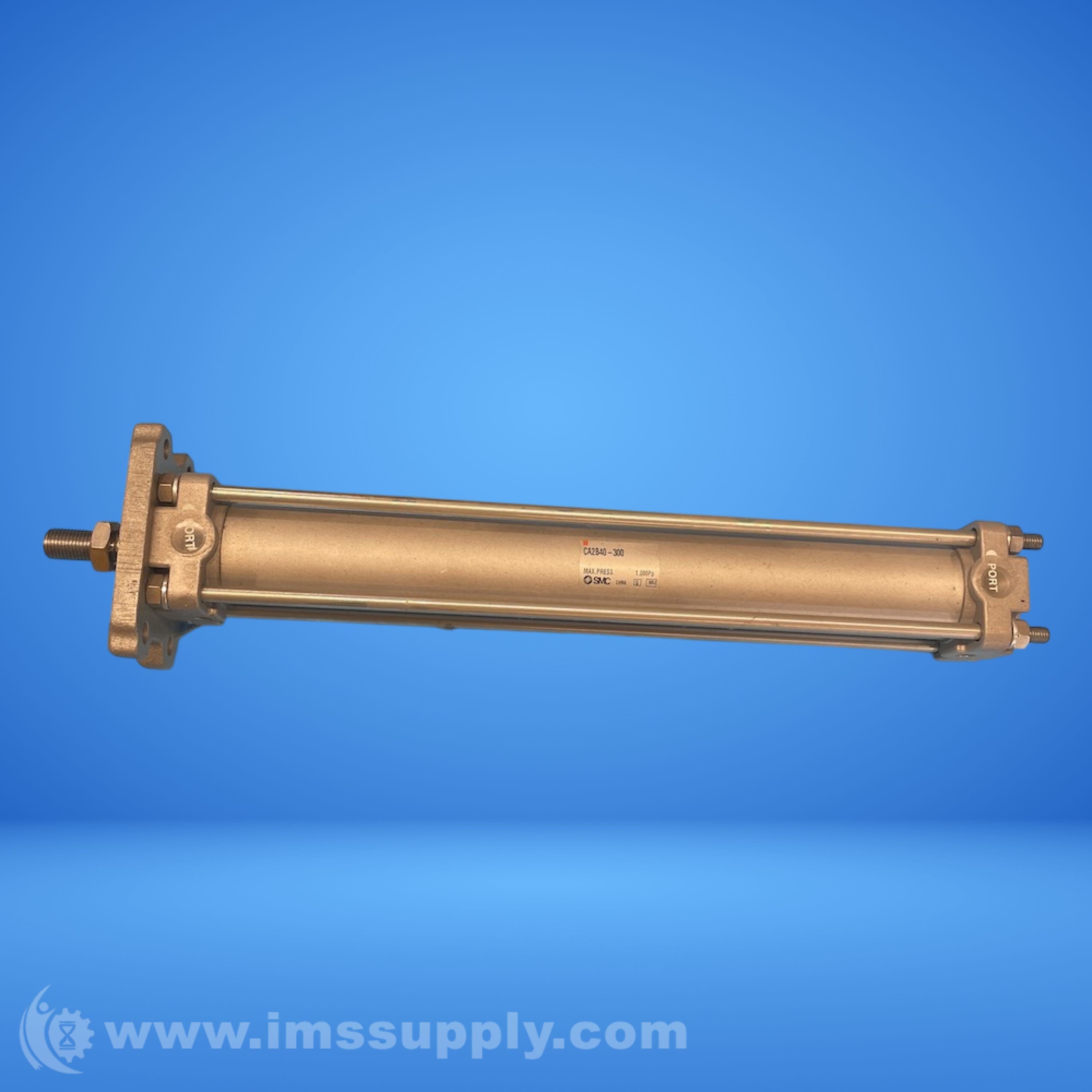

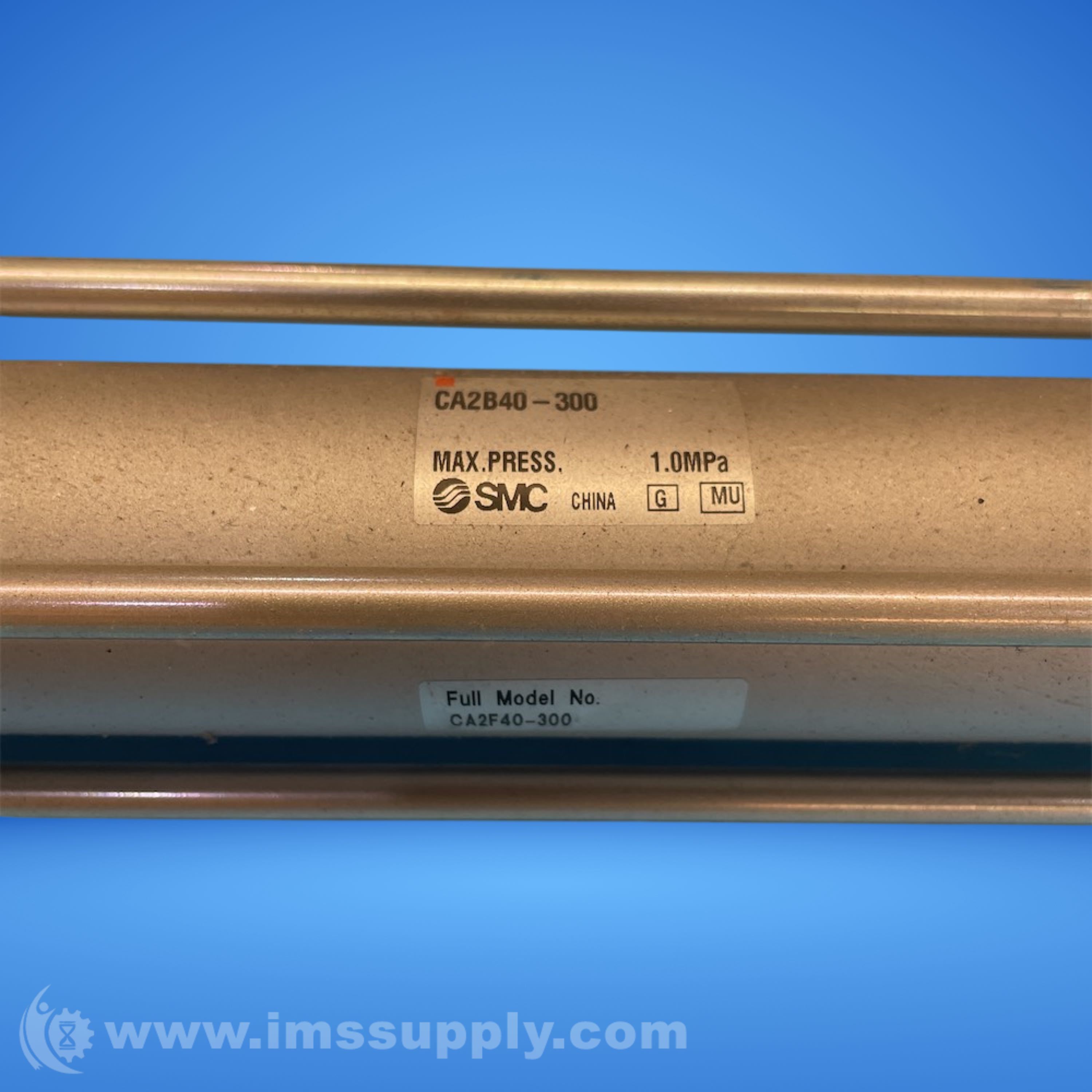

SMC CA2B40-300 Tie Rod Air Cylinder
Double-acting tie rod air cylinder with 40 mm bore and 300 mm stroke.
Specifications
- Bore Diameter: 40 mm
- Cushion Type: Cushion Both Ends
- Cylinder Type: Metric
- Locking Position: Without Locks
- Lube Style: Non-Lube
- Maximum Operating Pressure: 145 psi
- Minimum Operating Pressure: 7 psi
- Mounting Type: Basic, MX0
- Operating Pressure Range: 7 to 145 psi
- Operating Temperature Range: 14 to 158 degrees F
- Overall Height: 60 mm
- Overall Length: 446 mm
- Overall Width: 60 mm
- Piston Action: Double-Acting
- Port Gender: Female
- Port Size: 1/4 BSPT
- Port Thread Standard: BSPT
- Proof Pressure: 218 psi
- Rod - Thread Size: M14x1.5 Male Thread
- Rod Gender: Male
- Rod Size: 16 mm
- Rod Thread Standard: ISO
- Rod Type: Single Rod
- Series: CA2
- Stroke: 300 mm
- Weight: 4.30207 lb

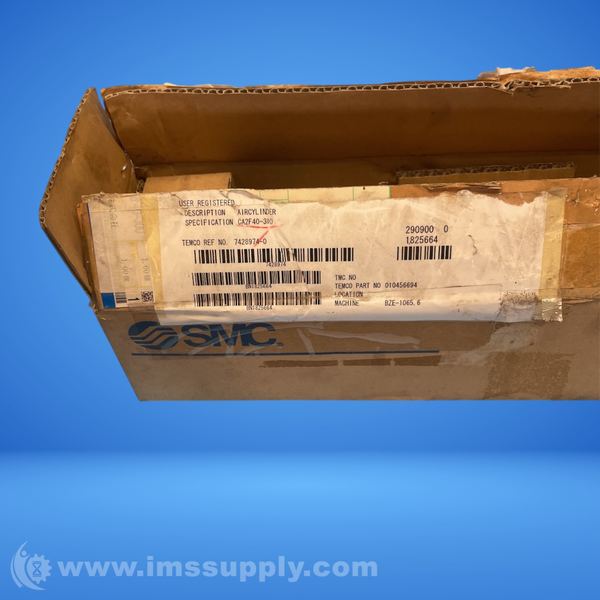

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
