SMC CCT100-300 AIR HYDRO CONVERTER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CCT100-300
IMS Product Code: 1809809
Packaging: Sold Individually
Description:

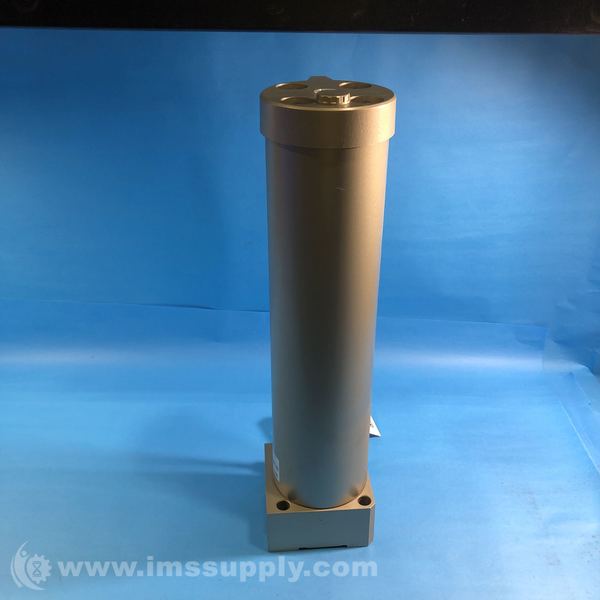

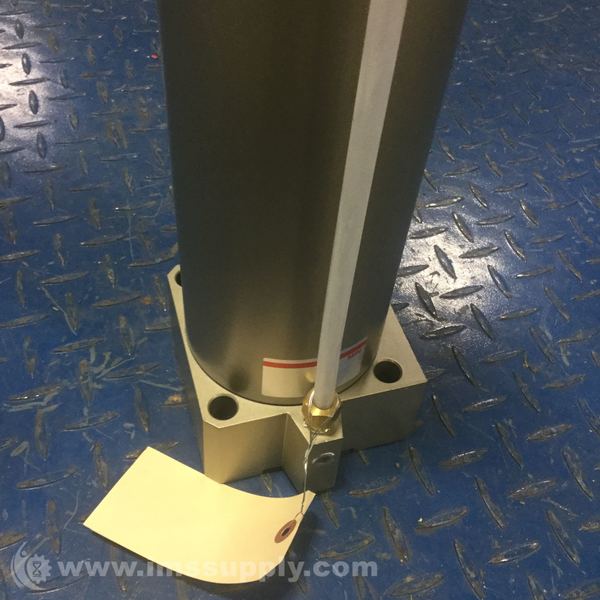

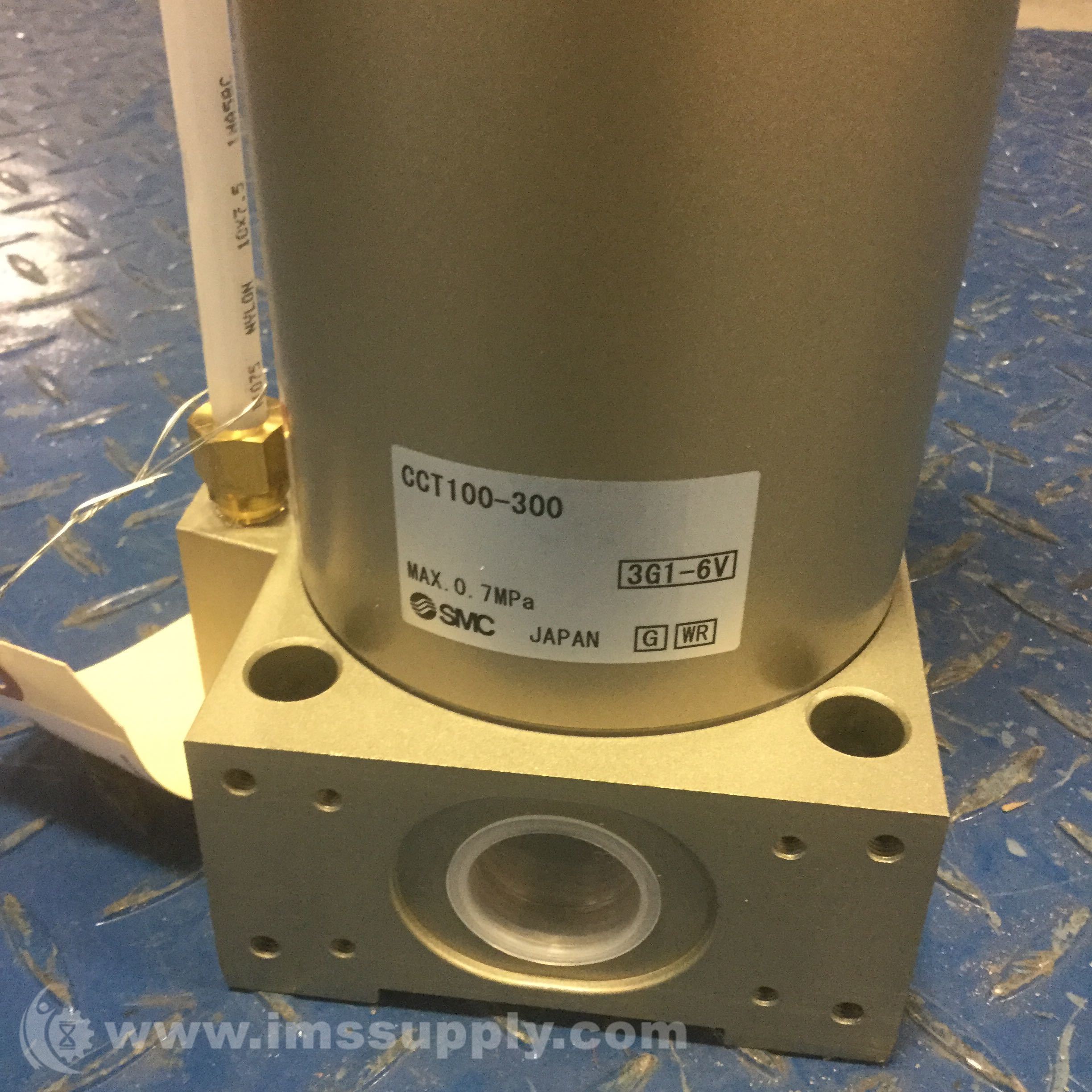

SMC CCT100-300 Air Hydro Converter
Air-hydro unit converting air pressure to hydraulic pressure for actuator operation, solving compression characteristics problems and enabling consistent speed during load fluctuations or low-speed operations.
Specifications
- Converter Size: 100 mm
- Stroke Range: 50 to 800 mm
- Operating Pressure: 0 to 0.7 MPa
- Proof Pressure: 1.05 MPa
- Fluid: Turbine oil (40 to 100 cSt)
- Effective Oil Level Stroke: 300 mm
- Maximum Pressure: 100 psi
- Weight: 10.85282 lb / 4.99 kgs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
