SMC CCT63-100 AIR HYDRO CONVERTER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CCT63-100
IMS Product Code: 1938245
Packaging: Sold Individually
Description:

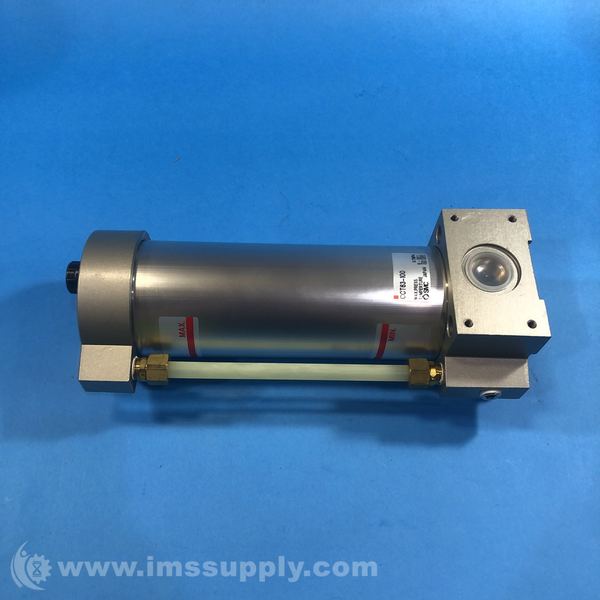

SMC CCT63-100 Air Hydro Converter
Air-hydro converter unit converting air pressure to hydraulic pressure for actuator operation, solving air compression issues for consistent speed and low-speed operation.
Specifications
- Bore Size: 63 mm
- Cylinder Stroke: 100 mm
- Country of Origin: Japan
- Fluid: turbine oil (40 to 100 cSt)
- Maximum Operating Pressure: 0.7 MPa
- Minimum Operating Temperature: 5 degrees C
- Maximum Operating Temperature: 50 degrees C
- Operating Pressure: 0 to 0.7 MPa
- Proof Pressure: 1.05 MPa
- Series: CC
- Weight: 4.15571 lb

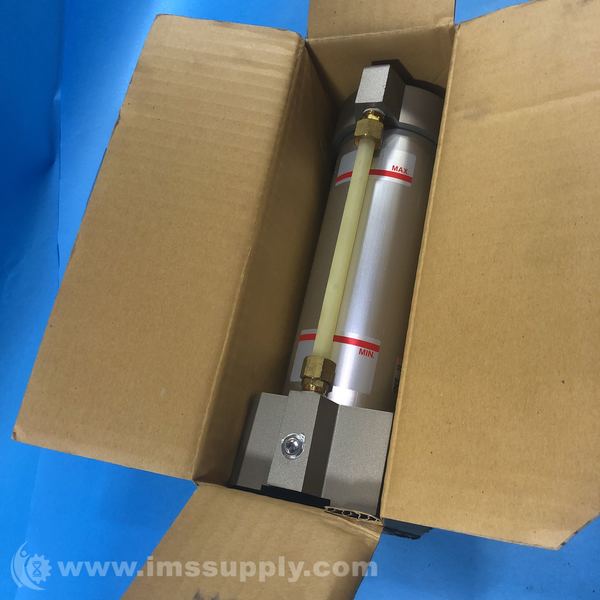

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 44 minutes.
