SMC CDA2D40TN-75-J59WL DOUBLE ACTING CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDA2D40TN-75-J59WL
IMS Product Code: 1820374
Packaging: Sold Individually
Description:

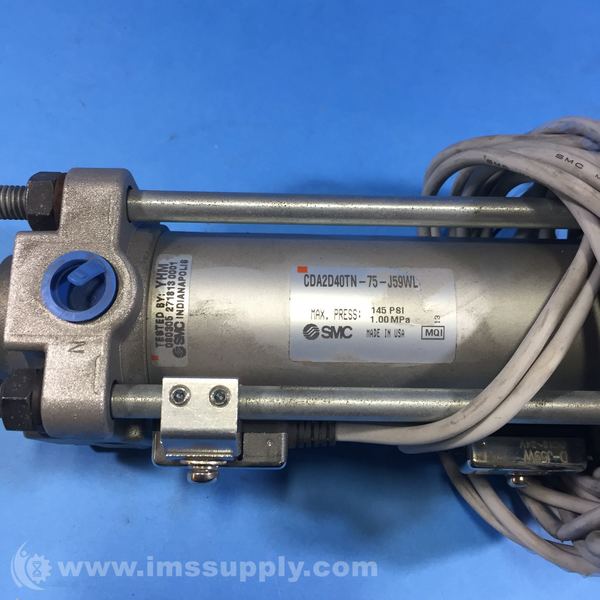

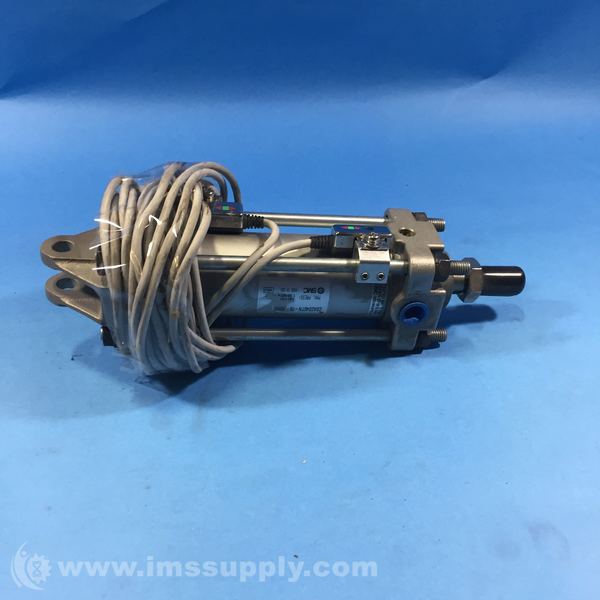

SMC CDA2D40TN-75-J59WL Double Acting Cylinder
Double acting air cylinder with tie-rod design, 40mm bore size, 75mm stroke, and trunnion mount.
Specifications
- Series: CA1/CA2 TIE-ROD CYLINDER
- Type: ACTUATOR
- Bore Size: 40mm
- Action Type: Double Acting
- Stroke: 75mm
- Mounting Type: Trunnion Mount
- Rod Thread: M16x1.5
- Port Size: Rc1/8
- Auto Switch: Yes
- Cushion Type: Rubber
- Operating Pressure: 0.1 to 1.0 MPa
- Operating Temperature: -10 to 60 degrees C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
