SMC CDG1BN40-150 AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDG1BN40-150
IMS Product Code: 1787583
Packaging: Sold Individually
Description:

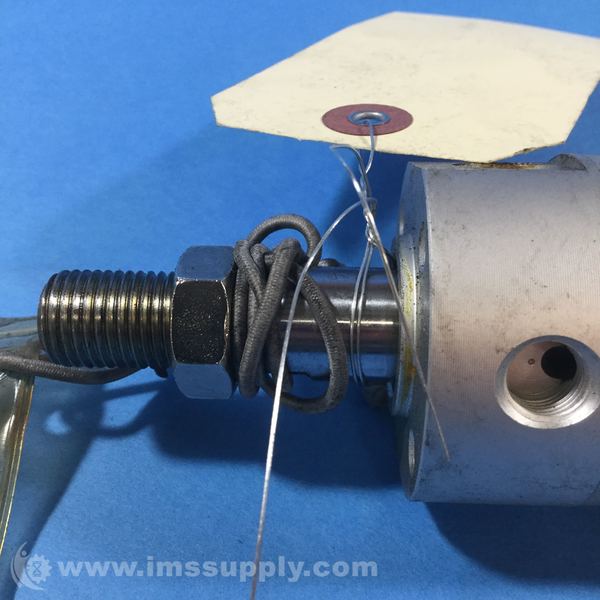

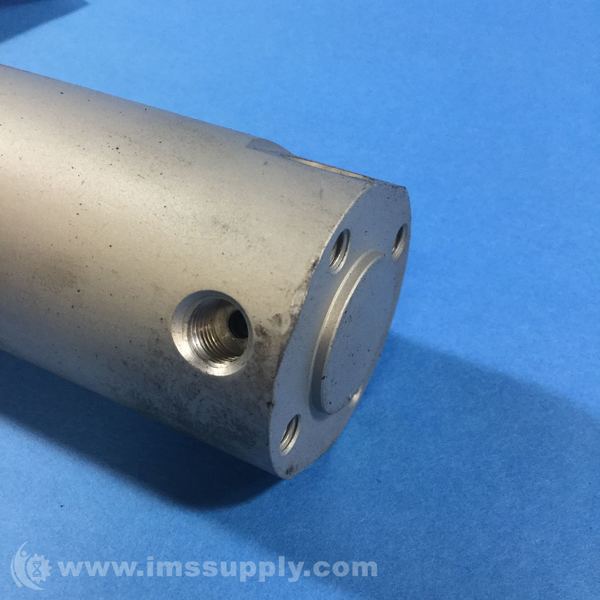

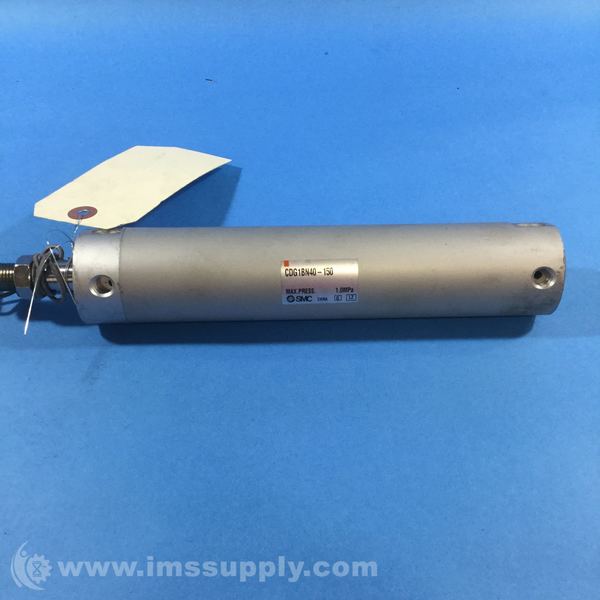

SMC CDG1BN40-150 Air Cylinder
Double-acting round body repairable air cylinder with aluminum body and rubber bumper cushion.
Specifications
- Body Material: Aluminum
- Bore Diameter: 40 mm
- Cushion Type: Rubber Bumper
- Maximum Operating Pressure: +1 Mpa
- Minimum Operating Pressure: +0.05 MPa
- Mounting Type: Basic
- Operating Pressure Range: +0.05 to +1 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Options Included: Magnetized, Switch Ready
- Overall Length: 280 mm
- Overall Width: 47 mm
- Piston Action: Double-Acting
- Port Gender: Female
- Port Size: 1/8 BSPT
- Port Thread Standard: BSPT
- Proof Pressure: +1.5 MPa
- Rod Gender: Male
- Rod Size: M14x1.5
- Rod Thread Standard: ISO
- Rod Type: Single Rod
- Standards Met: JIS Class 2
- Stroke: 150 mm
- Weight: 2.04141 lb
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
