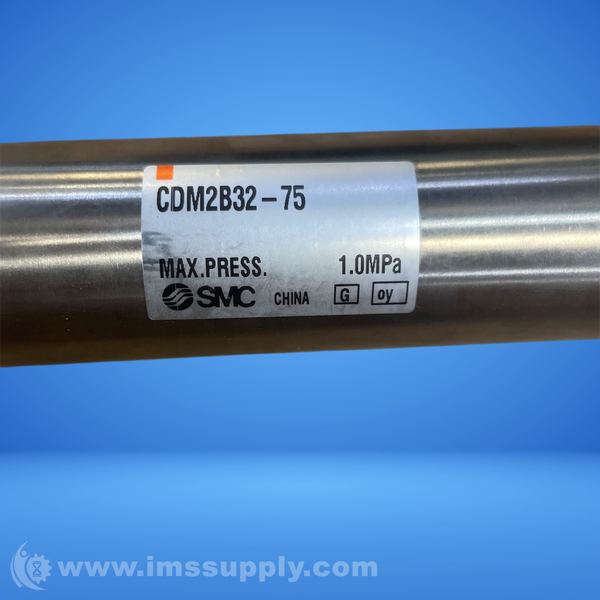

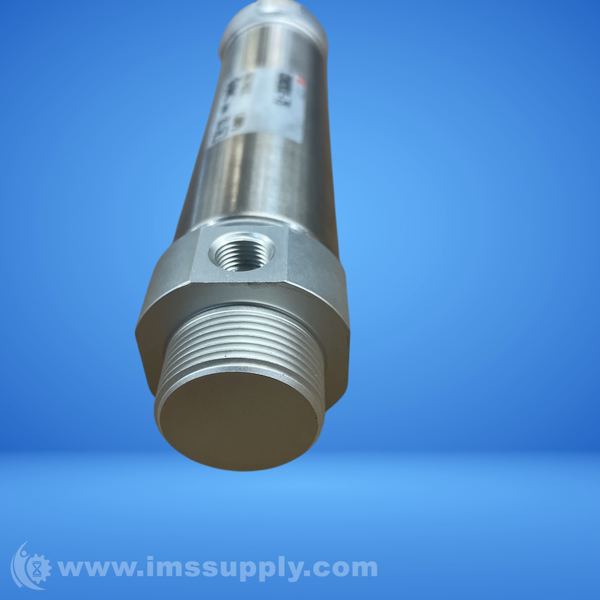

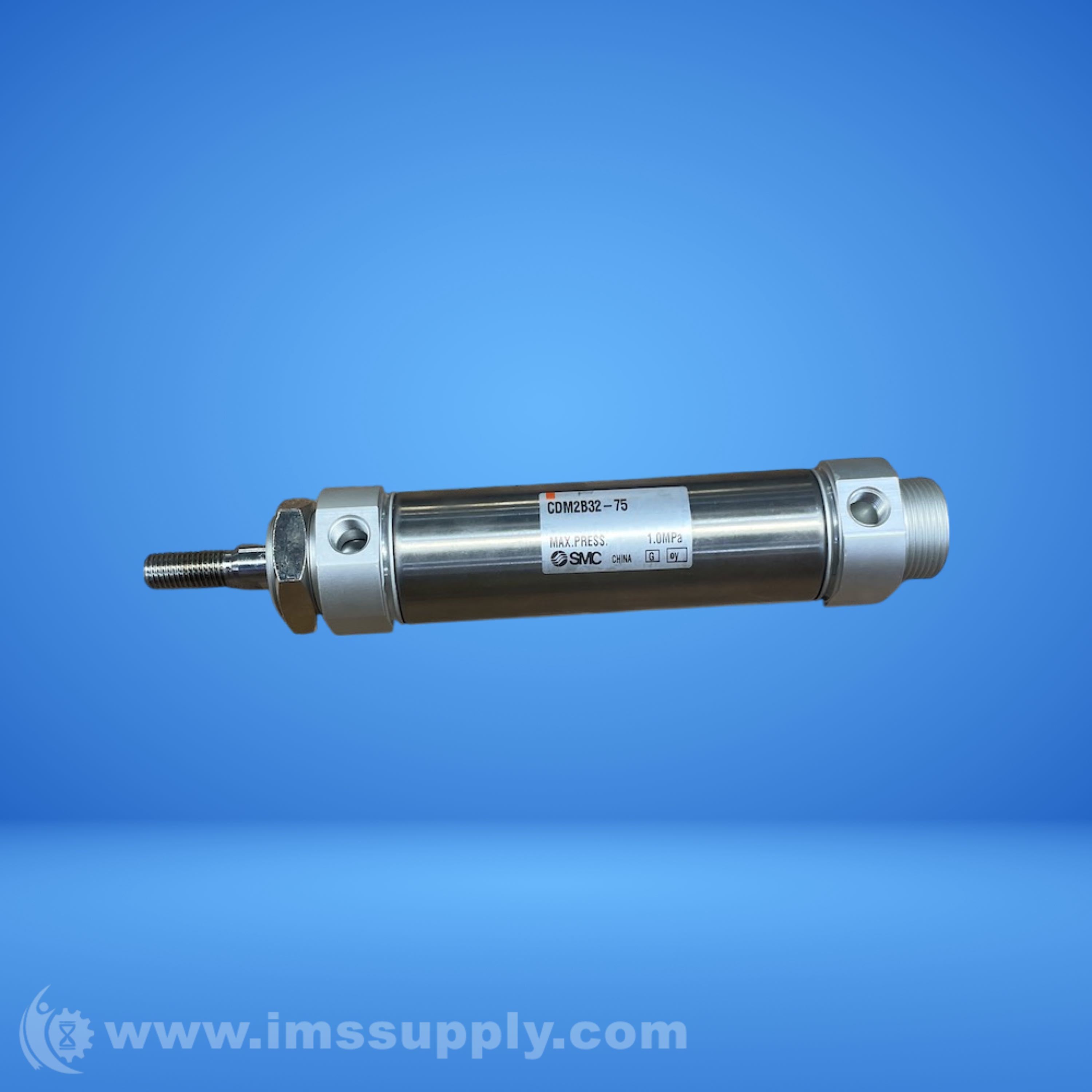

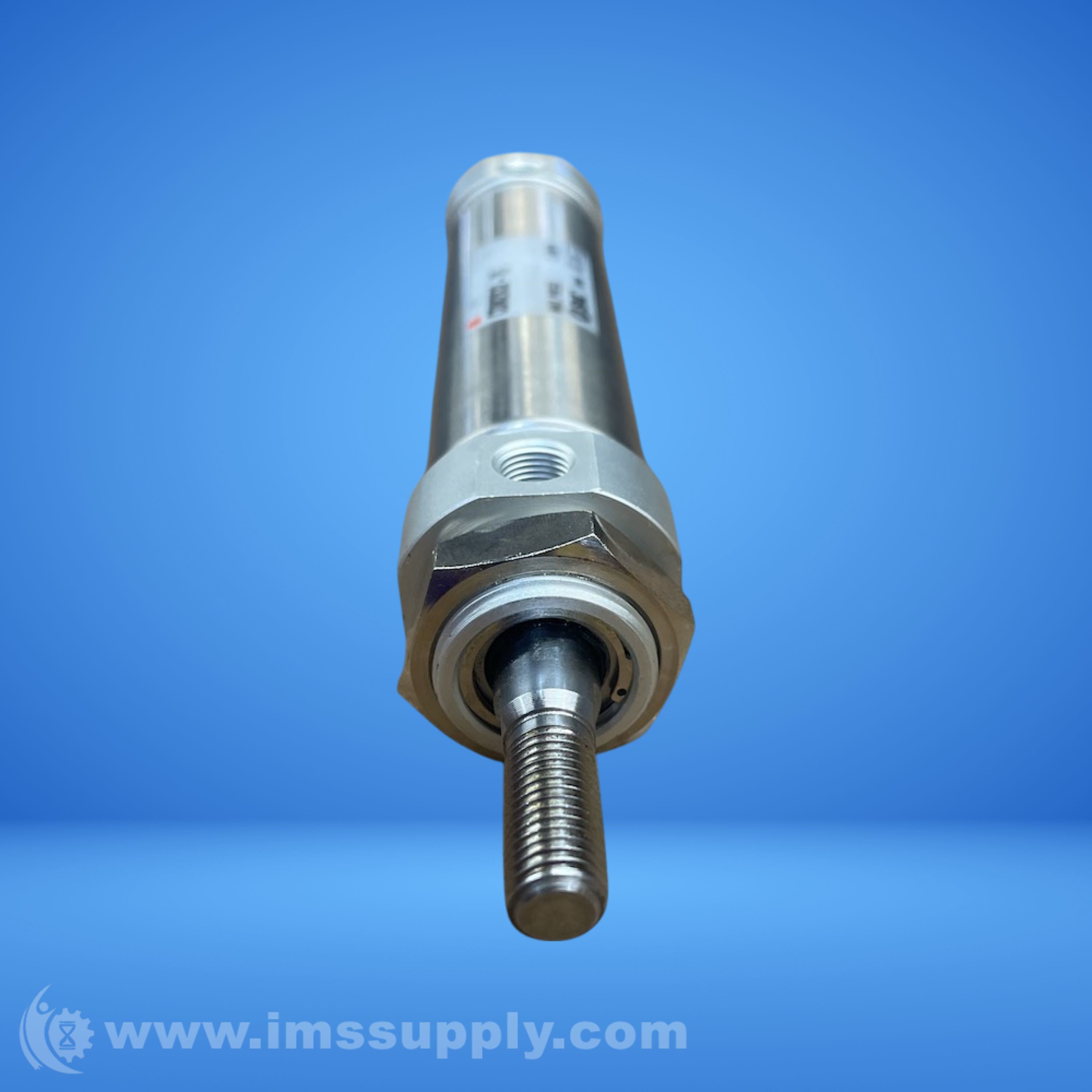

SMC CDM2B32-75 DOUBLE-ACTING AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDM2B32-75
IMS Product Code: 2127386
Packaging: Sold Individually
Description:
SMC CDM2B32-75 Double-Acting Air Cylinder
Double-acting air cylinder with stainless steel body, 32 mm bore diameter, 75 mm stroke, and double-acting piston action. Features rubber bumper cushion type and basic mount mounting type.
Specifications
- Body Material: Stainless Steel
- Bore Diameter: 32 mm
- Cushion Type: Rubber Bumper
- Mounting Type: Basic Mount
- Minimum Operating Pressure: +0.05 MPa
- Operating Pressure Range: +0.05 to +1 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Piston Action: Double-Acting
- Port Gender: Female
- Port Size: 1/8 BSPT
- Port Thread Standard: BSPT
- Pull Force At 100 Psi: 484 N
- Push Force At 100 Psi: 563 N
- Rod Gender: Male
- Rod Size: M10x1.25
- Rod Thread Standard: ISO
- Rod Type: Single Rod
- Series: CM2
- Stroke: 75 mm
- Weight: 0.94829 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
