SMC CDM2QT25-100B-B53LS ROTARY CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDM2QT25-100B-B53LS
IMS Product Code: 1793424
Packaging: Sold Individually
Description:

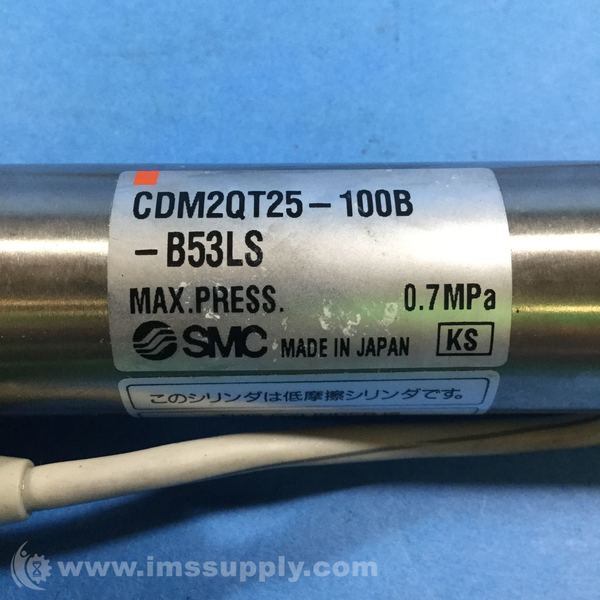

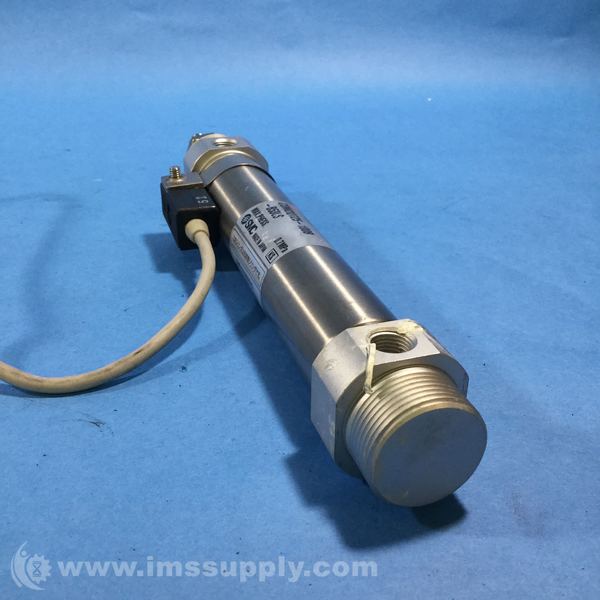

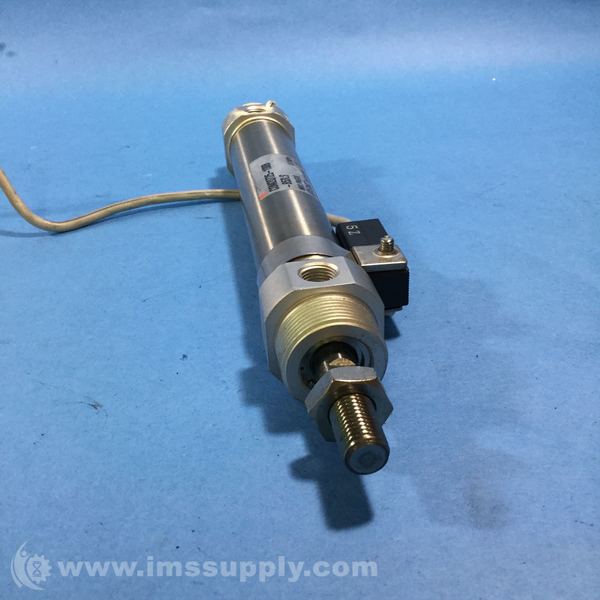

SMC CDM2QT25-100B-B53LS Rotary Cylinder
SMC CDM2QT25-100B-B53LS is a compact rotary cylinder with low friction design. It features a round body and is part of the CM2/CM3 series.
Specifications
- Manufacturer: SMC
- Series: CDM2
- Bore Size: 25mm
- Rotation Angle: 100 degrees
- Body Option: B53
- Sensor Option: With Sensor
- Port Location: Side
- Action: Double Acting
- Fluid: Air
- Operating Pressure: 0.05 to 0.7 MPa
- Ambient Temperature: -10 to 60 C
- Piston Speed at 0.5 MPa: 50 to 300 mm/s
- Cushion: Rubber bumper
- Mounting Type: Axial foot
- Tube Inner Diameter: 25 mm
- Stroke: 100 mm
- Rod Diameter: 12 mm
- Rod Thread: M5
- Sensor Switch: D-M9N
- Auto Switch: D-M9N
- Maximum Pressure: 0.7 MPa
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
