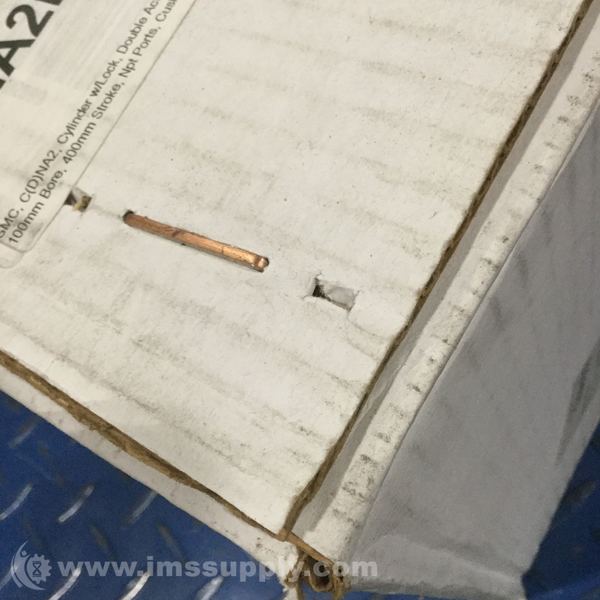

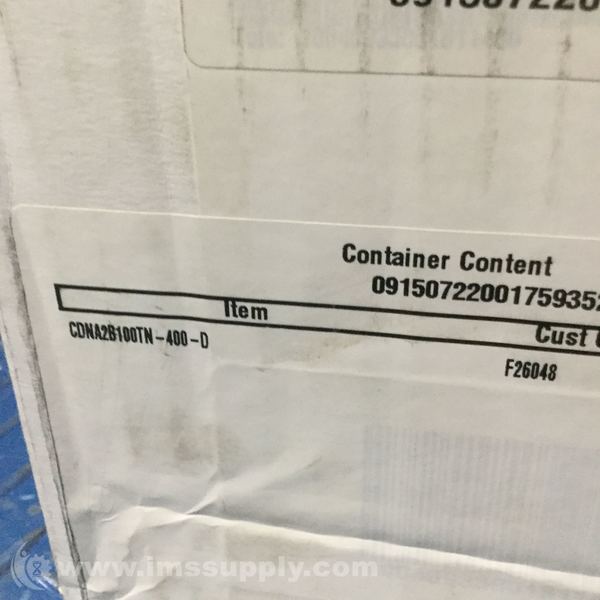

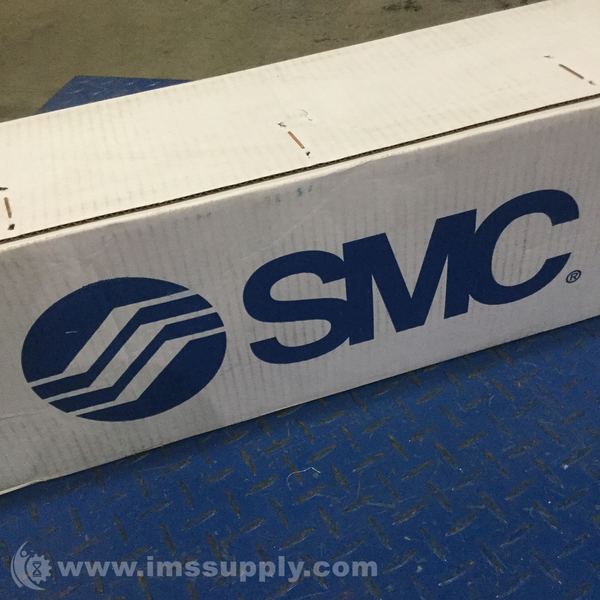

SMC CDNA2B100TN-400-D TIE ROD CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDNA2B100TN-400-D
IMS Product Code: 1837351
Packaging: Sold Individually
Description:
SMC CDNA2B100TN-400-D Tie Rod Cylinder
Double acting, tie rod cylinder with power lock feature. Bore size: 100 mm, stroke length: 400 mm. Designed for mid-stroke stops and emergency stops.
Specifications
- Bore Size: 100 mm
- Stroke Length: 400 mm
- Weight: 35.49442 lb
- Operating Temperature: -10°C to 60°C (without freezing)
- Port Size: G 1/2 (conforming to ISO 228-1 standards)
- Piston Speed: 50 to 500 mm/s
- Mounting Options: Basic, axial foot, rod flange, head flange, single clevis, double clevis, center trunnion
- Pressure Range: 0.15 to 1.0 MPa
- Maximum Locking Pressure: 0.5 MPa
