SMC CDNGBN32-50-D CYLINDER WITH LOCK
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDNGBN32-50-D
IMS Product Code: 2144714
Packaging: Sold Individually
Description:

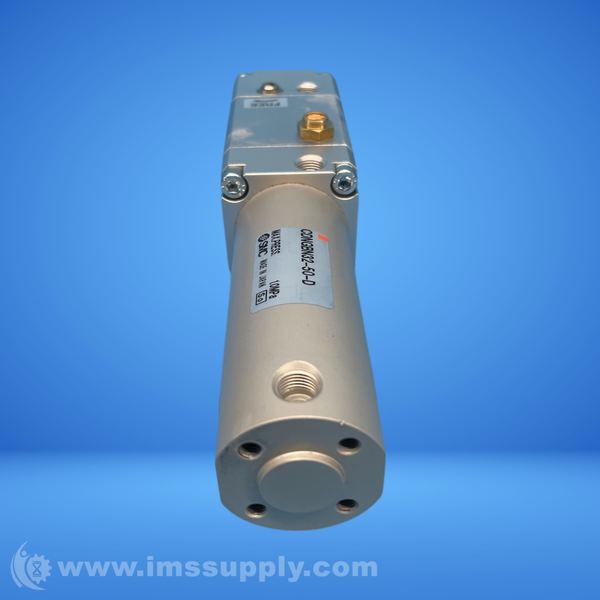

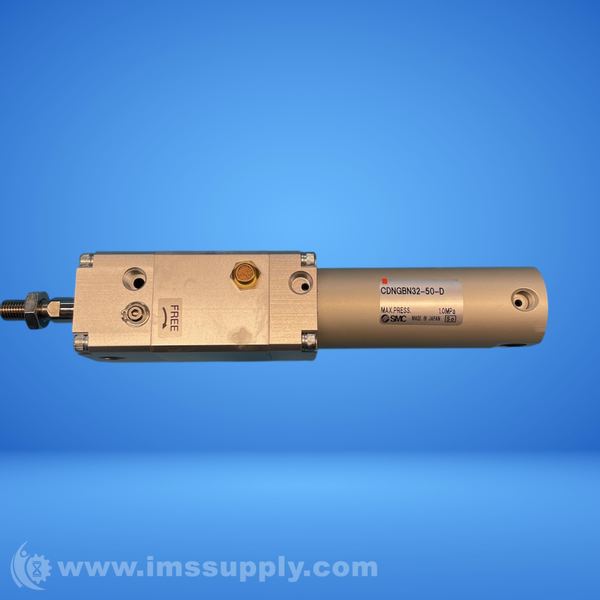

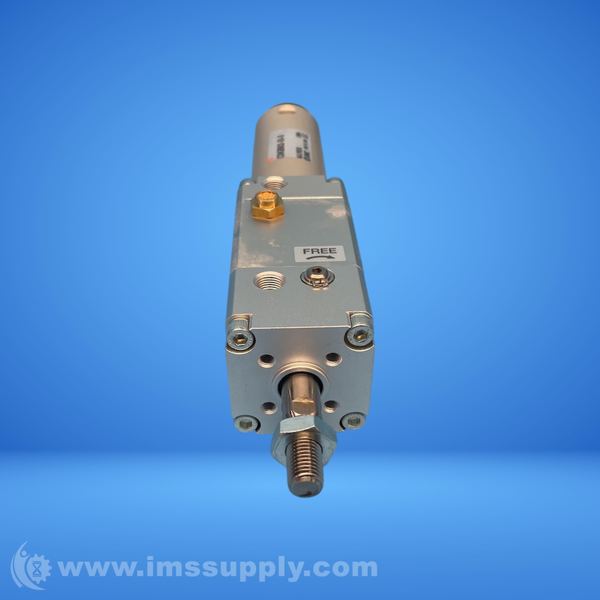

SMC CDNGBN32-50-D Cylinder With Lock
Double acting cylinder with lock, 32mm diameter, suitable for intermediate stops and emergency stops.
Specifications
- Tube Inner Diameter: 32 mm
- Proof Pressure: 1.5 MPa
- Maximum operating pressure: 1.0 MPa
- Minimum operating pressure: 0.08 MPa
- Piston Speed: 50 to 1,000 mm/s
- Ambient Temperature and Operating Fluid Temperature: -10°C to 70°C (no freezing)
- Cushioning: Rubber bumper, air cushion
- Locking Action: Spring locking (exhaust locking)
- Unlocking pressure: 0.25 MPa or more
- Locking Starting Pressure: 0.20 MPa or less
- Operating Pressure Range: 0.25 to 1.0 MPa
- Locking Direction: Bidirectional
- Holding Force (Maximum Static Load): 550 N
- Weight: 1.09 kg
- Country of Origin: JP
- Series: CNG
- Product Type: Locking Air Cylinders
- Lubrication: Not required (non-lubricated)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
