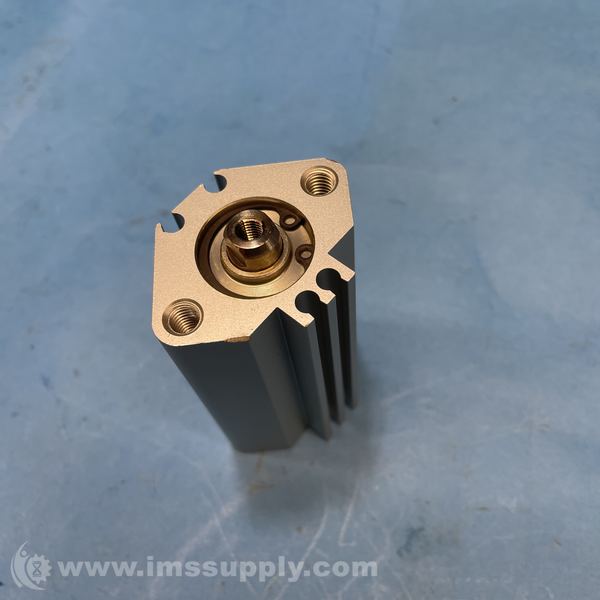

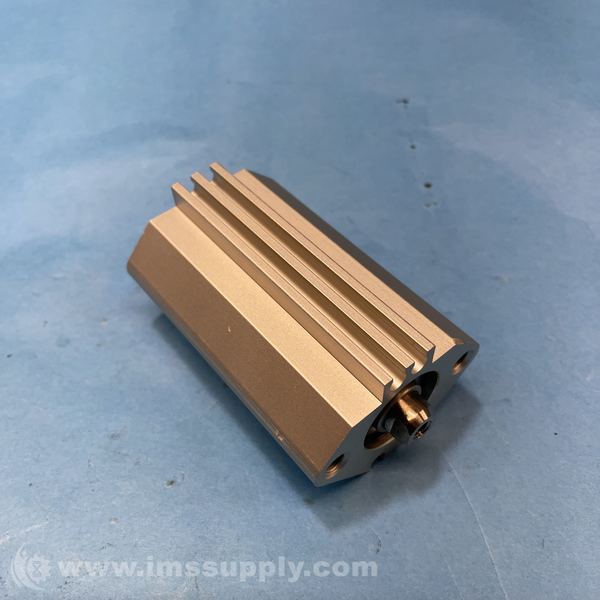

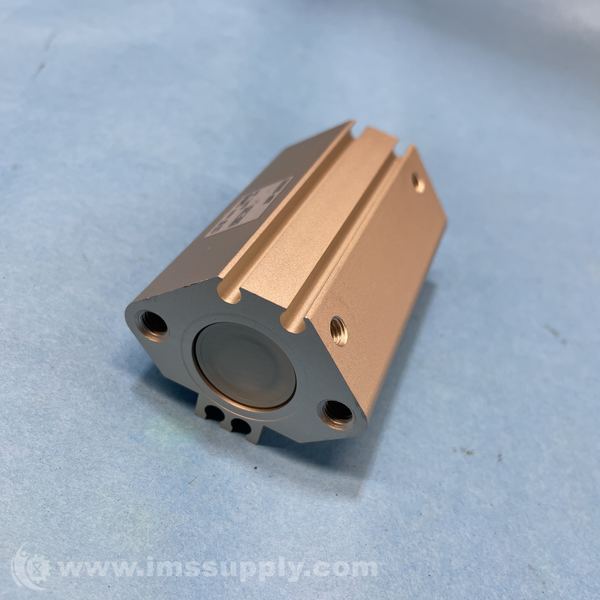

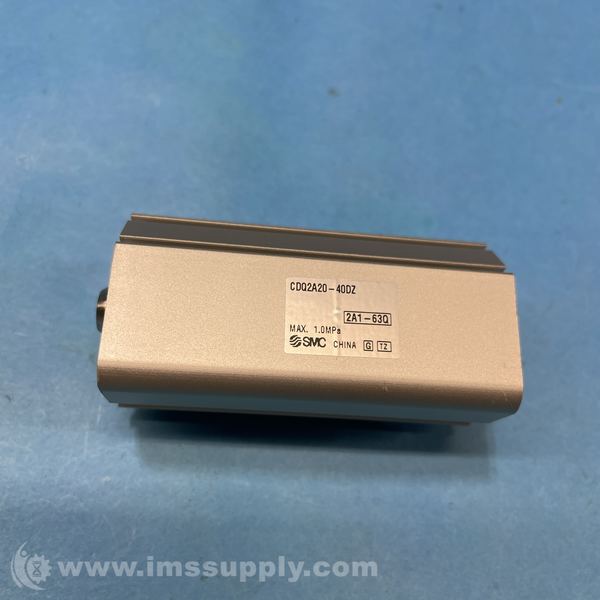

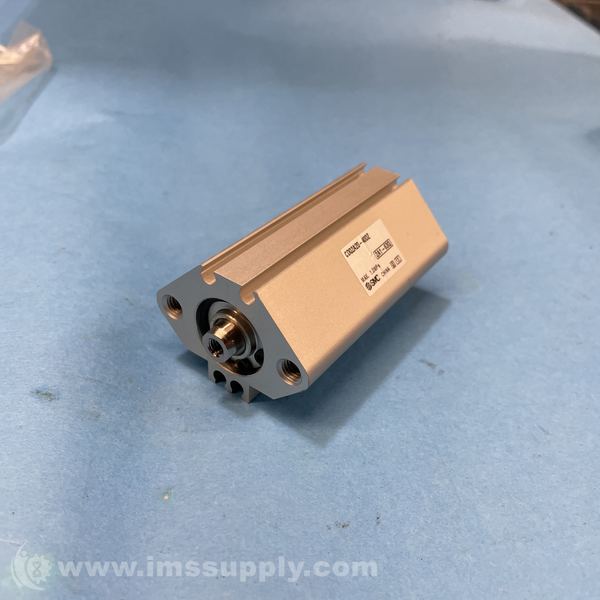

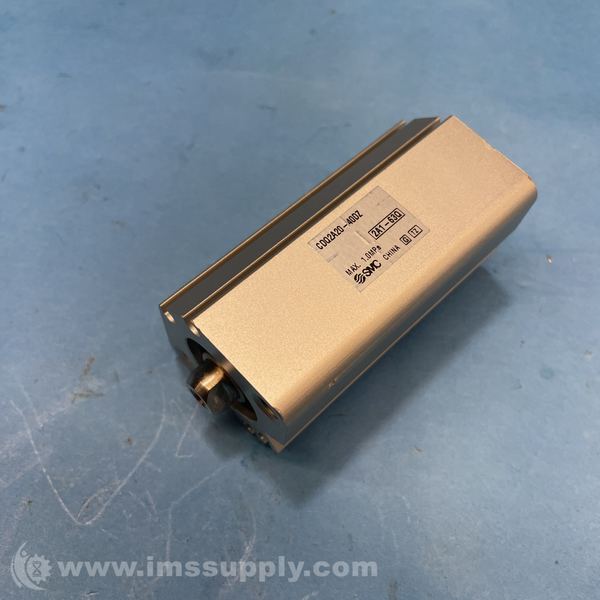

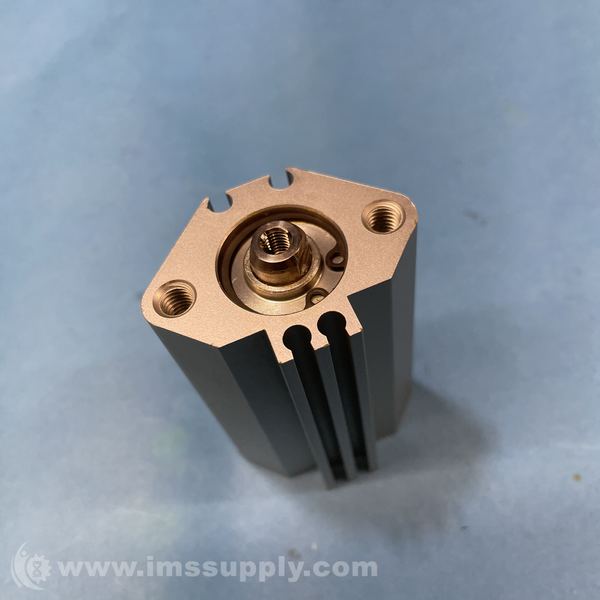

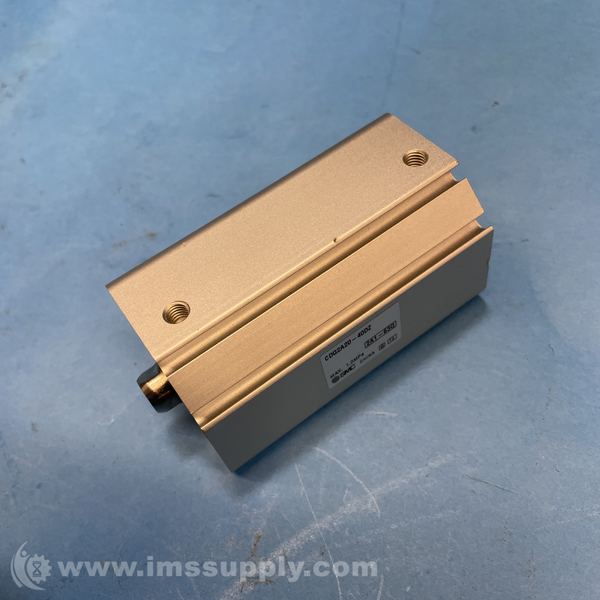

SMC CDQ2A20-40DZ COMPACT AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2A20-40DZ
IMS Product Code: 2135234
Packaging: Sold Individually
Description:
SMC CDQ2A20-40DZ Compact Air Cylinder
Double acting, single rod, compact cylinder with 20 mm bore diameter and 40 mm stroke length. Features a short overall length design and is switch ready with a magnetized piston. Made of aluminum with an anodized finish.
Specifications
- Bore Diameter: 20 mm
- Stroke: 40 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: M8x1.25 Female ISO
- Port Size: M5x0.8
- Cushion Type: None
- Options Included: Magnetized, Switch Ready
- Operating Pressure Range: +0.05 to +1 MPa
- Push Force At 100 Psi: 220 N
- Pull Force At 100 Psi: 165 N
- Operating Temperature Range: -10 to +60 degrees C
- Mounting Type: Both Ends Tapped
- Series: CQ2-Z
- Body Material: Aluminum
- Body Material Finish: Anodized
- Piston Material: Aluminum
- Piston Material Finish: Chromate Coated
- Piston Rod Material: Stainless Steel
- Piston Rod Material Grade: 304
- Weight: 179 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
