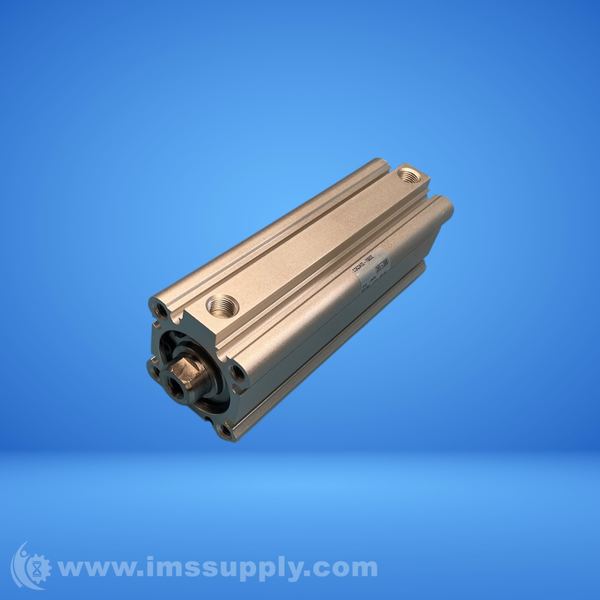

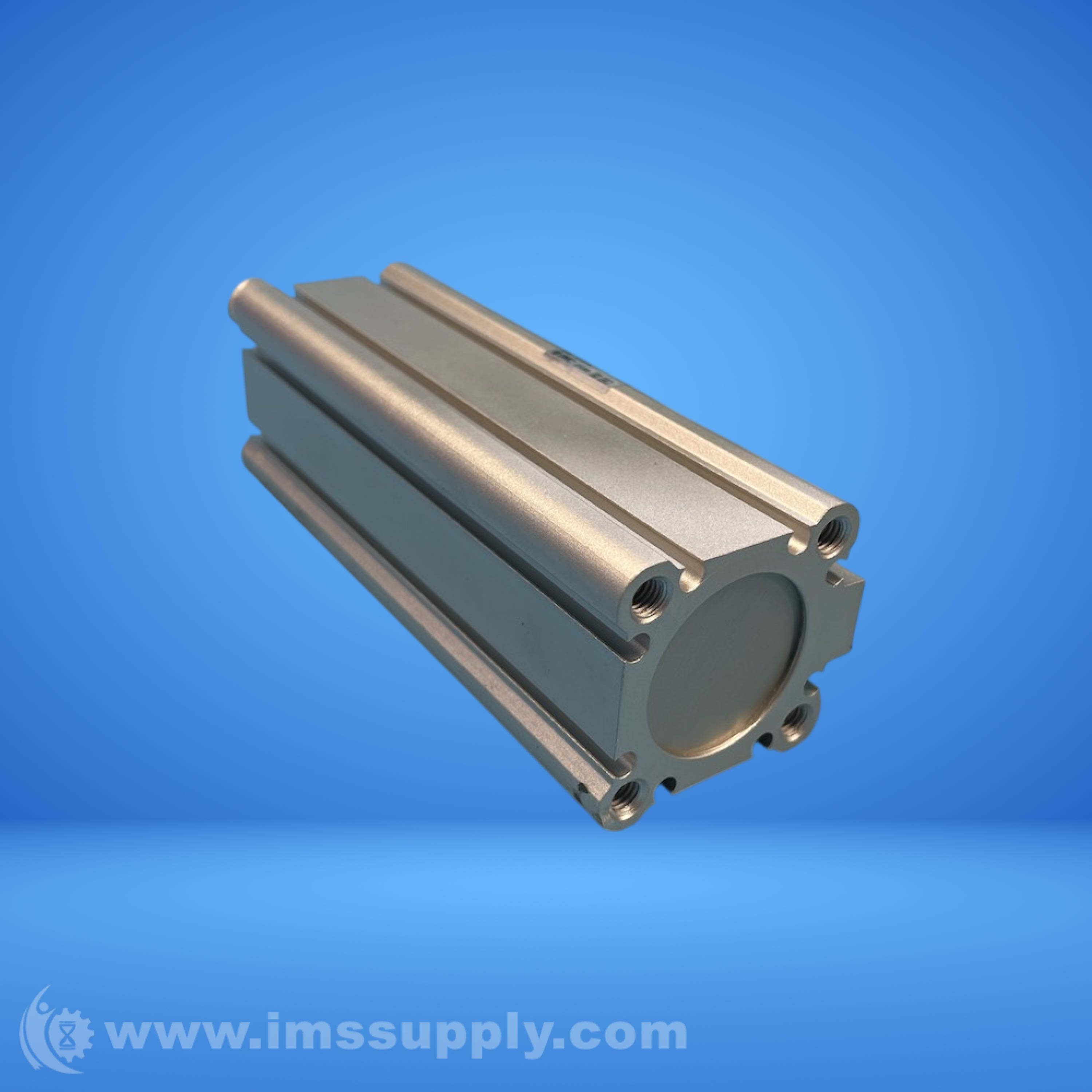

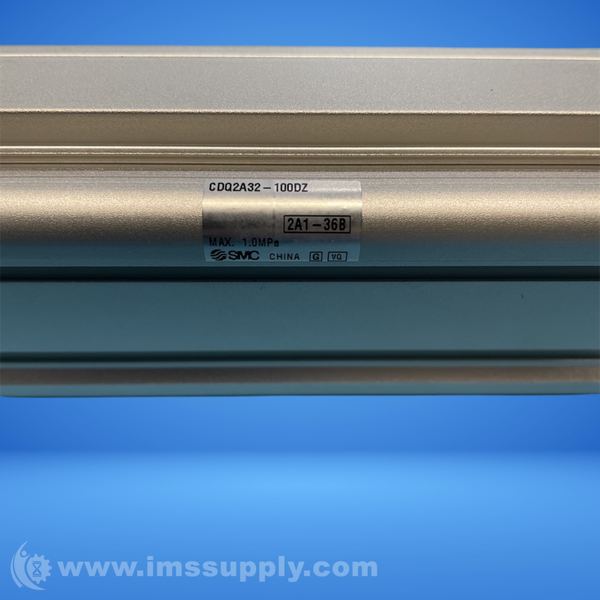

SMC CDQ2A32-100DZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2A32-100DZ
IMS Product Code: 2150047
Packaging: Sold Individually
Description:
SMC CDQ2A32-100DZ Compact Cylinder
Double acting, single rod, compact cylinder
Specifications
- Bore Diameter: 32 mm
- Stroke: 100 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: M14x1.5 Female ISO
- Port Size: 1/8 BSPT
- Cushion Type: None
- Options Included: Magnetized, Switch Ready
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.05 to +1 MPa
- Push Force At 100 Psi: 563 N
- Pull Force At 100 Psi: 422 N
- Operating Temperature Range: -10 to +60 degrees C
- Standards Met: JIS
- Overall Length: 140 mm
- Overall Width: 49.5 mm
- Overall Height: 45 mm
- Maximum Operating Pressure: +1 Mpa
- Minimum Operating Pressure: +0.05 MPa
- Port Gender: Female
- Port Thread Standard: BSPT
- Rod Gender: Female
- Mounting Type: Both Ends Tapped
- Rod Size: M14x1.5
- Rod Thread Standard: ISO
- Series: CQ2-Z
- Product Type: Compact Air Cylinders
- Weight: 564.2 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
