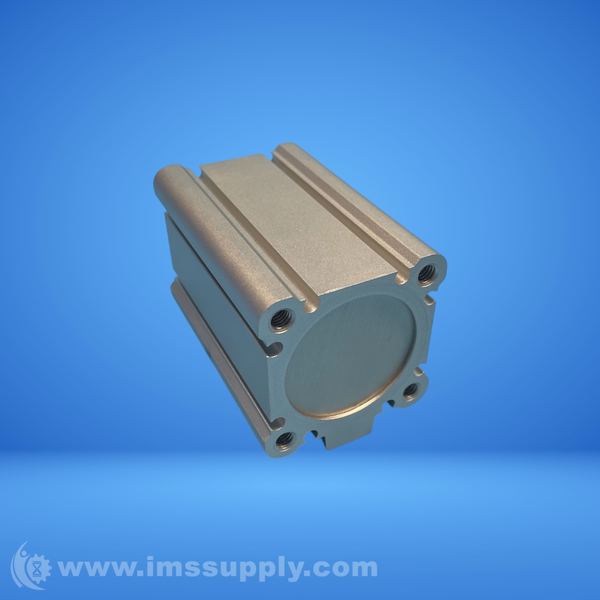

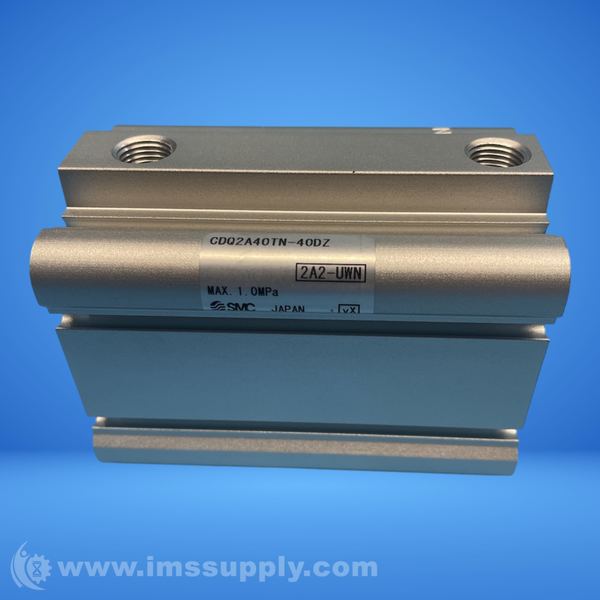

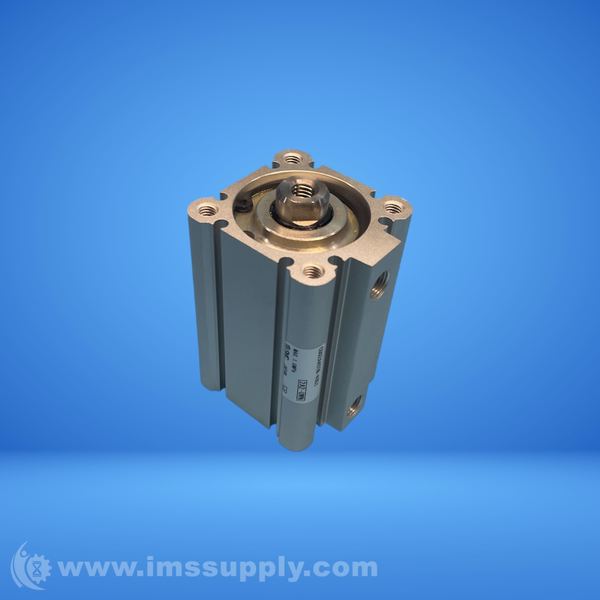

SMC CDQ2A40TN-40DZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2A40TN-40DZ
IMS Product Code: 2150420
Packaging: Sold Individually
Description:
SMC CDQ2A40TN-40DZ Compact Cylinder
Double-acting compact cylinder with 40mm bore and 40mm stroke, made of aluminum with chrome-plated carbon steel rod.
Specifications
- Bore Diameter: 40 mm
- Stroke Length: 40 mm
- Cylinder Action: Double Acting
- Cylinder Type: Compact
- Body Material: Aluminum
- Piston Rod Material: Carbon Steel
- Mounting Type: Tapped Hole
- Air Inlet Type: NPT
- Inlet Size: 1/8 in
- Rod Diameter: 16 mm
- Rod Thread Size: M8 x 1.25
- Overall Height: 52 mm
- Overall Width: 57 mm
- Extended Length: 76.5 mm
- Retracted Length: 36.5 mm
- Weight: 420 g
- Maximum Operating Pressure: 145 MPa
- Minimum Operating Pressure: 7.25 MPa
- Maximum Operating Temperature: 140 Degrees F
- Minimum Operating Temperature: 14 Degrees F
- Series: CQ2
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
