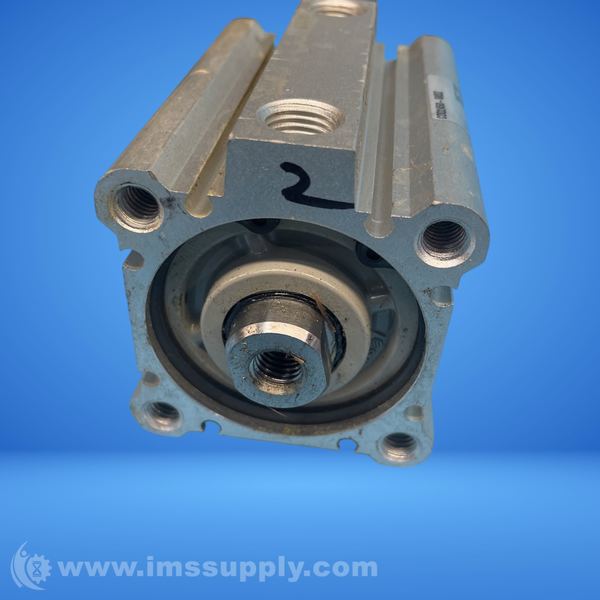

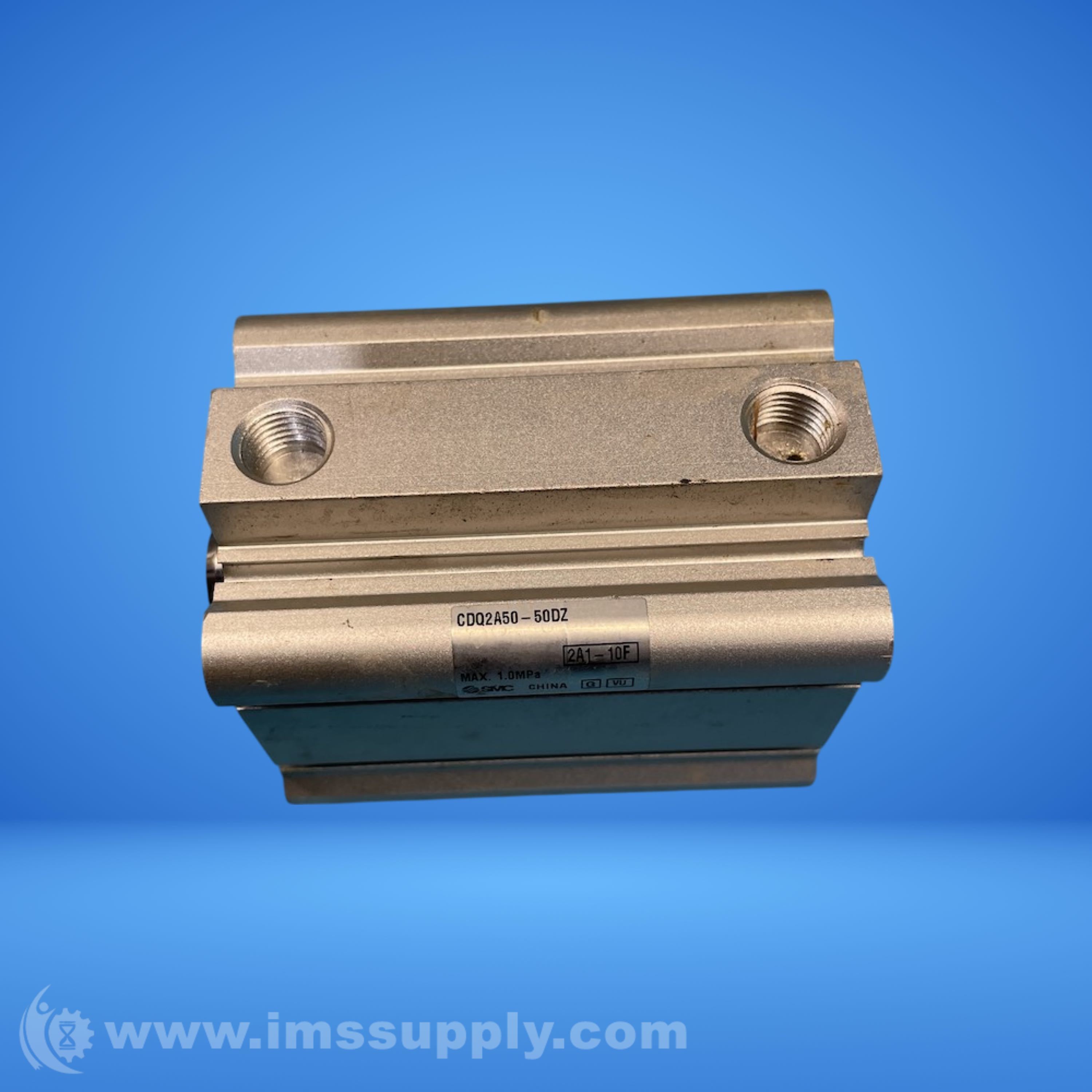

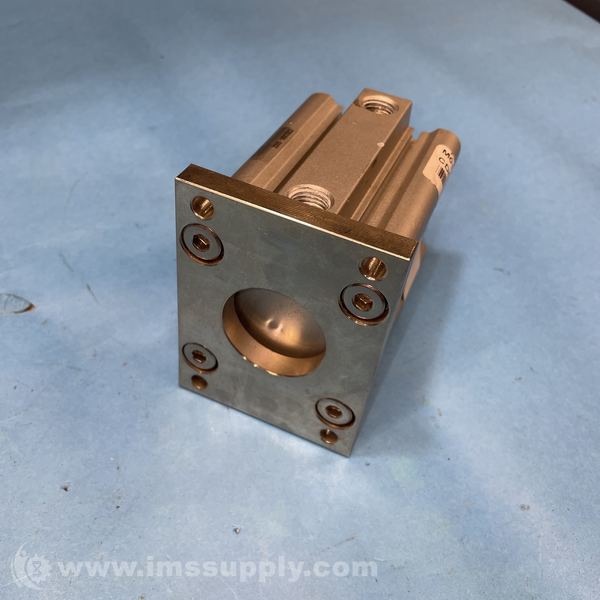

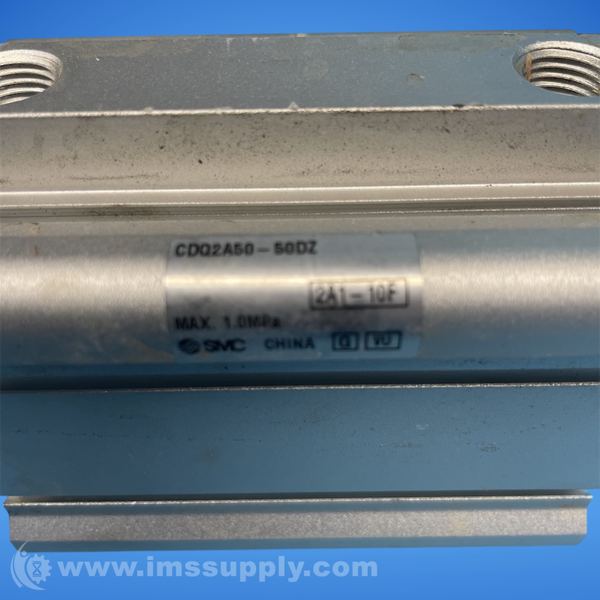

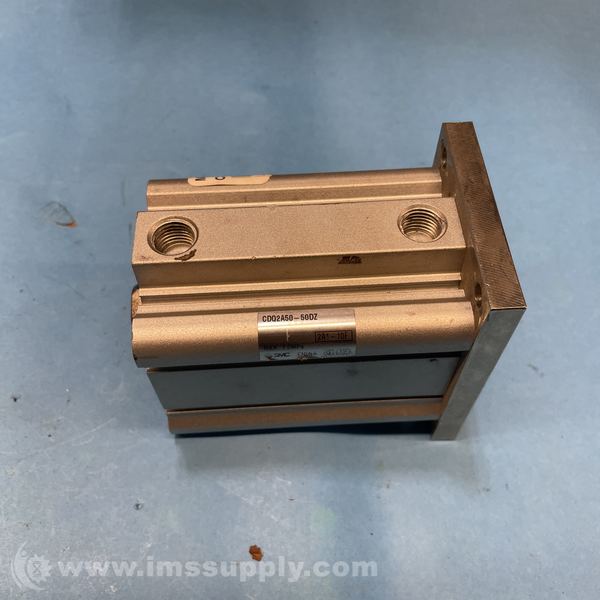

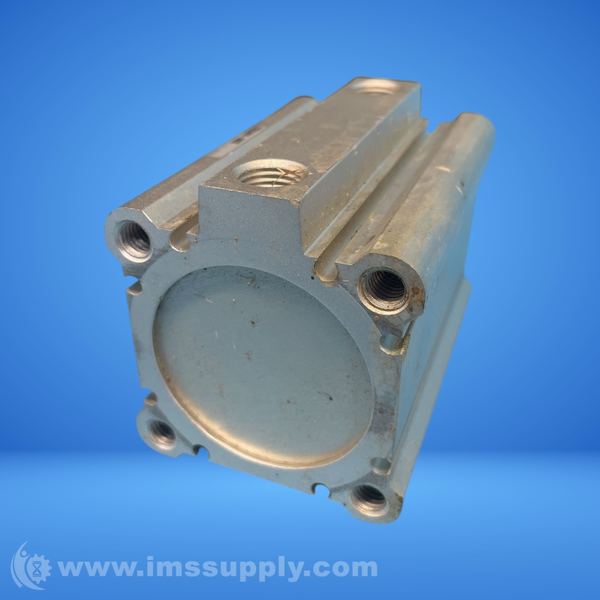

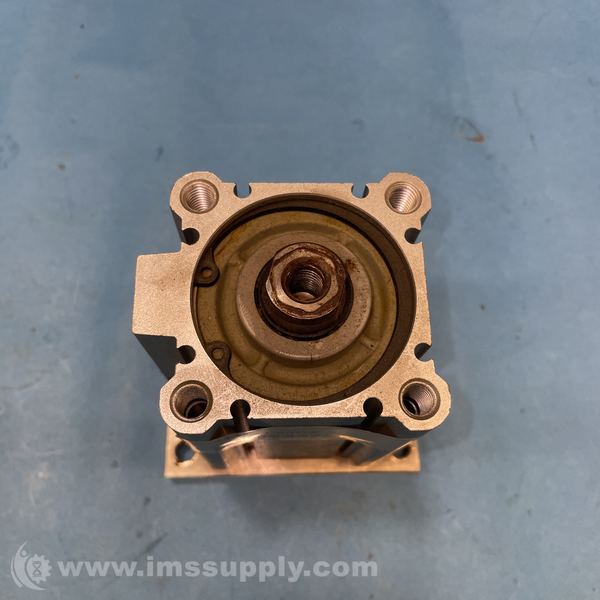

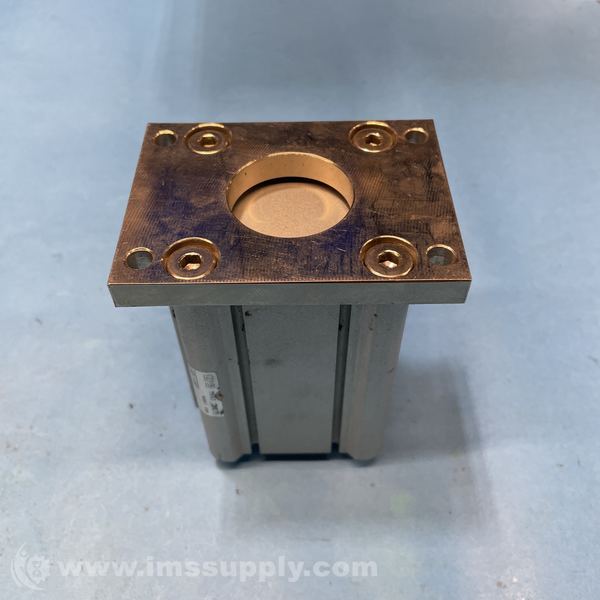

SMC CDQ2A50-50DZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2A50-50DZ
IMS Product Code: 2135266
Packaging: Sold Individually
Description:
SMC CDQ2A50-50DZ Compact Cylinder
Double acting, single rod, compact cylinder. Standard double acting, single rod version of the CQ2 compact cylinder.
Specifications
- Bore Diameter: 50 mm
- Stroke: 50 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Port Size: 1/4 BSPT
- Cushion Type: None
- Options Included: Magnetized, Switch Ready
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.05 to +1 MPa
- Push Force At 100 Psi: 1370 N
- Pull Force At 100 Psi: 1150 N
- Operating Temperature Range: -10 to +60 degrees C
- Standards Met: JIS
- Overall Length: 98.5 mm
- Overall Width: 71 mm
- Overall Height: 64 mm
- Cylinder Series: CQ2
- Maximum Operating Pressure: +1 Mpa
- Minimum Operating Pressure: +0.05 MPa
- Port Gender: Female
- Port Thread Standard: BSPT
- Rod Gender: Female
- Mounting Type: Both Ends Tapped
- Rod Size: M18x1.5
- Rod Thread Standard: ISO
- Series: CQ2-Z
- Product Type: Compact Air Cylinders
- Weight: 1.68693 lb
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
