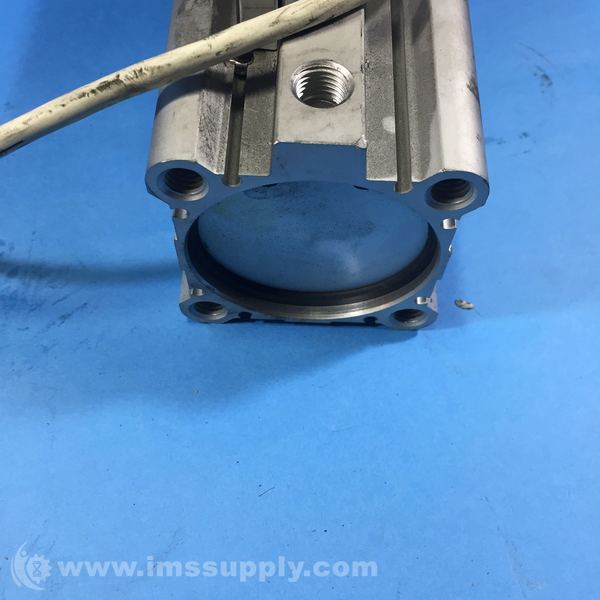

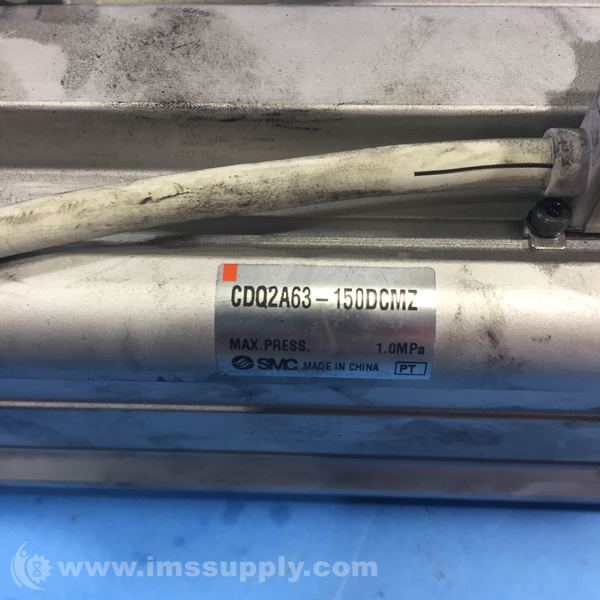

SMC CDQ2A63-150DCMZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2A63-150DCMZ
IMS Product Code: 1825480
Packaging: Sold Individually
Description:
SMC CDQ2A63-150DCMZ Compact Cylinder
Double acting, single rod, compact cylinder with 63mm bore and 150mm stroke. Available with male or female piston rod threads and auto switch mounting on any of 4 surfaces.
Specifications
- Bore: 63mm
- Stroke: 150mm
- Action: Double Acting
- Fluid: Air
- Operating Pressure: 0.1 to 1.0 MPa
- Ambient Temperature: -10 to 60 degrees C
- Cushion: Air cushion
- Mounting Type: Axial port/Trunnion mount
- Body Option: M (Rod End Male Thread)
- Magnet: D (built-in)
- Mounting: A (Both Ends Tapped)
- Port Thread Type: Rc
- Weight: 2.09 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 52 minutes.
