SMC CDQ2A80-15DFMZ COMPACT CYLINDER

Starting At: $125.00

Quick Overview

Manufactured By: SMC
Manufacturer Part Number: CDQ2A80-15DFMZ
IMS Product Code: 2134751
Packaging: Sold Individually

Description:

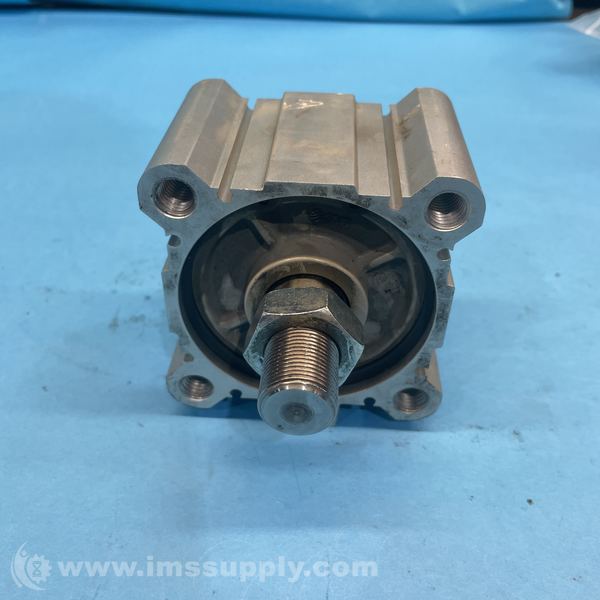

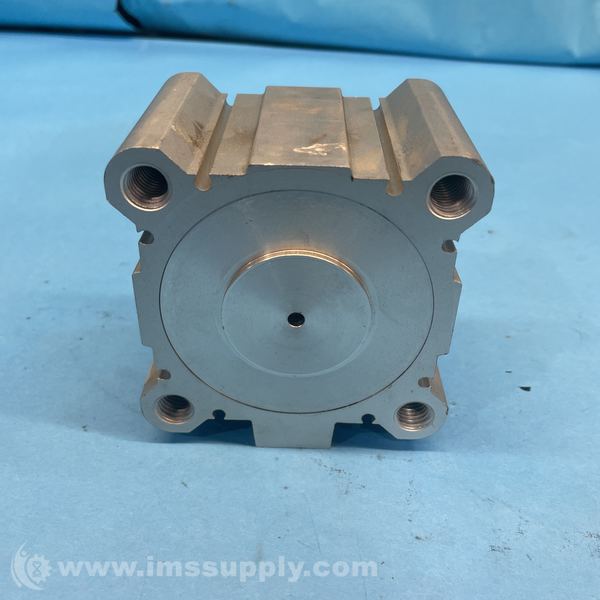

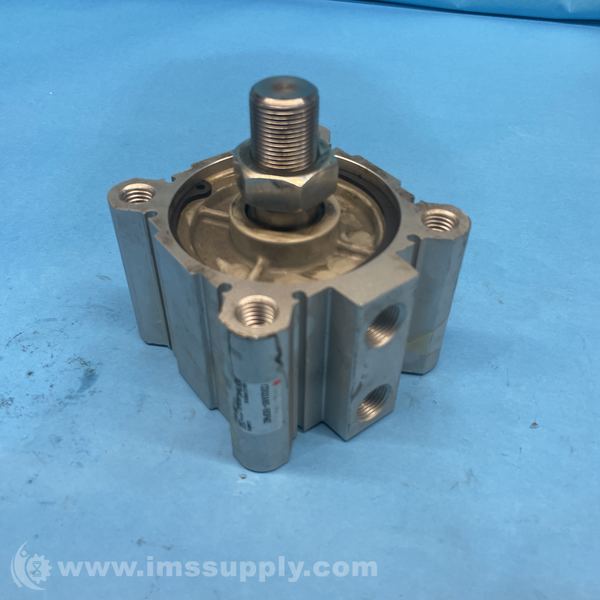

SMC CDQ2A80-15DFMZ Compact Cylinder

Standard double acting, single rod version of the CQ2 compact cylinder. The CQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.

Specifications

  • Magnet: D (Built-in)
  • Mounting: A (Both Ends Tapped)
  • Type: Standard
  • Bore Size: 80 mm
  • Port Thread Type: Rc (or M Thread for 16 & 20 Bore or 32 stroke 5mm)
  • Lube-retainer: Without Stable Lubrication Function
  • Stroke: 15
  • Body Option: FM [Rear Boss Mount + Rod End Male Thread]
  • Auto Switch Groove: Z [Auto Switch Mounting Grooves]
  • Mounting Bolt: None
  • Rod End Bracket: None
  • Auto Switch: No Switch
  • Lead Wire or Prewired Connector: 0.5 m or None in the Case of No Switch
  • Number: 2 pcs.
  • Rod End Options: None
  • Temperature Resistance: None
  • Low Speed: None
  • Made of Stainless Steel: None
  • Fluororubber Seal: None
  • Weight: 0.100000
  • HS-Code: 84123100


New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.

Availability: 1 In Stock

Ships today if ordered in the next 2 hours and 36 minutes.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of SMC. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
