SMC CDQ2B40-20DZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2B40-20DZ
IMS Product Code: 1830010
Packaging: Sold Individually
Description:

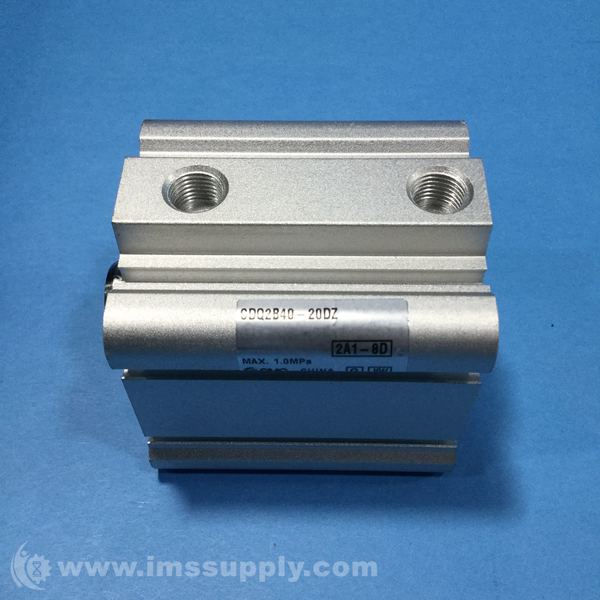

SMC CDQ2B40-20DZ Compact Cylinder
Double acting single rod compact pneumatic cylinder with aluminum body and through-hole mounting. 40mm bore diameter, 20mm stroke length.
Specifications
- Bore Diameter: 40 mm
- Stroke Length: 20 mm
- Cylinder Action: Double Acting
- Cylinder Type: Compact

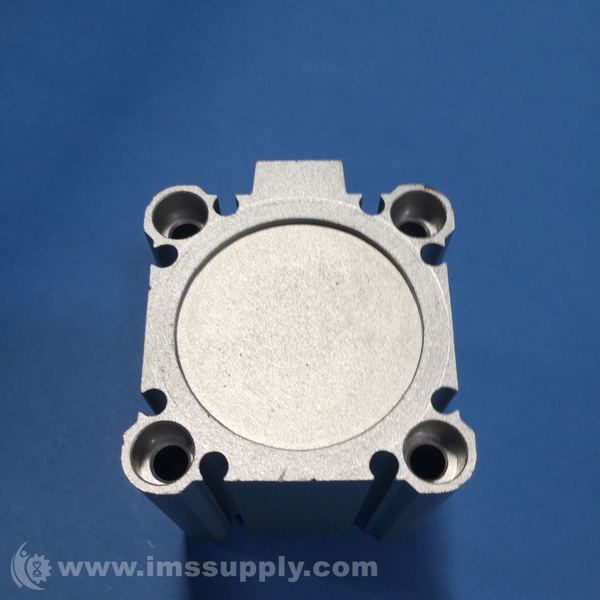

- Mounting Style: Through Hole
- Body Material: Aluminum

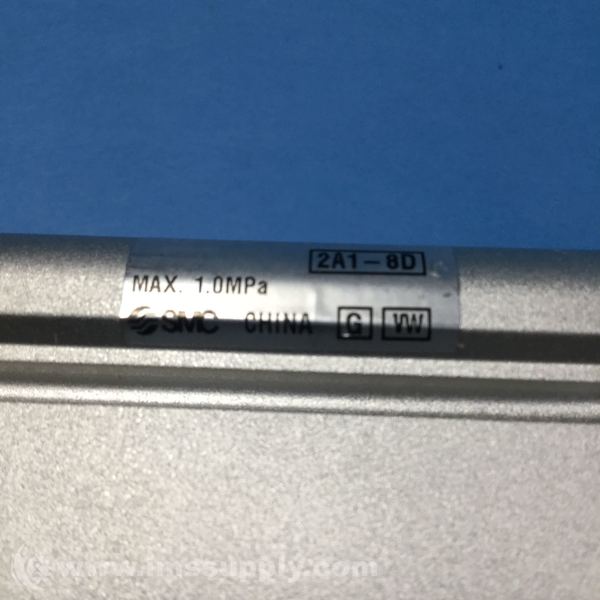

- Maximum Operating Pressure: 1 Mpa
- Minimum Operating Pressure: 0.05 MPa
- Rod Diameter: 16 mm

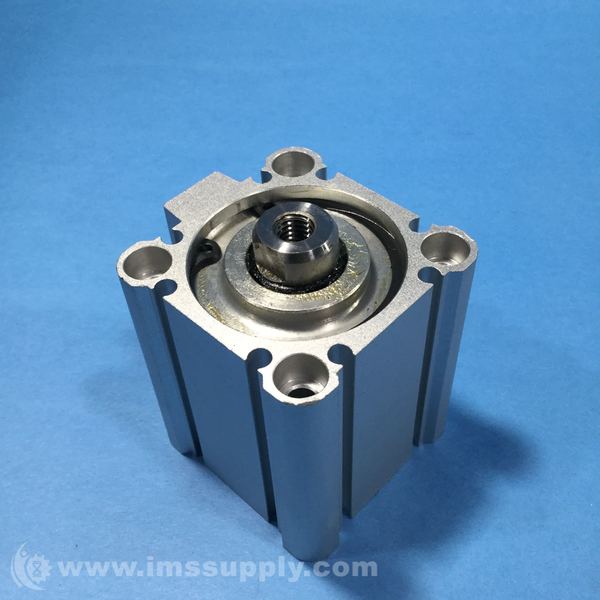

- Rod Thread Size: M8 x 1.25
- Piston Material: Aluminum
- Piston Material Finish: Chromate Coated
- Piston Rod Material: Carbon Steel
- Piston Rod Material Finish: Chrome Plated
- Maximum Operating Temperature: 60 degrees C
- Minimum Operating Temperature: -10 degrees C
- Overall Height: 52 mm
- Overall Width: 57 mm
- Overall Length: 66.5 mm
- Weight: 333 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
