SMC CDQ2B40-25DZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2B40-25DZ
IMS Product Code: 2157065
Packaging: Sold Individually
Description:

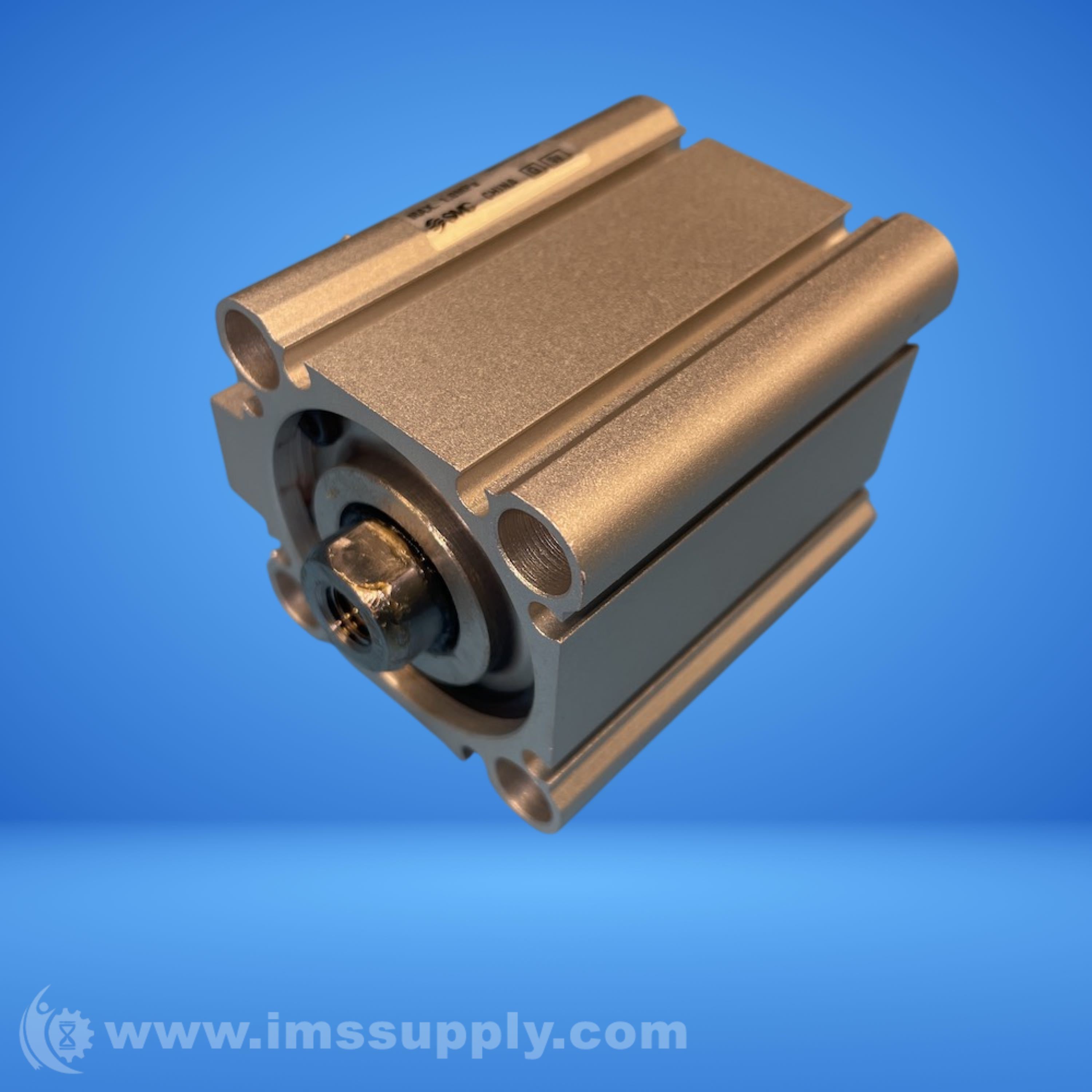

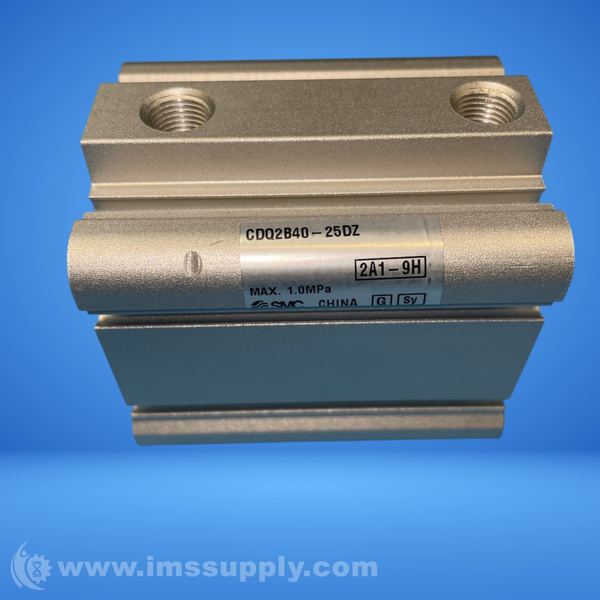

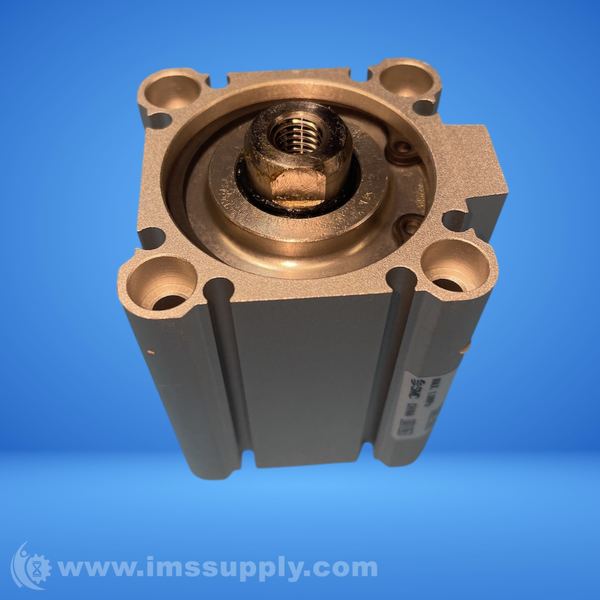

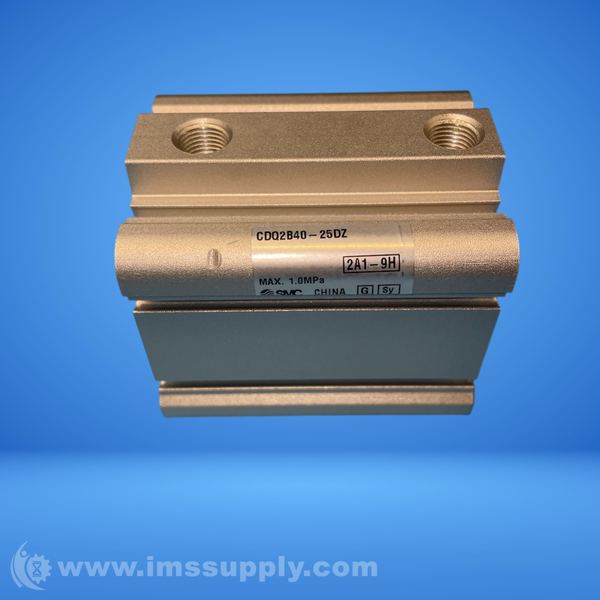

SMC CDQ2B40-25DZ Compact Cylinder
Double acting, single rod, compact pneumatic cylinder with 40mm bore and 25mm stroke. Standard version with built-in magnet and auto switch mounting grooves. Operating pressure 0.05-1.0 MPa.
Specifications
- Series: CQ2-Z
- Bore Diameter: 40 mm
- Stroke: 25 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: M14x1.5 Female ISO
- Port Size: 1/8 BSPT
- Cushion Type: None
- Options Included: Magnetized, Switch Ready
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.05 to +1 MPa
- Push Force At 100 Psi: 880 N
- Pull Force At 100 Psi: 739 N
- Operating Temperature Range: -10 to +60 degrees C
- Standards Met: JIS
- Overall Length: 71.5 mm
- Overall Width: 57 mm
- Overall Height: 52 mm
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.05 MPa
- Port Gender: Female
- Port Thread Standard: BSPT
- Rod Gender: Female
- Mounting Type: Through Hole
- Rod Thread Standard: ISO
- Type: Pneumatic
- Weight: 0.798 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
