SMC CDQ2B40TN-10DZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2B40TN-10DZ
IMS Product Code: 1979354
Packaging: Sold Individually
Description:

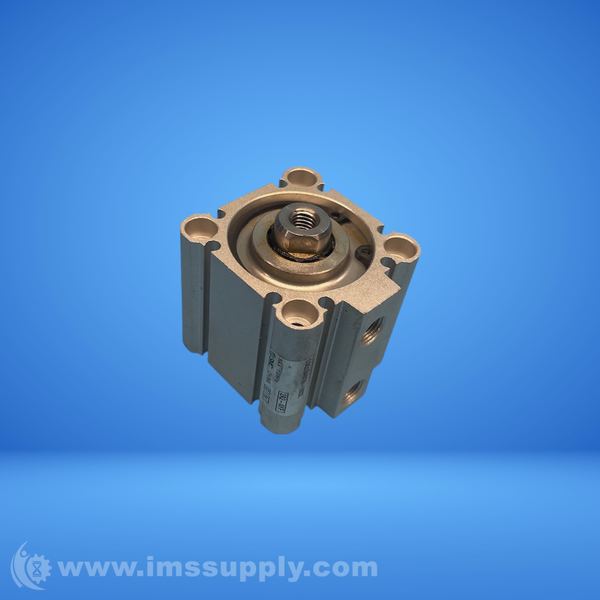

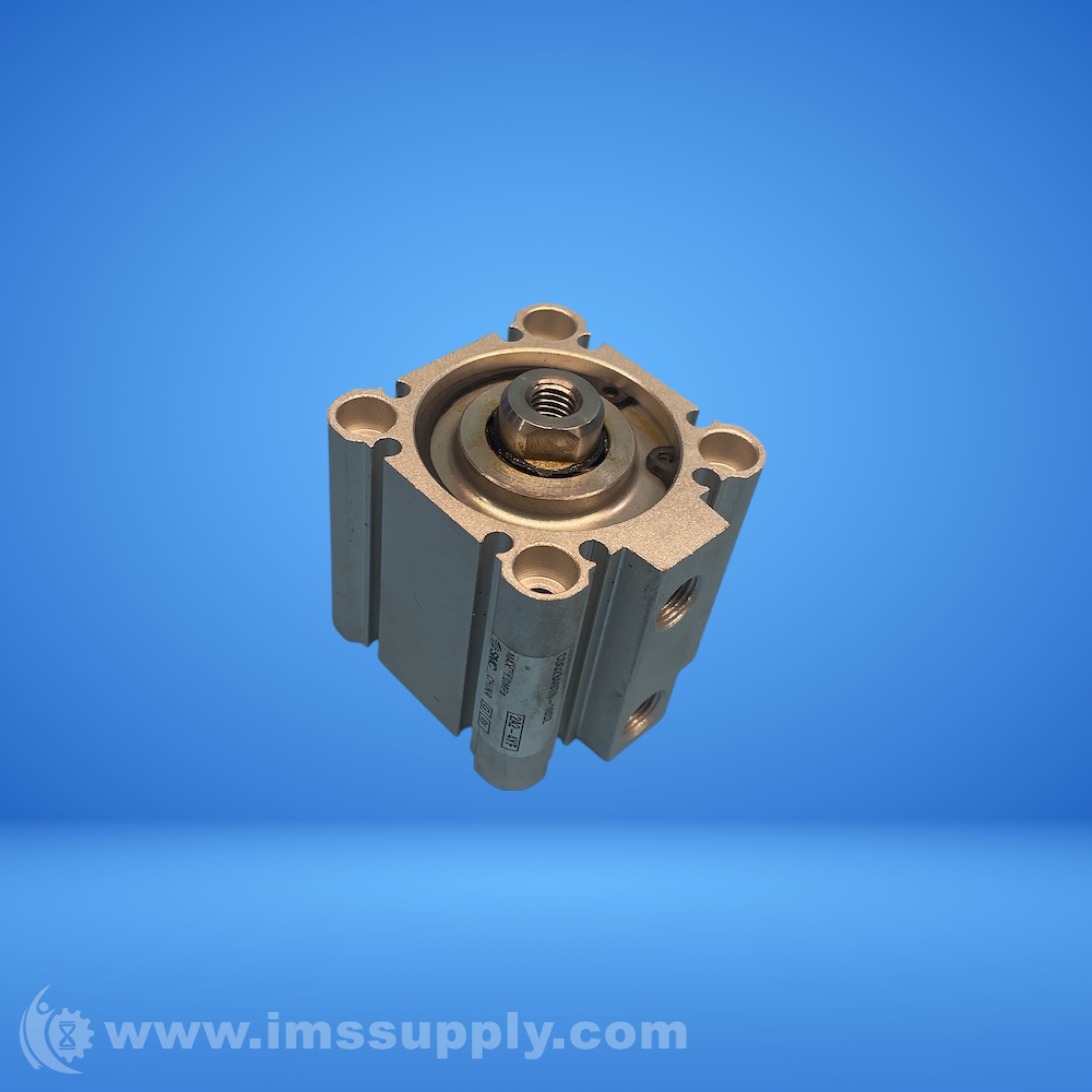

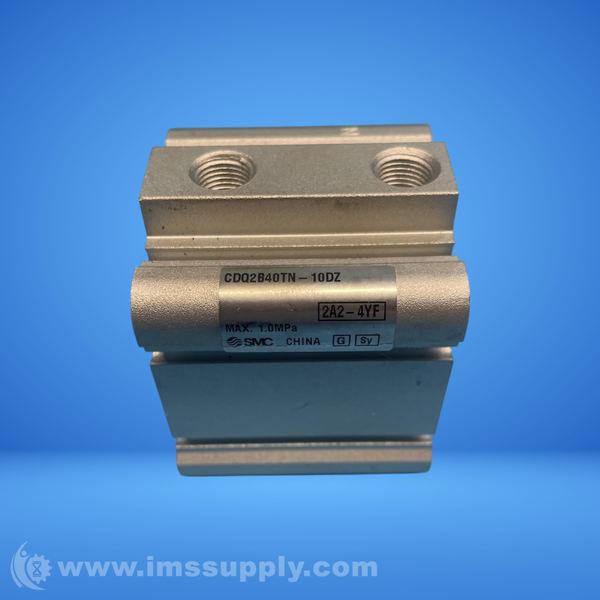

SMC CDQ2B40TN-10DZ Compact Cylinder
Standard double acting, single rod compact cylinder. Bore size: 40mm, stroke: 10mm. Female rod thread, NPT port threads.
Specifications
- Bore Diameter: 40 mm
- Stroke: 10 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: M14x1.5 Female ISO
- Port Size: 1/8 NPT
- Cushion Type: None
- Options Included: Magnetized, Switch Ready
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.05 to +1 MPa
- Push Force At 100 Psi: 880 N
- Pull Force At 100 Psi: 739 N
- Operating Temperature Range: -10 to +60 degrees C
- Standards Met: JIS
- Overall Length: 56.5 mm
- Overall Width: 57 mm
- Overall Height: 52 mm
- Cylinder Series: CQ2
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.05 MPa
- Port Gender: Female
- Port Thread Standard: NPT
- Rod Gender: Female
- Mounting Type: Through Hole
- Rod Thread Standard: ISO
- Series: CQ2-Z
- Product Type: Compact Air Cylinders
- Weight: 0.63934 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, December 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):

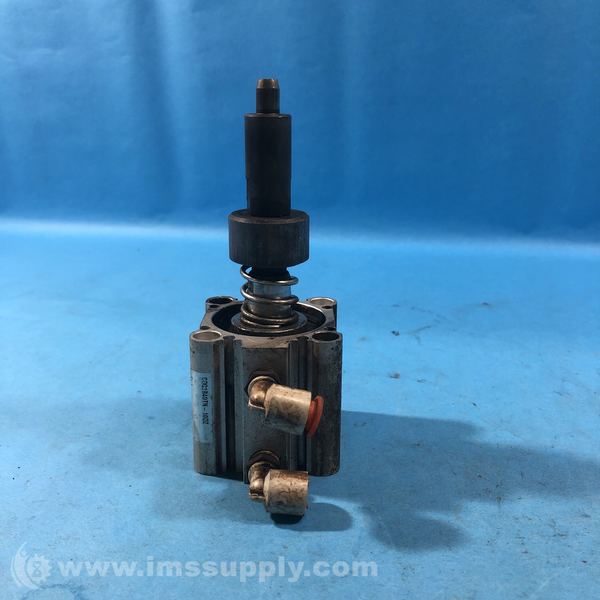

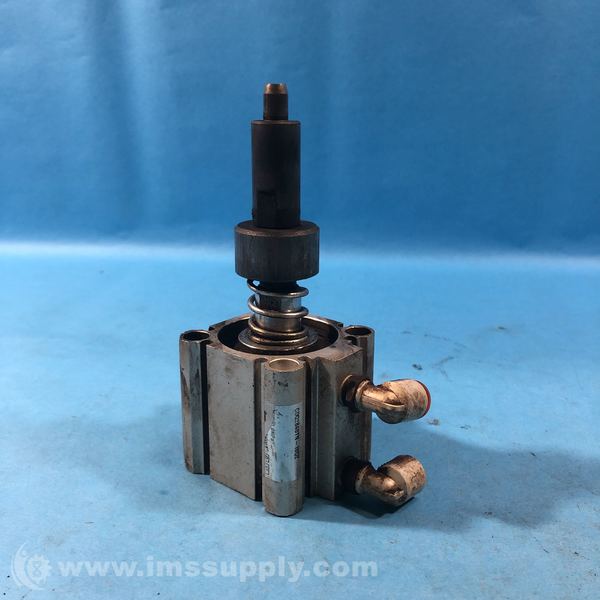

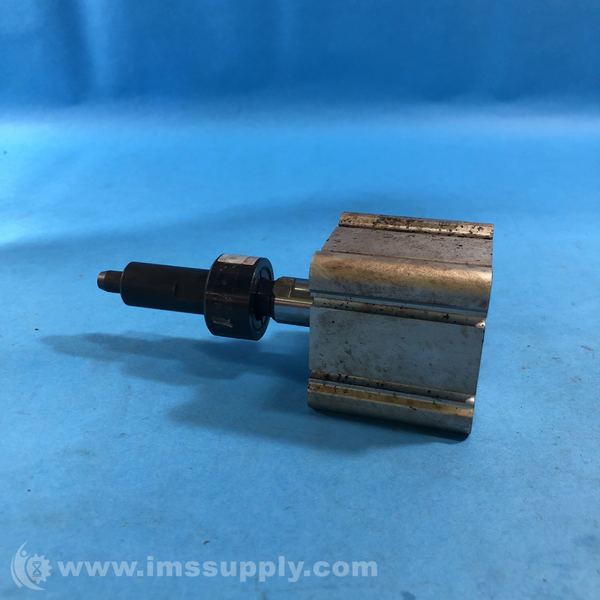

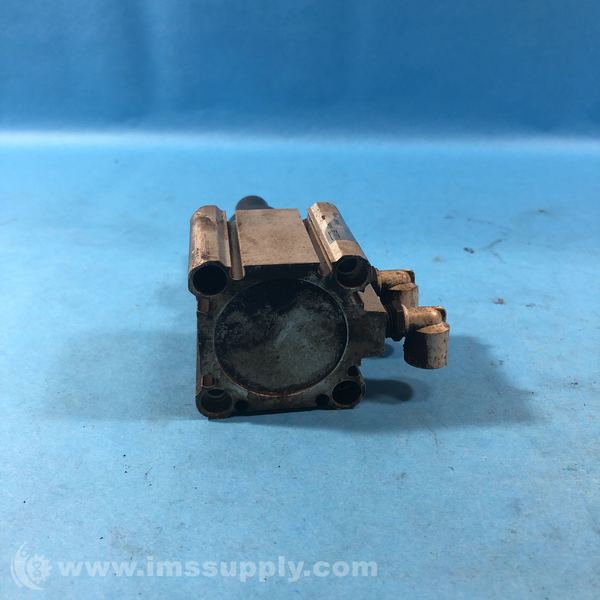

Has fittings and attachment
Availability: 1 In Stock
Ships on Monday, December 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Part has Nason AC-M8 07/20 coupler attached.
Availability: 2 In Stock
Ships on Monday, December 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
