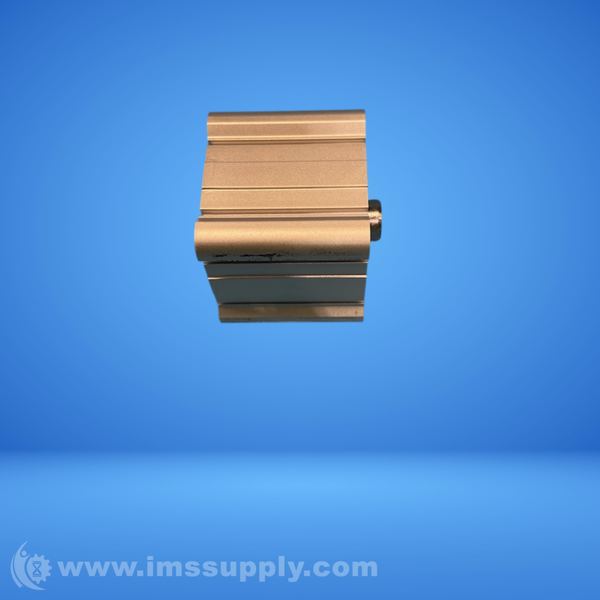

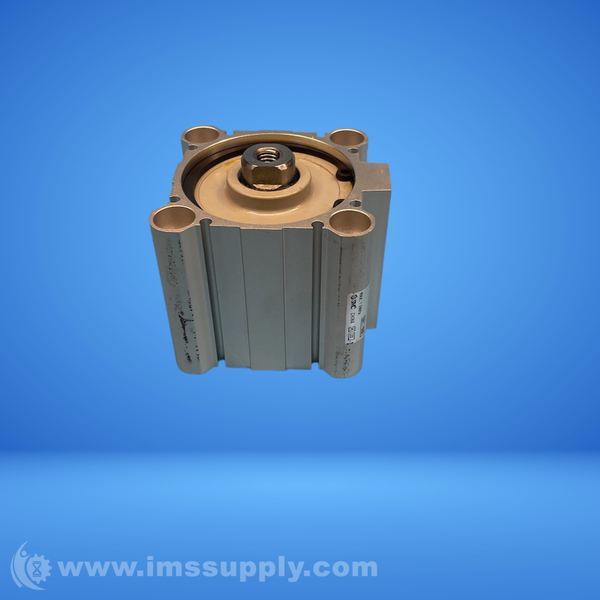

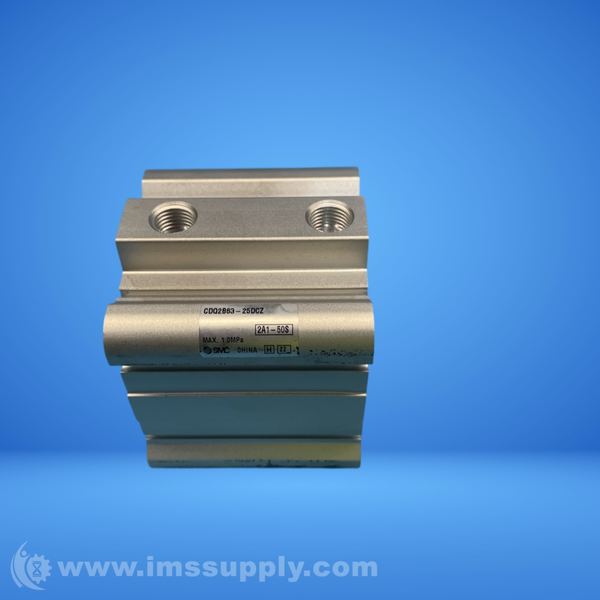

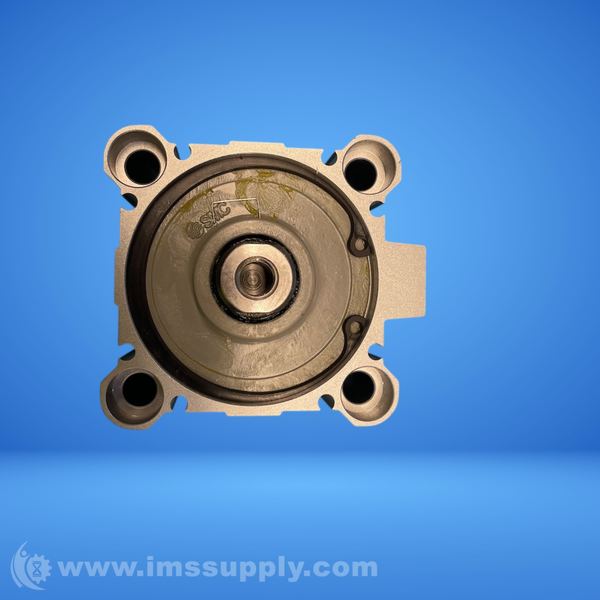

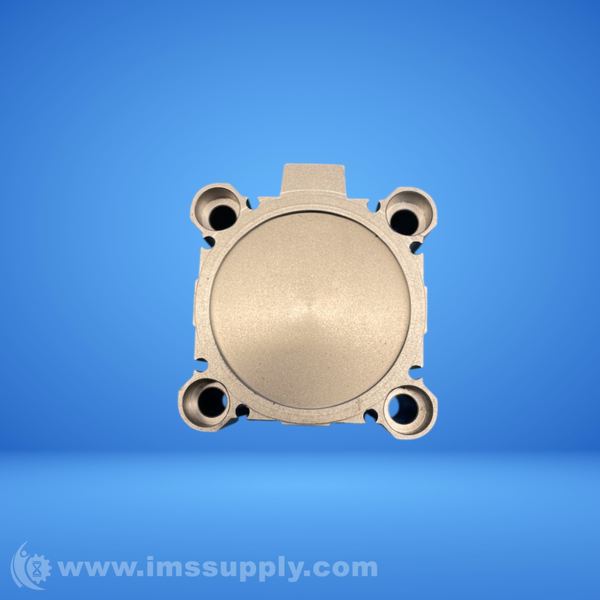

SMC CDQ2B63-25DCZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2B63-25DCZ
IMS Product Code: 2159919
Packaging: Sold Individually
Description:
SMC CDQ2B63-25DCZ Compact Cylinder
Double acting, single rod, compact cylinder
Specifications
- Series: CQ2-Z
- Type: ACTUATOR
- Bore Diameter: 63 mm
- Stroke: 25 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: M10 x 1.5 Female ISO
- Port Size: 1/4 BSPT
- Cushion Type: Rubber Bumper
- Options Included: Magnetized, Switch Ready
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.05 to +1 MPa
- Push Force At 100 Psi: 2180 N
- Pull Force At 100 Psi: 1960 N
- Operating Temperature Range: -10 to +60 degrees C
- Standards Met: JIS
- Overall Length: 79 mm
- Overall Width: 84 mm
- Overall Height: 77 mm
- Maximum Operating Pressure: +1 Mpa
- Minimum Operating Pressure: +0.05 MPa
- Port Gender: Female
- Port Thread Standard: BSPT
- Rod Gender: Female
- Mounting Type: Through Hole
- Rod Size: M18x1.5
- Rod Thread Standard: ISO
- Weight: 1.73918 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
