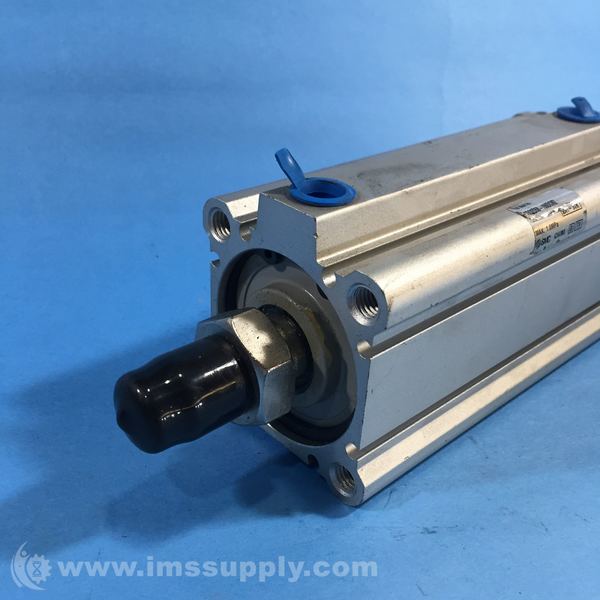

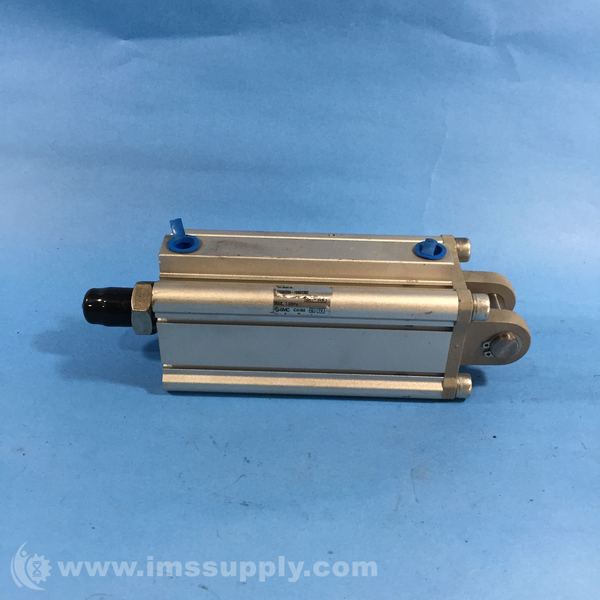

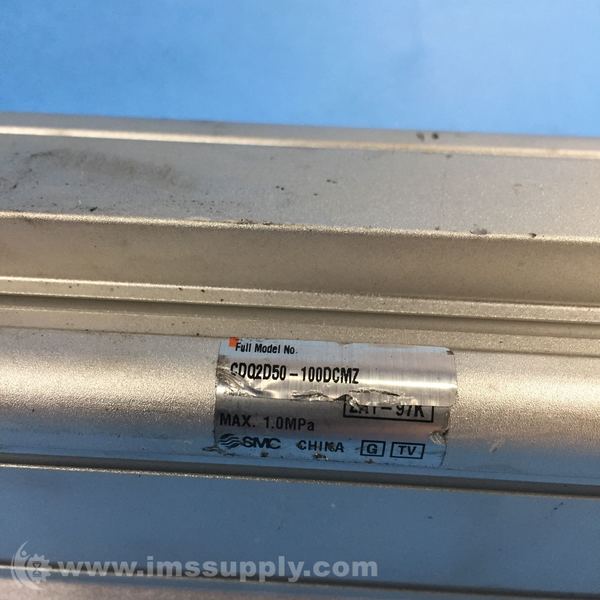

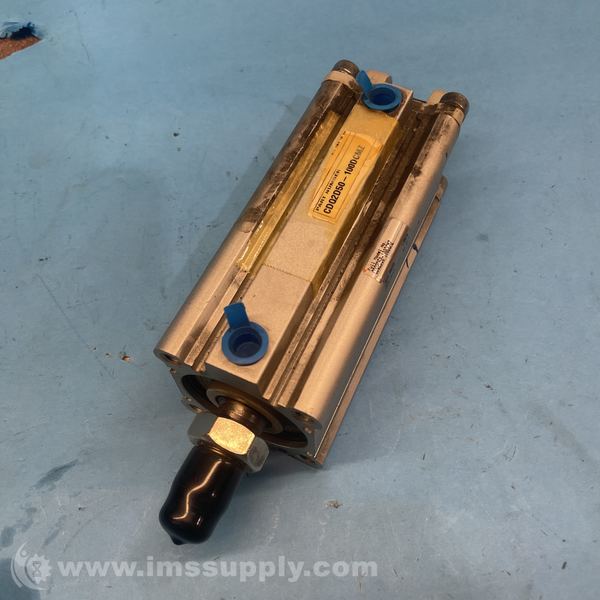

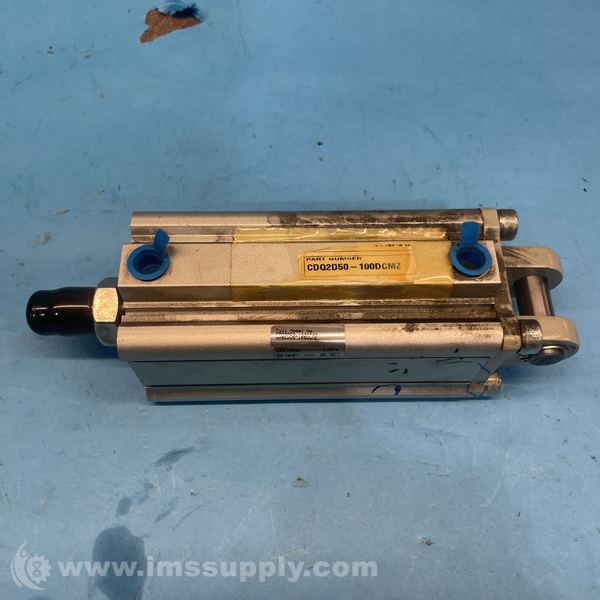

SMC CDQ2D50-100DCMZ COMPACT AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2D50-100DCMZ
IMS Product Code: 1830276
Packaging: Sold Individually
Description:
SMC CDQ2D50-100DCMZ Compact Air Cylinder
Double acting, single rod, compact cylinder
Specifications
- Series: CQ2-Z
- Bore Size: 50mm
- Action: Double Acting
- Auto Switch: Yes
- Weight: 1.524 kg
- Stroke: 100 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: M18x1.5 Male ISO
- Port Size: 1/4 BSPT
- Cushion Type: Rubber Bumper
- Options Included: Magnetized, Switch Ready
- Proof Pressure: 1.5 MPa
- Operating Pressure Range: +0.05 to +1 MPa
- Push Force At 100 Psi: 1370 N
- Pull Force At 100 Psi: 1150 N
- Operating Temperature Range: -10 to +60 degrees C
- Standards Met: JIS
- Overall Length: 219 mm
- Cylinder Series: CQ2
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.05 MPa
- Port Gender: Female
- Port Thread Standard: BSPT
- Rod Gender: Male
- Mounting Type: Double Clevis
- Rod Thread Standard: ISO
- Fluid: Air
- Rod Diameter: 20 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 11 minutes.
