SMC CDQ2WB20-25DZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQ2WB20-25DZ
IMS Product Code: 2144459
Packaging: Sold Individually
Description:

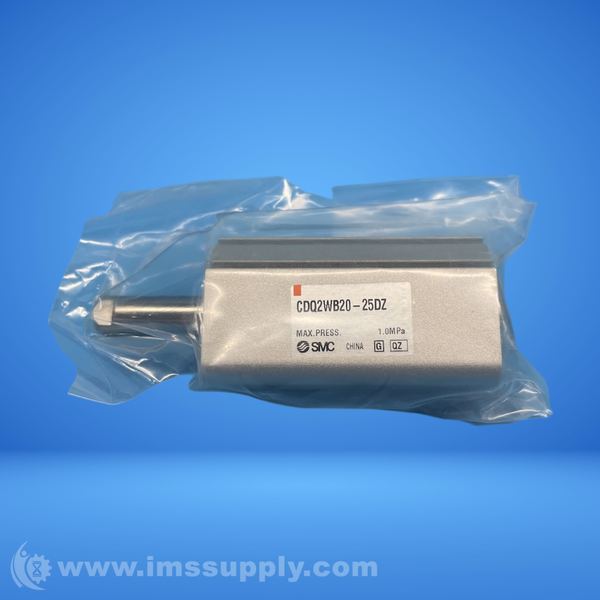

SMC CDQ2WB20-25DZ Compact Cylinder
Double acting compact cylinder with double rod and auto switch, 20mm bore diameter, 25mm stroke length, through hole mounting, aluminum body.
Specifications
- Bore Diameter: 20 mm
- Stroke Length: 25 mm
- Cylinder Action: Double Acting
- Cylinder Type: Compact
- Mounting Style: Through Hole
- Body Material: Aluminum
- Rod Diameter: 10 mm
- Rod Thread Size: M5 x 0.8
- Piston Material: Aluminum
- Piston Rod Material: Stainless Steel
- Maximum Operating Pressure: 145 MPa
- Minimum Operating Pressure: 7.25 MPa
- Maximum Operating Temperature: 140 F
- Minimum Operating Temperature: 14 F
- Overall Height: 35.5 mm
- Overall Width: 47 mm
- Weight: 182 g
