SMC CDQMB20-50 COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDQMB20-50
IMS Product Code: 2145899
Packaging: Sold Individually
Description:

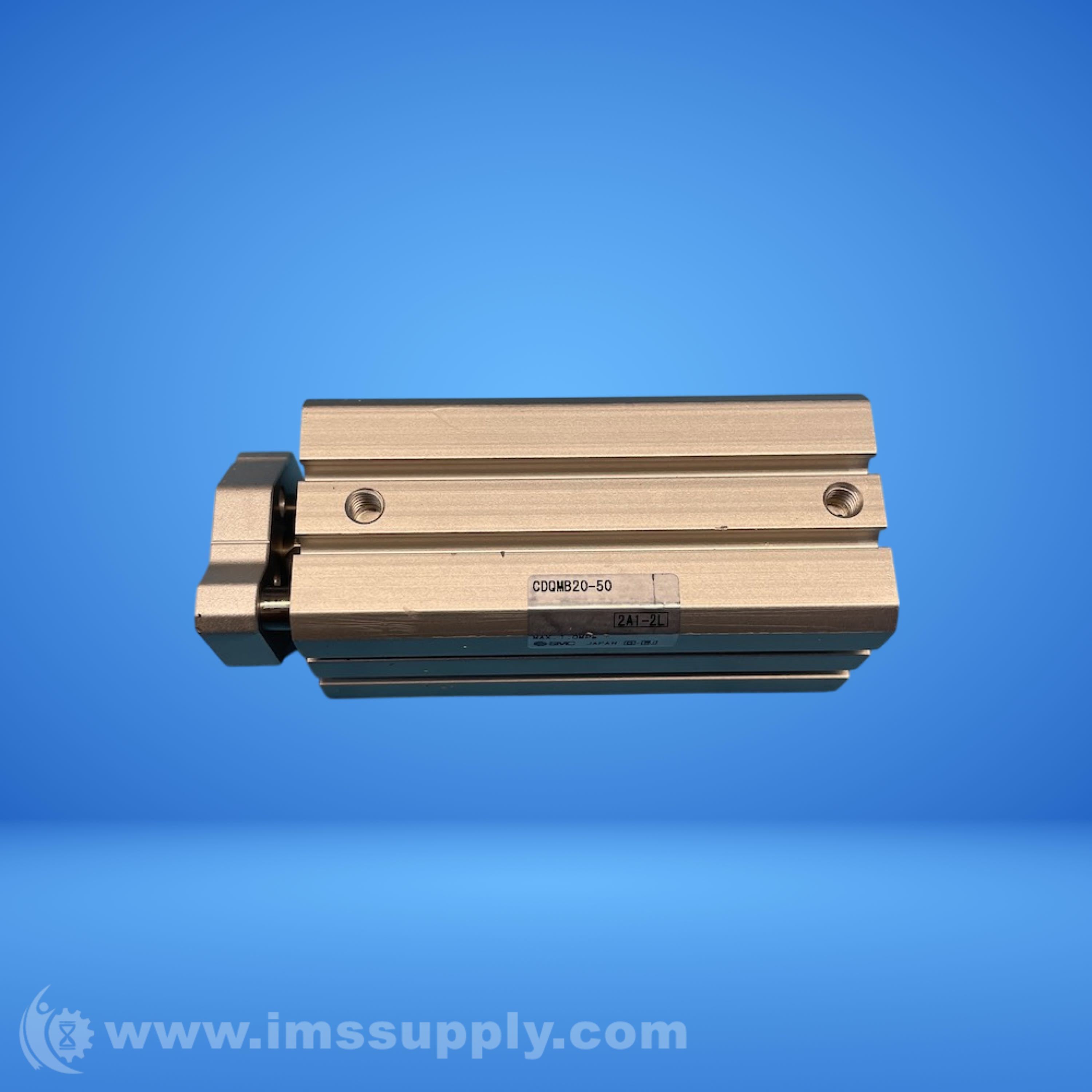

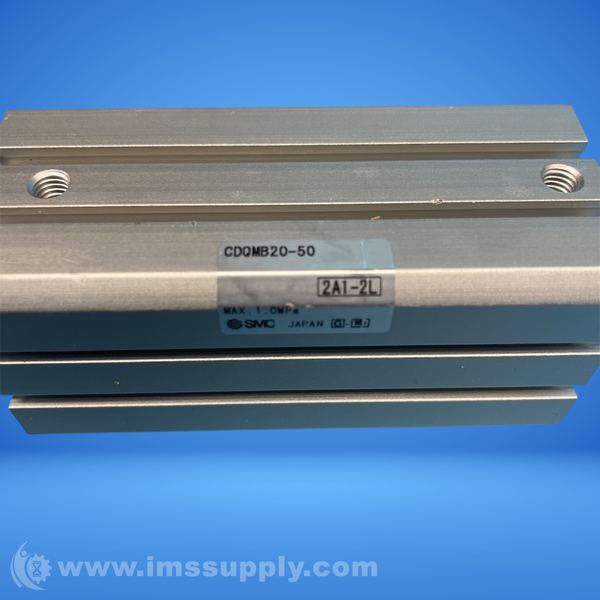

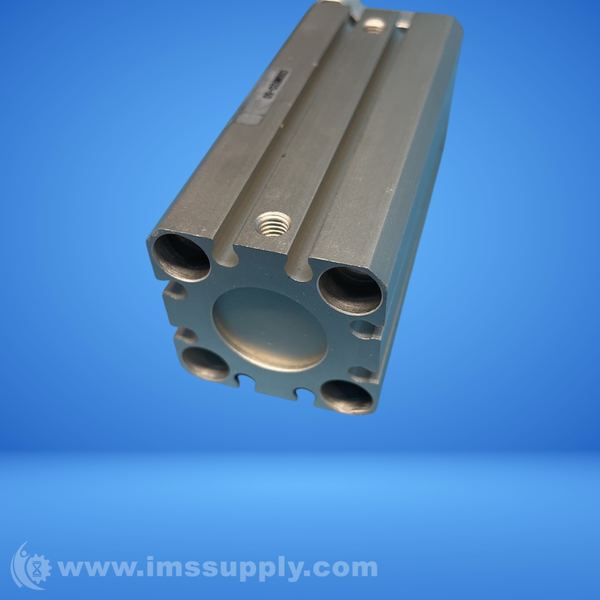

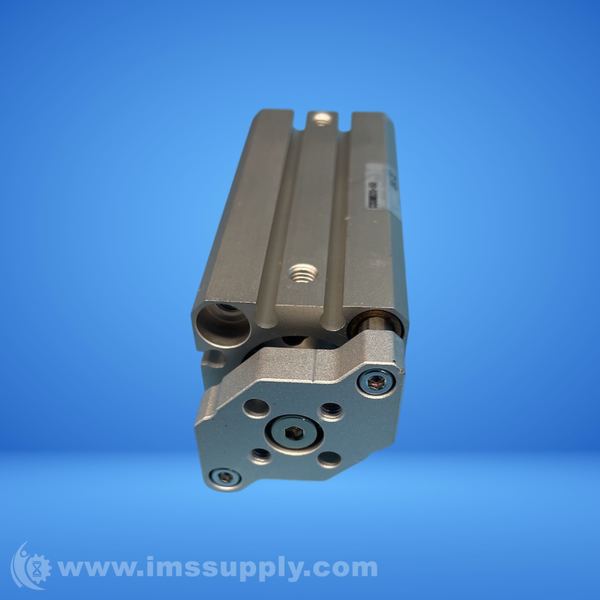

SMC CDQMB20-50 Compact Cylinder
Compact cylinder with 20 mm bore size and 50 mm stroke, double-acting, guide rod type, through-hole mounting, with magnet.
Specifications
- Bore Size: 20 mm
- Stroke: 50 mm
- Action: Double Acting
- Cushion Type: Rubber Bumper
- Operating Pressure Range: +0.1 to +1 MPa
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.1 MPa
- Push Force At 100 Psi: 220 N
- Pull Force At 100 Psi: 165 N
- Operating Temperature Range: -10 to +70 degrees C
- Port Size: M5x0.8
- Port Thread Standard: ISO
- Mounting Type: Through Holes
- Overall Length: 92 mm
- Overall Width: 36 mm
- Overall Height: 36 mm
- Weight: 0.61892 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
