SMC CDS1FN180-225 TIE ROD CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDS1FN180-225
IMS Product Code: 1825446
Packaging: Sold Individually
Description:

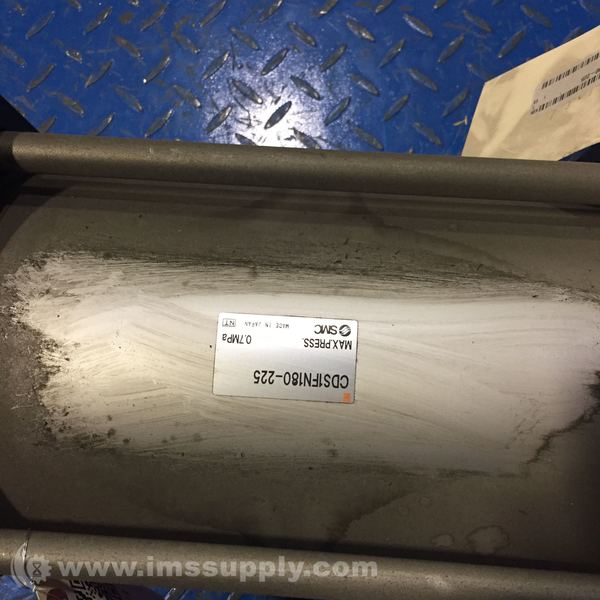

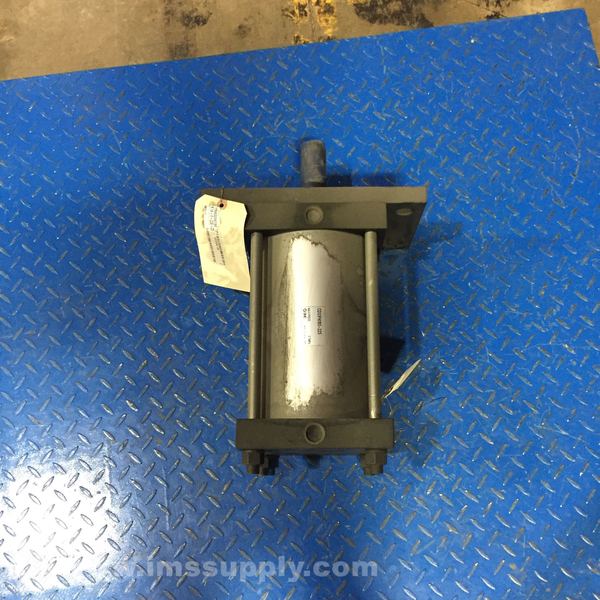

SMC CDS1FN180-225 Tie Rod Cylinder
Double acting, single rod, non-lube type air cylinder with tie-rod construction. Bore size of 180mm. Maximum operating pressure of 0.97 MPa.
Specifications
- Bore Size: 180 mm
- Type: Non-lube
- Fluid: Air
- Maximum Operating Pressure: 0.97 MPa
- Minimum Operating Pressure: 0.05 MPa
- Piston Speed: 50 to 500 mm/s
- Cushioning: Yes
- Ambient and Fluid Temperature: 0 to 60 degrees C (no freezing)
- Mounting Style: Rod Side Flange Style
- Port Thread Type: Rc
- Stroke Length Tolerance: 250 st or less: (0 to +1.0), 251 to 1,000 st: (0 to +1.4), 1,001 to 1,500 st: (0 to +1.8)
- Weight: 105.60000 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
