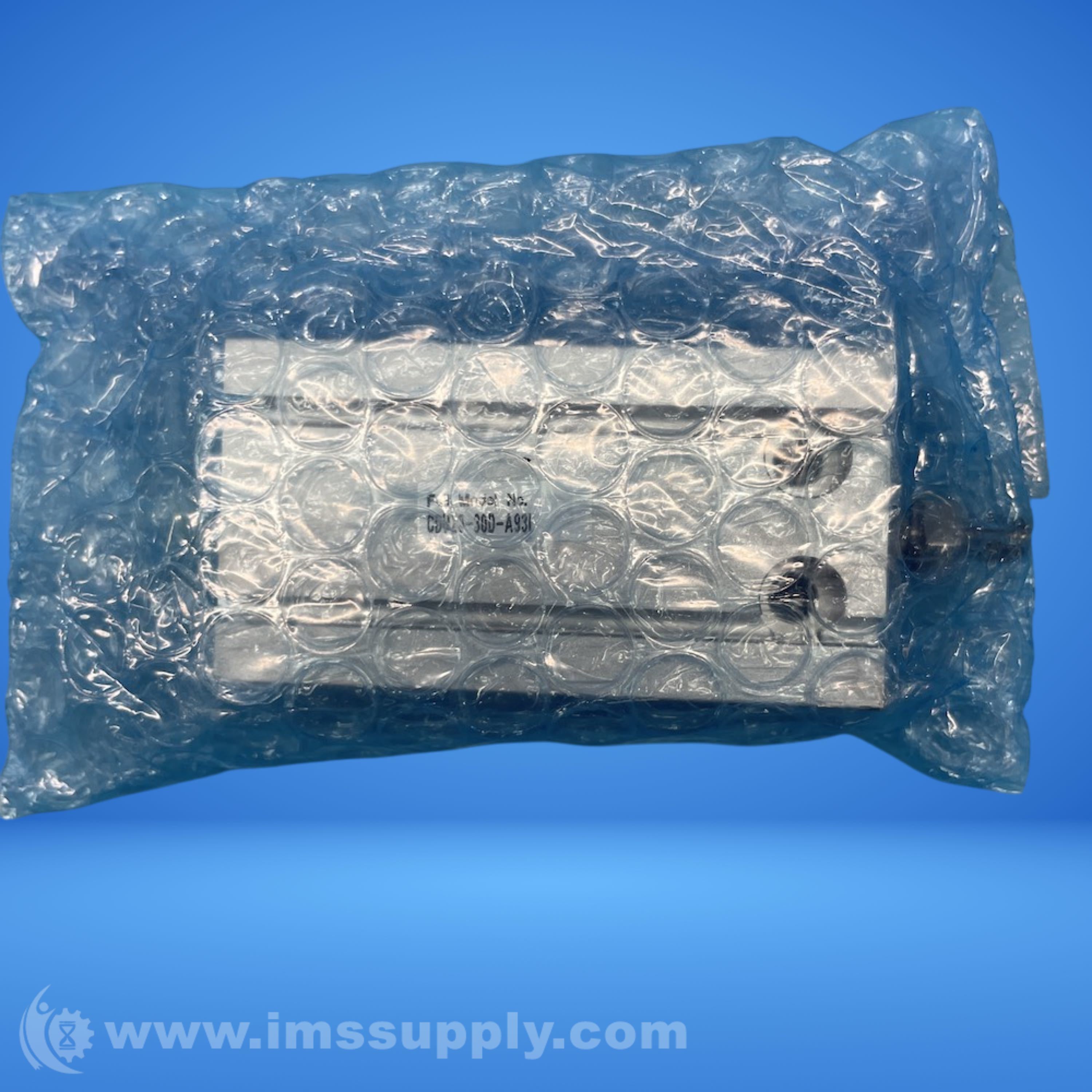

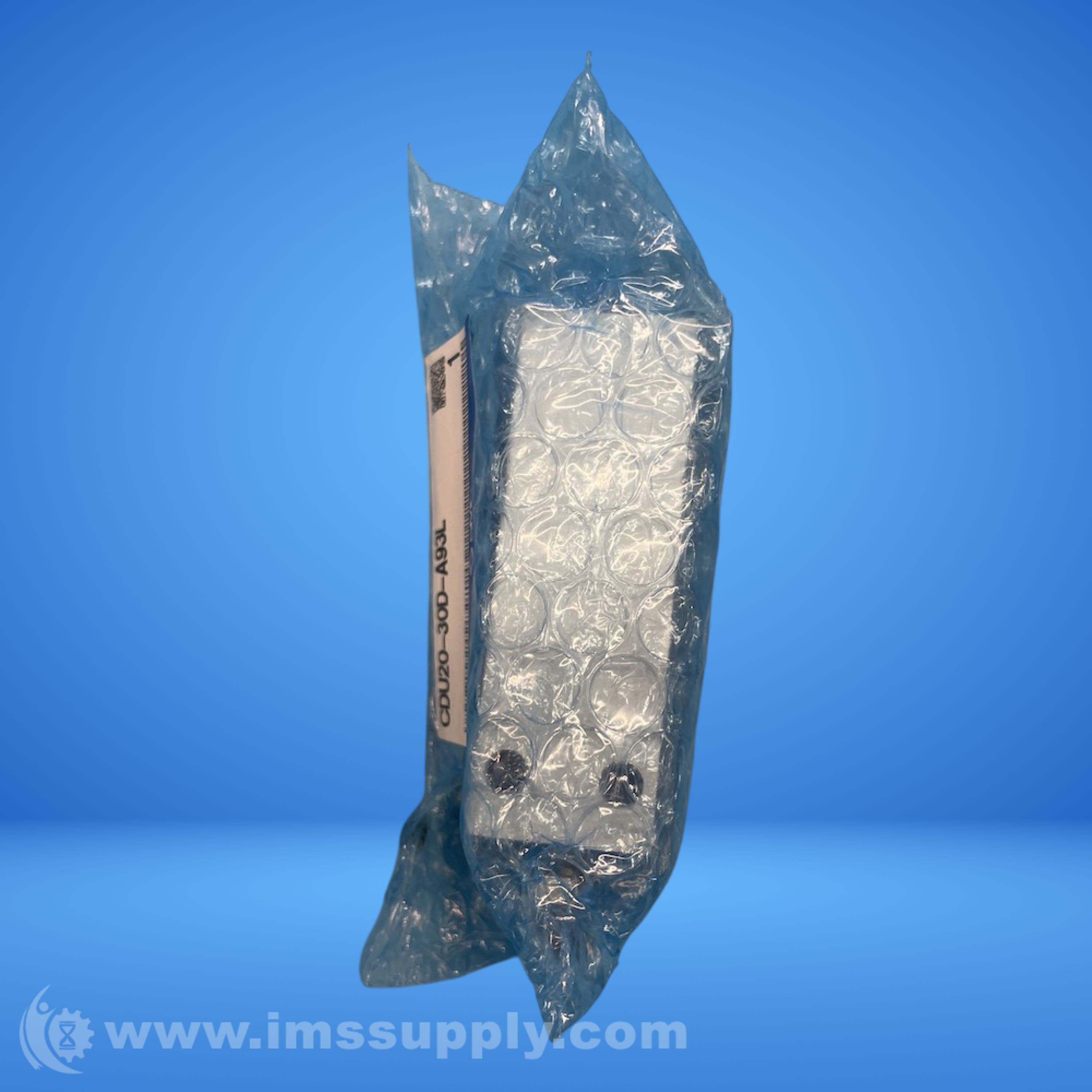

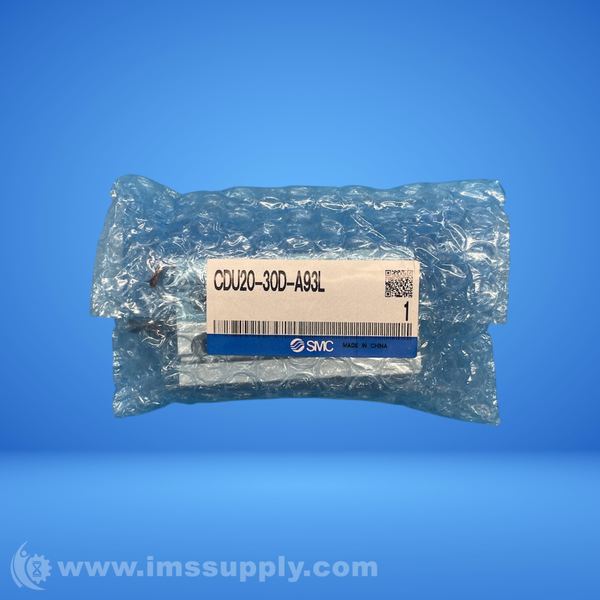

SMC CDU20-30D-A93L COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CDU20-30D-A93L
IMS Product Code: 2125629
Packaging: Sold Individually
Description:
SMC CDU20-30D-A93L Compact Cylinder
Compact Air Cylinder, Double-Acting, Single Rod, 20 mm Bore, 30 mm Stroke, Free Mount, Built-in Magnet, Auto Switch
Specifications
- Stroke: 30 mm
- Bore Diameter: 20 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Cushion Type: Rubber Bumper
- Operating Pressure Range: +0.05 to +0.7 MPa
- Push Force At 100 Psi: 220 N
- Pull Force At 100 Psi: 185 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 95 mm
- Overall Width: 40 mm
- Overall Height: 26 mm
- Port Size: M5x0.8
- Rod Size / Thread: M6x1 Male ISO
- Auto-Switch: A93 - Reed, DC Volt, AC Volt, LED, Horizontal
- Cylinder Series: CU
- Lead Wire Length: L - (3 m)
- Maximum Operating Pressure: +0.7 MPa
- Minimum Operating Pressure: +0.05 MPa
- Port Gender: Female
- Port Thread Standard: ISO
- Rod Gender: Male
- Magnet: Built-In Magnet
- Mounting Type: Through-Hole
- Rod Thread Standard: ISO
- Series: CU
