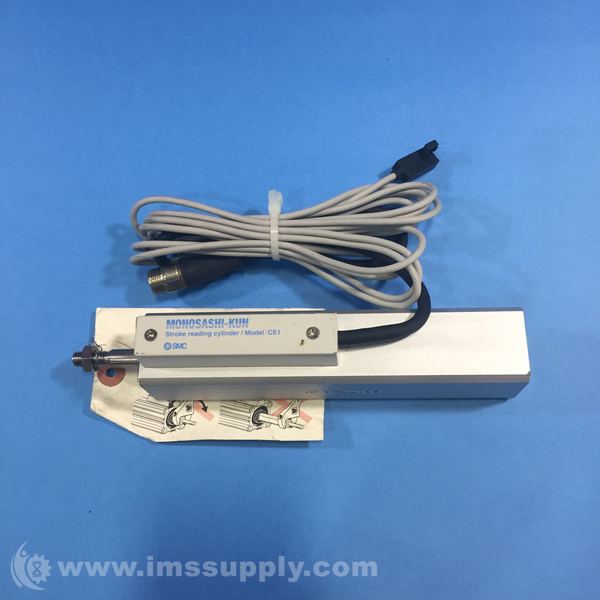

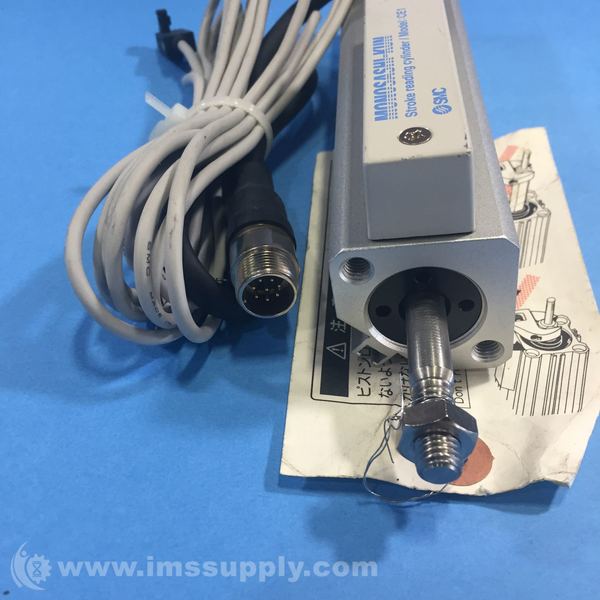

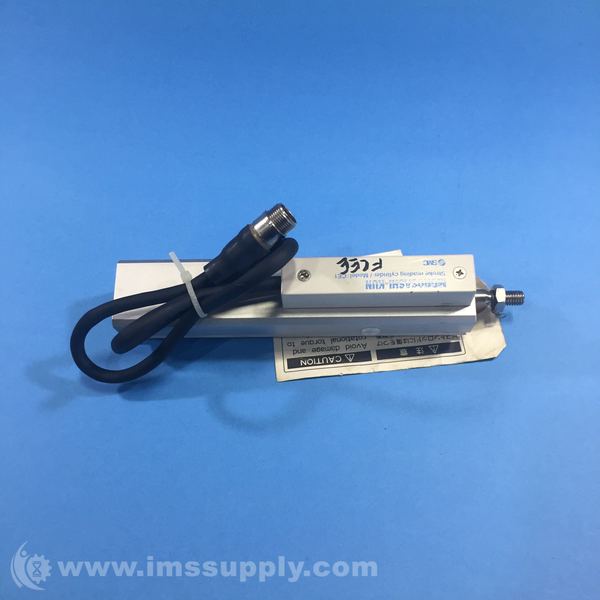

SMC CE1B20-100-J79WLS STROKE READING CYLINDER
Quick Overview
Manufactured By: SMC

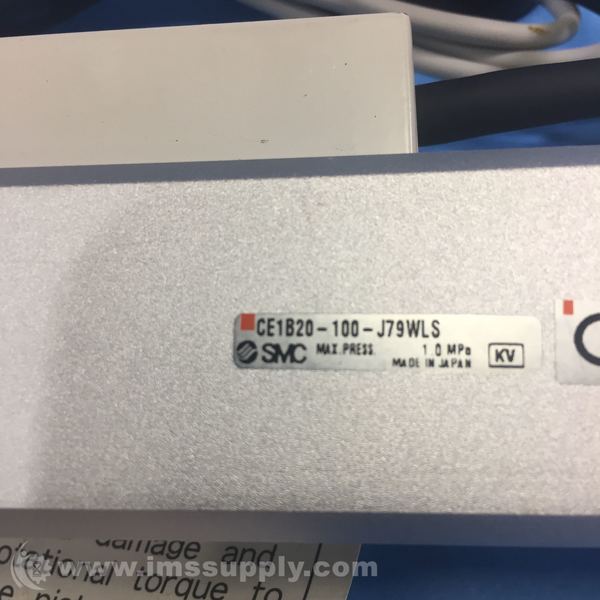

Manufacturer Part Number: CE1B20-100-J79WLS
IMS Product Code: 1818697
Packaging: Sold Individually
Description:
SMC CE1B20-100-J79WLS Stroke Reading Cylinder
SMC stroke reading cylinder with scale and connector. Specifications include maximum operating pressure of 1.0 MPa and stroke of 100mm.
Specifications
- Type: CE1 Series
- Fluid: Air
- Maximum operating pressure: 1.0 MPa
- Minimum operating pressure: 0.07 MPa (ø12 mm), 0.05 MPa (ø20 to 63 mm)
- Piston Speed: 70 to 500 mm/s
- Ambient and Fluid Temperature: 0°C to 60°C (no freezing)
- Humidity: 25 to 85% RH (no condensation)
- Lubrication: Not required
- Stroke Length Tolerance Range: (0 to +1.0) (ø12 mm, ø20 mm), (0 to +1.6) (ø32 mm, ø40 mm, ø50 mm, ø63 mm)
- With Air Cushion: none (ø12 mm, ø20 mm, ø32 mm), available (ø40 mm, ø50 mm, ø63 mm)
- Rod non-rotating accuracy: ±2 ° (ø12 mm), ±1 ° (ø20 mm), ±0.8 ° (ø32 mm, ø40 mm, ø50 mm, ø63 mm)
- Mount Support Type: Both ends tapped (standard), foot type, flange type, double clevis type
- Auto switch: Solid state type, reed type
- Cable: ø7 mm, 6-core twisted pair shielded wire
- Maximum Transmission Distance: 23 m
- Position Detection Method: Magnetic scale rod (non-rotating), Sensor head (incremental type)
- Magnetic Field Resistance: 14.5 mT
- Operating Power Range: 10.8 to 26.4 V DC
- Current Consumption: 40 mA
- Resolution: 0.1 mm/pulse
- Accuracy: ±0.2 mm
- Output Type: Open collector (24 V DC, 40 mA)
- Output Signal: A phase / B phase difference output
- Insulation Resistance: 500 V DC, 50 MO or more
- Vibration-Resistance: 33.3 Hz 6.8 G for 2 hours in X and Y directions, 4 hours in Z direction
- Impact Resistance: 30 G, 3 times in X, Y, Z directions
- Protective Enclosure: IP65
- Stroke: 100mm
