SMC CH2FCB40B-689A HYDRAULIC CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CH2FCB40B-689A
IMS Product Code: 2130700
Packaging: Sold Individually
Description:

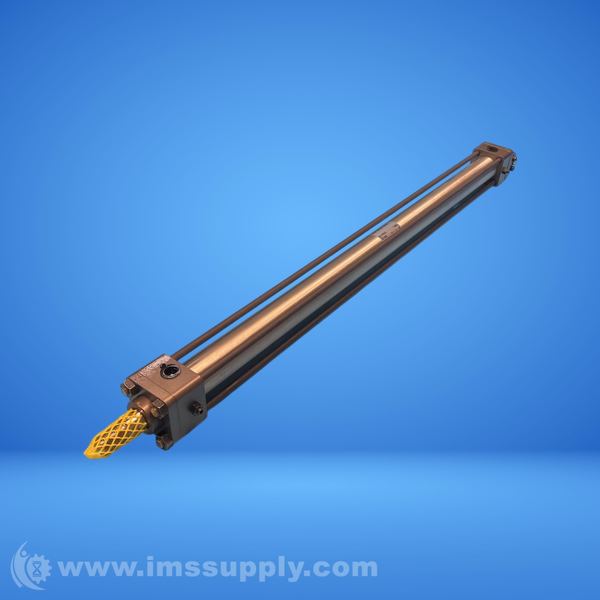

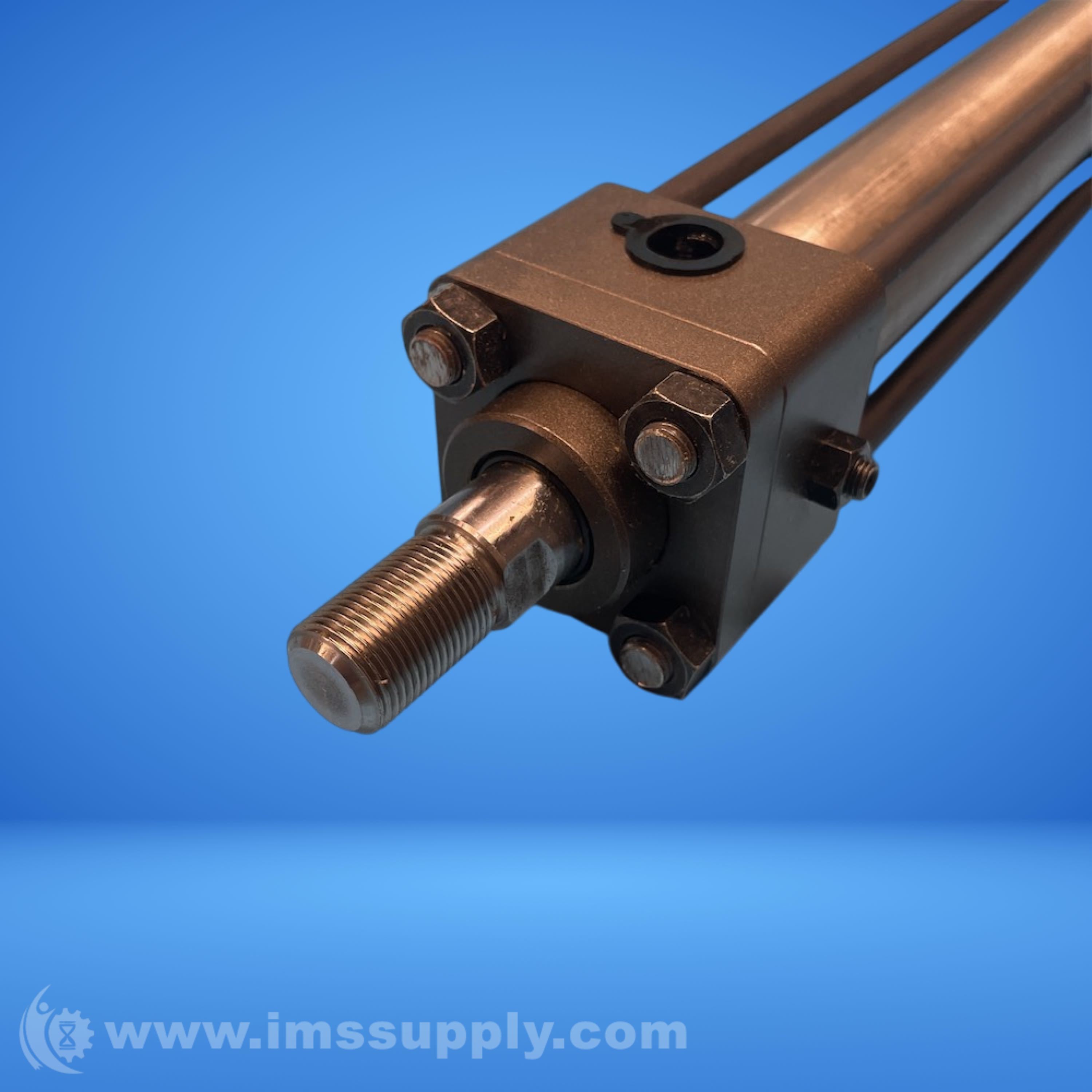

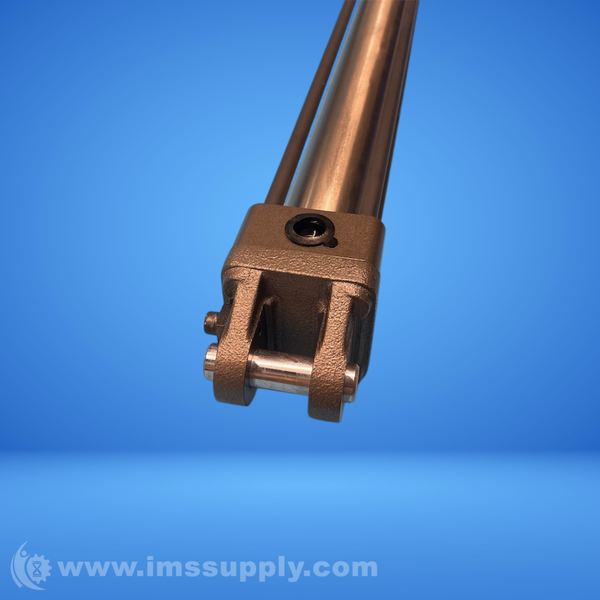

SMC CH2FCB40B-689A Hydraulic Cylinder
Double acting single rod hydraulic cylinder conforming to JIS specifications.
Specifications
- Series: CH
- Action: Double acting/Single rod
- Fluid: Hydraulic fluid

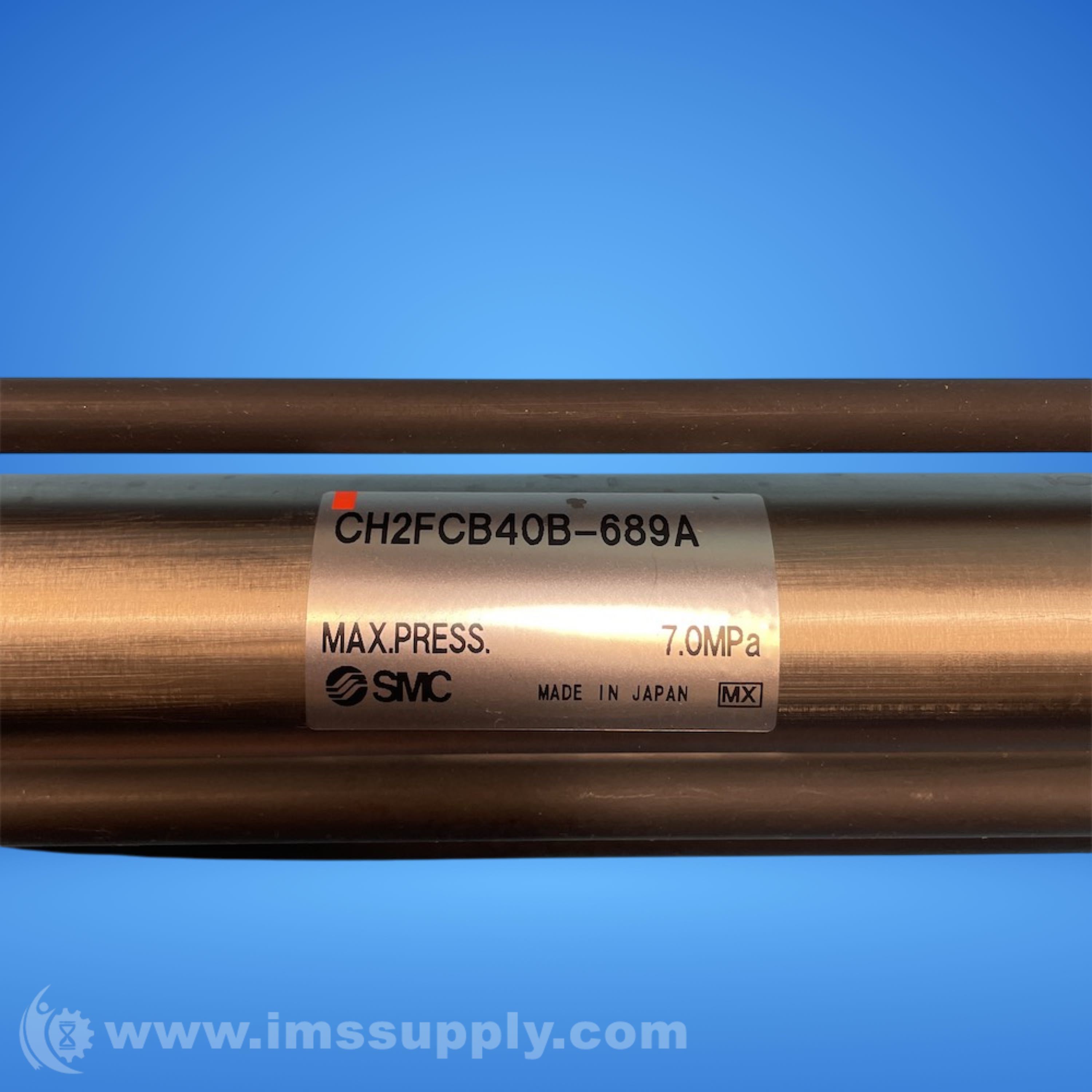

- Nominal pressure: 7 MPa
- Maximum allowable pressure: Head: 9 MPa, Rod: B rod 13.5 MPa, C rod 11 MPa
- Proof pressure: 10.5 MPa
- Minimum operating pressure: Head: 0.15 MPa, Rod: 0.2 MPa
- Ambient and fluid temperature: Without auto switch: -10 to 80 degrees C, With auto switch: -10 to 60 degrees C
- Piston speed: 8 to 300 mm/s
- Cushion: Cushion seal type
- Stroke length tolerance: +0.8 to +1.8 mm
- Piston packing material: NBR
- Standard: JIS Specifications
- Piston material: Aluminum/Stainless Steel
- Tube material: Aluminum/Stainless Steel/Steel

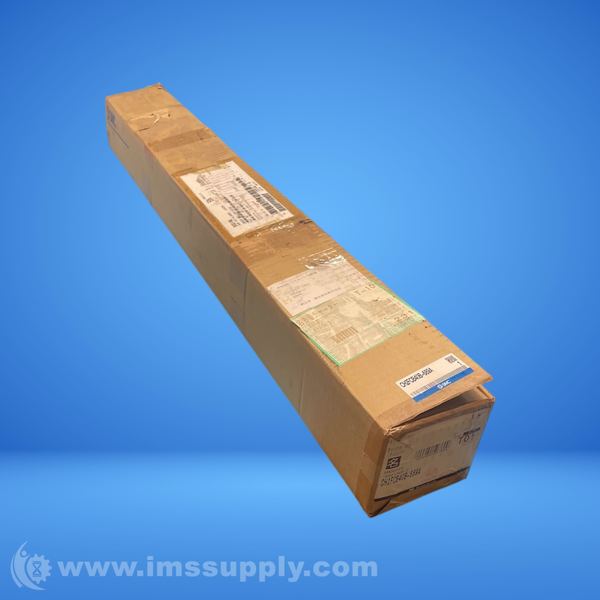

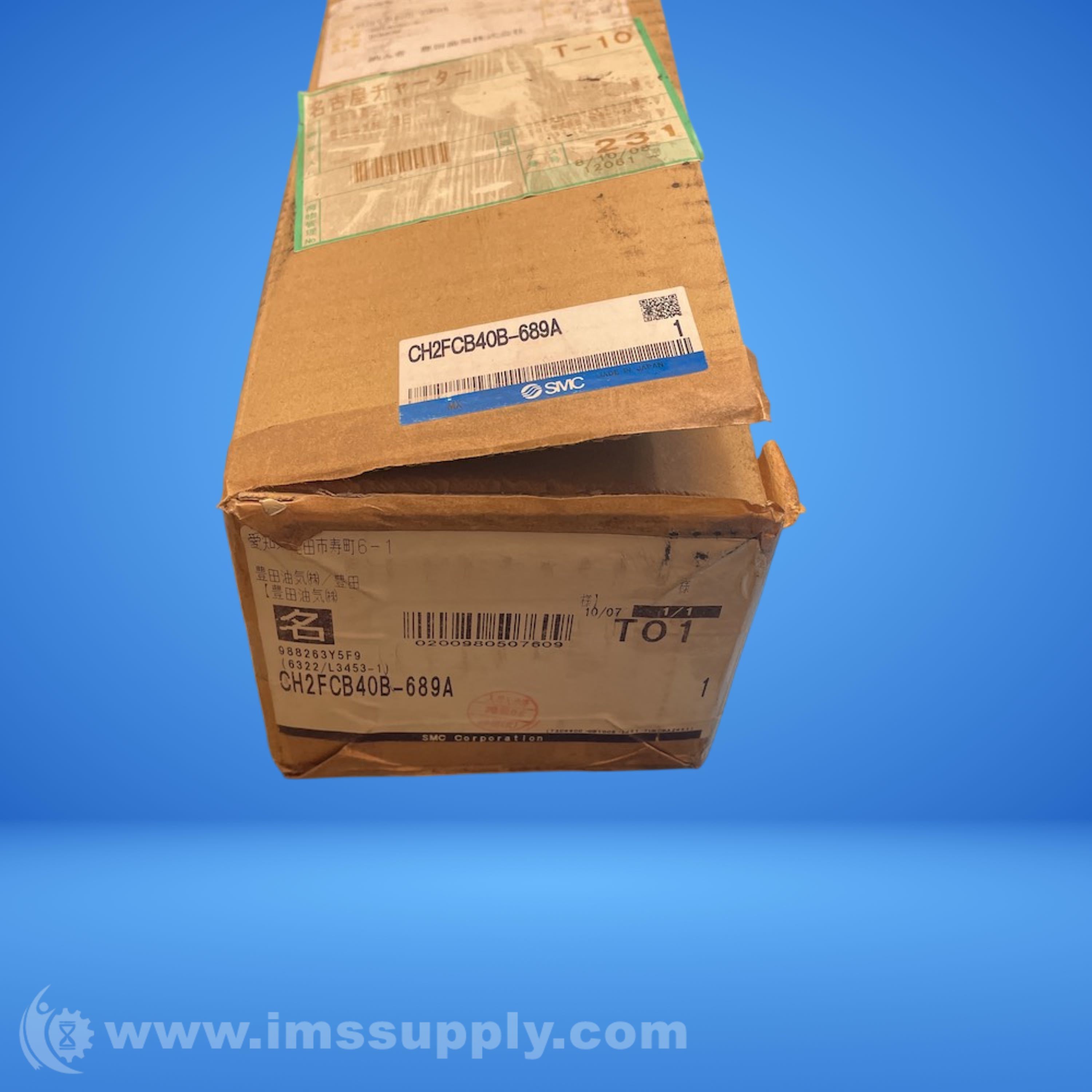

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 9 hours and 47 minutes.
