SMC CJPB10-10H6-B PIN CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CJPB10-10H6-B
IMS Product Code: 2144439
Packaging: Sold Individually
Description:

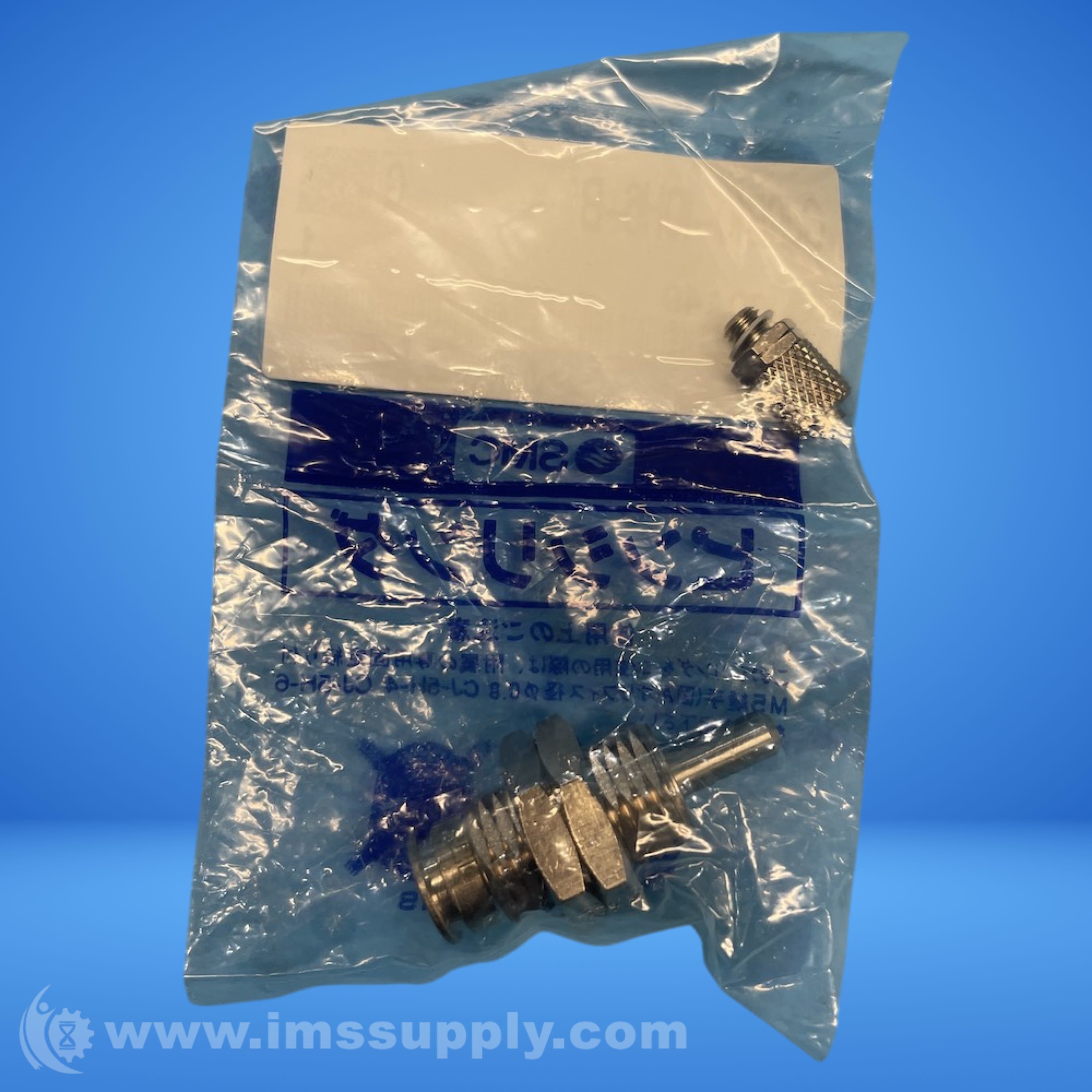

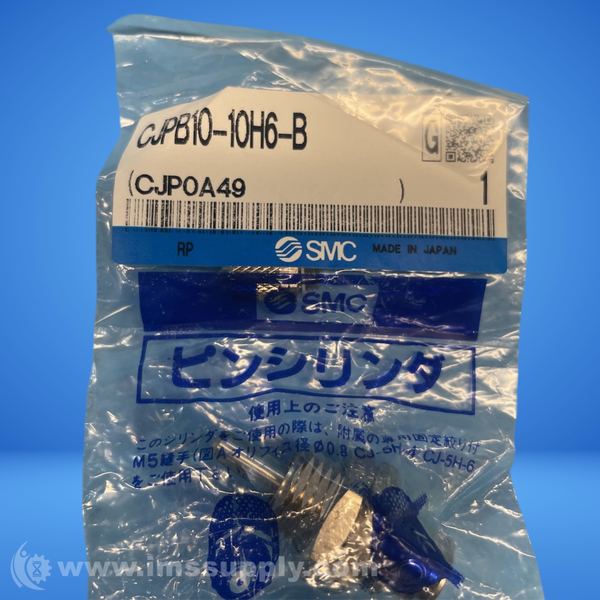

SMC CJPB10-10H6-B Pin Cylinder
Single-acting spring return pin cylinder with panel mount type.
Specifications
- Series: CJP
- Bore Diameter: 10 mm
- Stroke: 10 mm
- Piston Action: Single-Acting Spring Return
- Rod Type: Single Rod
- Rod Size / Thread: 5 mm Rod / Without Thread
- Cushion Type: None
- Port Size: M5x0.8
- Push Force At 100 Psi: 49 N
- Pull Force At 100 Psi: 2.45 N
- Operating Temperature Range: -10 to +70 degrees C
- Overall Length: 39 mm
- Overall Width: 19 mm
- Overall Height: 22 mm
- Body Material: Brass
- Port Thread Standard: ISO
- Maximum Operating Pressure: 0.7 MPa
- Minimum Operating Pressure: 0.15 MPa
- Mounting Type: Panel
- Port Gender: Female
- Proof Pressure: 1 MPa
- Rod Size: 5 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, October 27, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
