SMC CLA2T63-600-E TIE ROD CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CLA2T63-600-E
IMS Product Code: 1901344
Packaging: Sold Individually
Description:

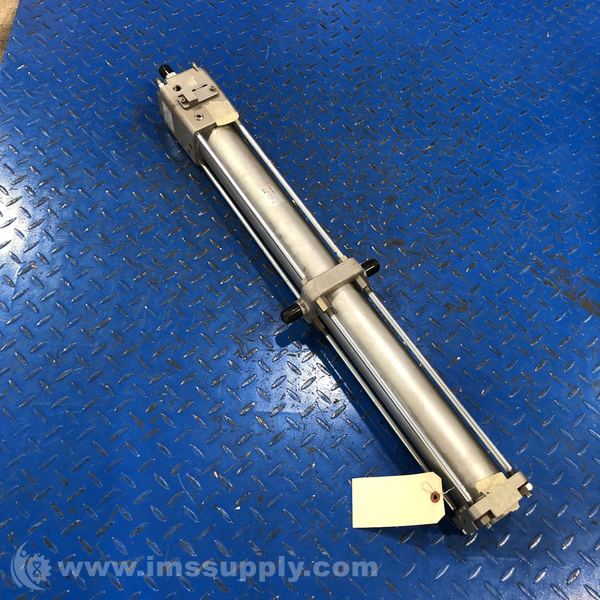

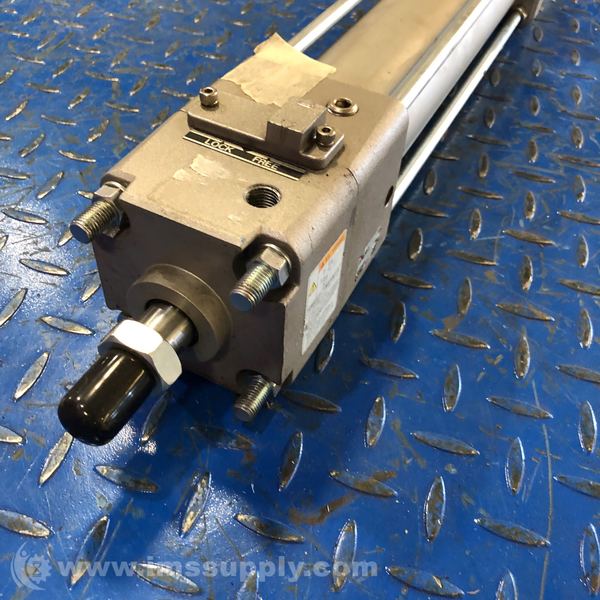

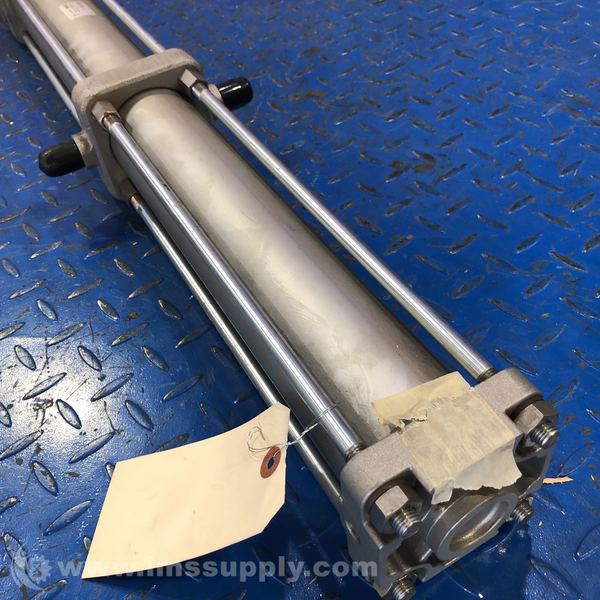

SMC CLA2T63-600-E Tie Rod Cylinder
Double acting, single rod cylinder with lock
Specifications
- Bore Size: 63 mm
- Stroke: 600 mm
- Cylinder Type: Tie-Rod Cylinder
- Fluid: Air
- Action: Double acting
- Proof Pressure: 1.5 MPa
- Maximum Operating Pressure: 1.0 MPa
- Minimum Operating Pressure: 0.08 MPa
- Piston Speed: 50 to 500 mm/sec
- Ambient and Fluid Temperature: -10°C to 70°C
- Cushion: Air cushion
- Stroke Length Tolerance: +1.8 0
- Mounting: Basic, Axial foot, Rod flange, Head flange, Single clevis, Double clevis, Center trunnion
