SMC CNA2D40TN-75-D DOUBLE ACTING CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CNA2D40TN-75-D
IMS Product Code: 1837363
Packaging: Sold Individually
Description:

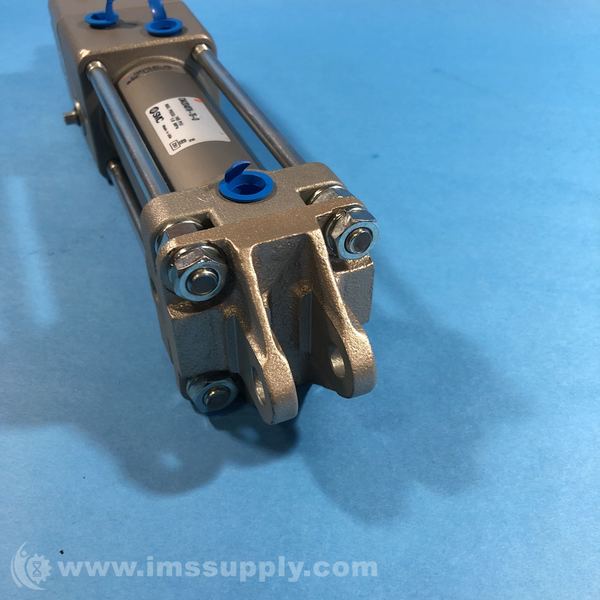

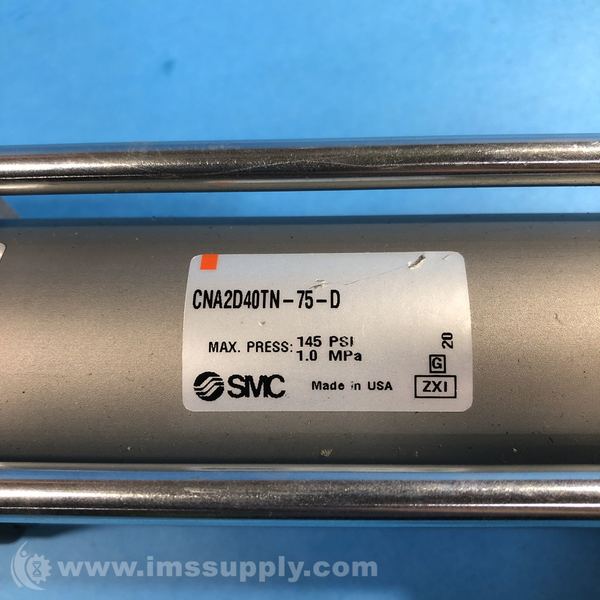

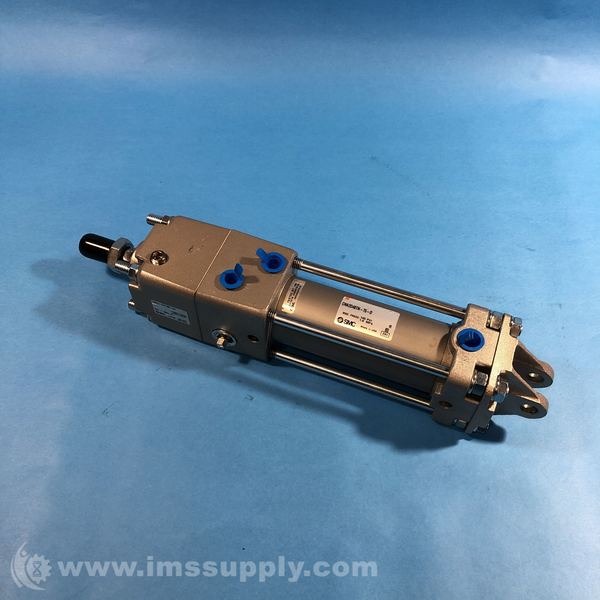

SMC CNA2D40TN-75-D Double Acting Cylinder
Double acting cylinder with locking mechanism, 40mm bore size, 75mm stroke length.
Specifications
- Bore Size: 40 mm
- Stroke Length: 75 mm
- Pressure Range: 0.15 to 1.0 MPa
- Maximum Locking Pressure: 0.5 MPa
- Ambient Temperature Range: -10 to 60 degrees C
- Fluid Temperature Range: -10 to 60 degrees C
- Operating Medium: Air
- Body Material: Aluminum Alloy
- Surface Treatment: Hard-anodized
- Weight: 6.9939 lb / 2.22 kg
- Series Catalog: CNA2
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, February 9, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):

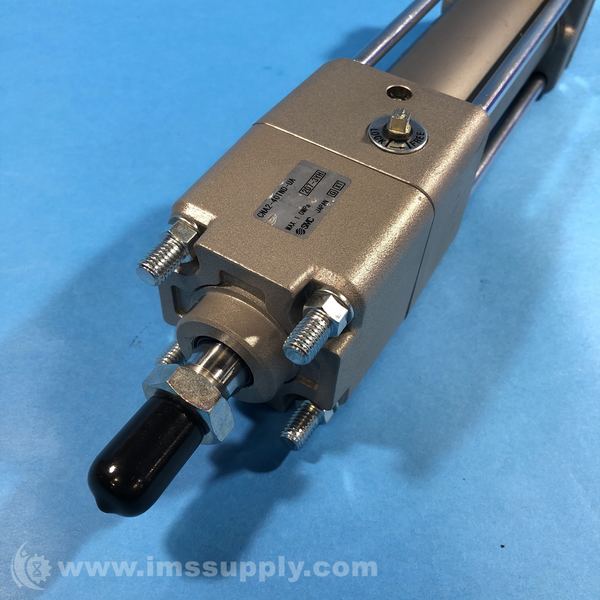

Part has SMC CNA2-40-TND-UA attached.
Availability: 1 In Stock
Ships on Monday, February 9, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
