SMC CQ2B16-15DM COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CQ2B16-15DM
IMS Product Code: 1814854
Packaging: Sold Individually
Description:

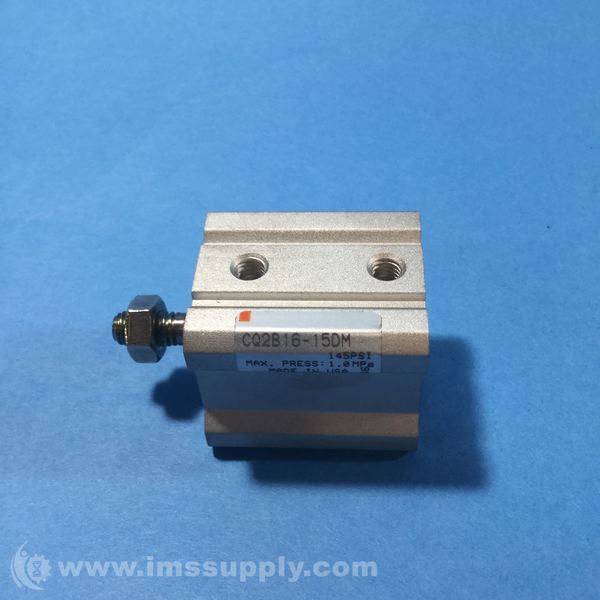

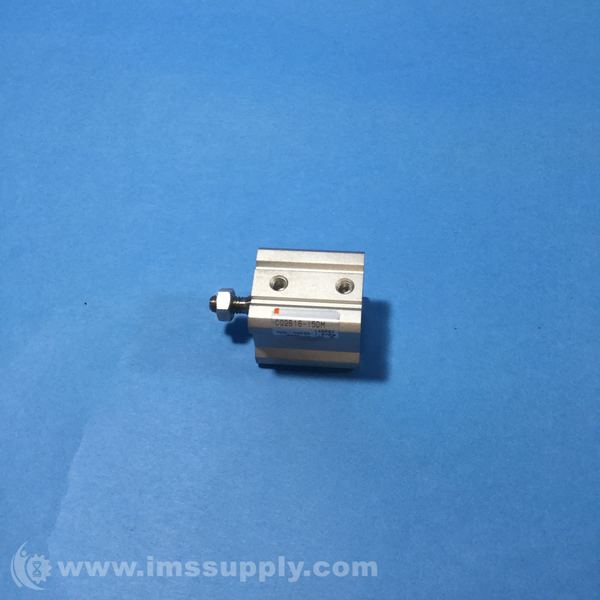

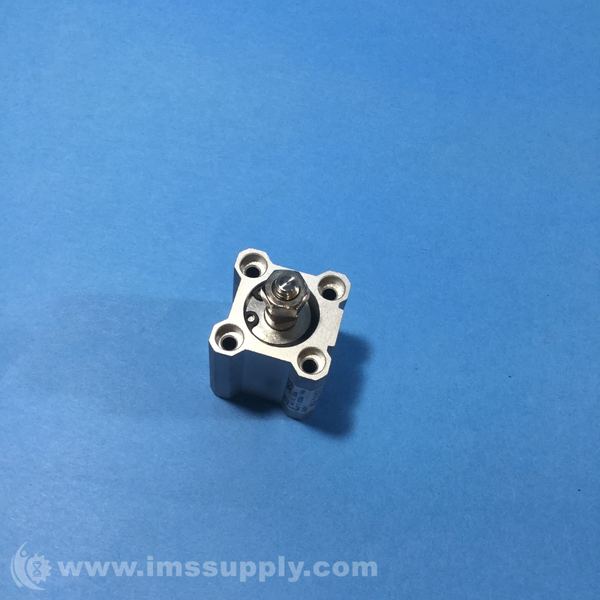

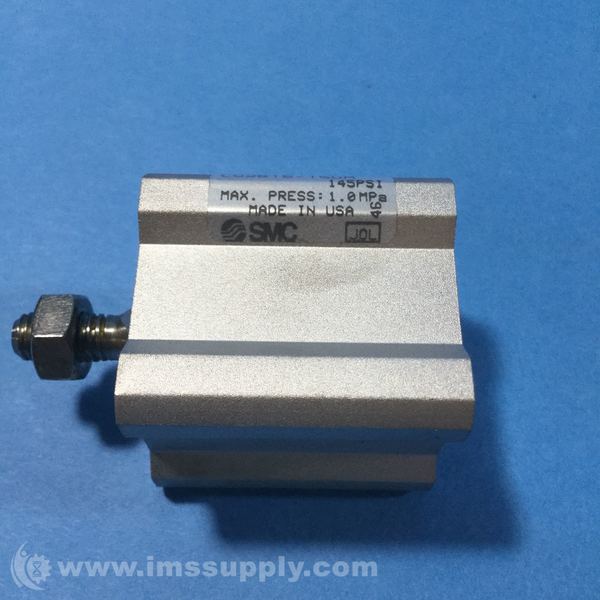

SMC CQ2B16-15DM Compact Cylinder
Compact air cylinder with through-hole mounting, 16 mm bore diameter, 15 mm stroke, double-acting, single rod with male thread.
Specifications
- Series: CQ2
- Bore Diameter: 16 mm
- Stroke: 15 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: M6x1 Male ISO
- Port Size: M5x0.8
- Cushion Type: None
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.07 to +1 MPa
- Push Force At 100 Psi: 141 N
- Pull Force At 100 Psi: 106 N
- Operating Temperature Range: -10 to +70 degrees C
- Standards Met: JIS
- Overall Length: 49 mm
- Overall Width: 29 mm
- Overall Height: 29 mm
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.07 MPa
- Port Gender: Female
- Port Thread Standard: ISO
- Rod Gender: Male
- Mounting Type: Through Hole
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
