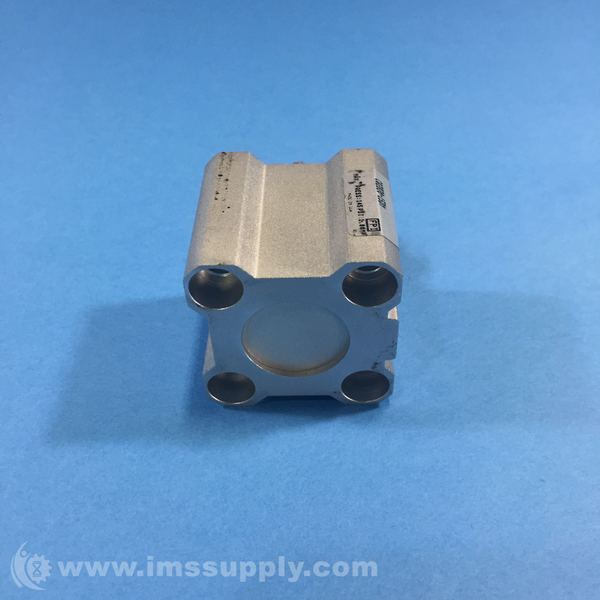

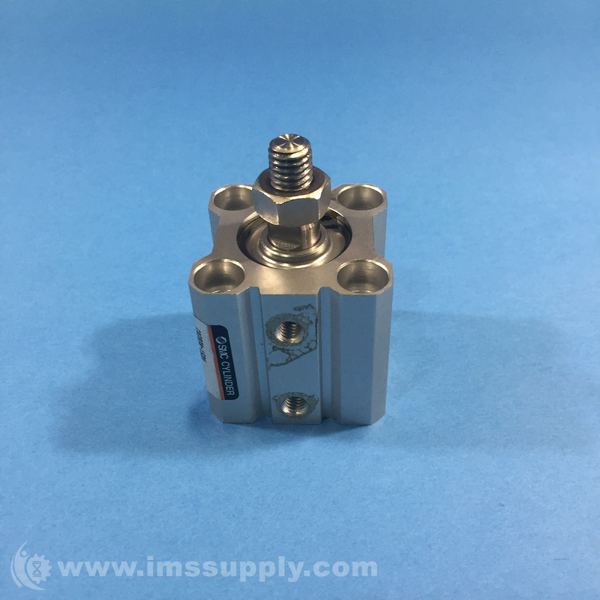

SMC CQ2B20-15DM COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CQ2B20-15DM
IMS Product Code: 1818649
Packaging: Sold Individually
Description:
SMC CQ2B20-15DM Compact Cylinder
Double acting, single rod, compact cylinder
Specifications
- Series: CQ2
- Action: Double acting, Single rod
- Bore Diameter: 20 mm
- Stroke: 15 mm
- Rod Size / Thread: M8x1.25 Male ISO
- Port Size: M5x0.8
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.05 to +1 MPa
- Push Force At 100 Psi: 220 N
- Pull Force At 100 Psi: 165 N
- Operating Temperature Range: -10 to +70 degrees C
- Mounting Type: Through Hole
- Overall Length: 53 mm
- Overall Width: 36 mm
- Overall Height: 36 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 40 minutes.
