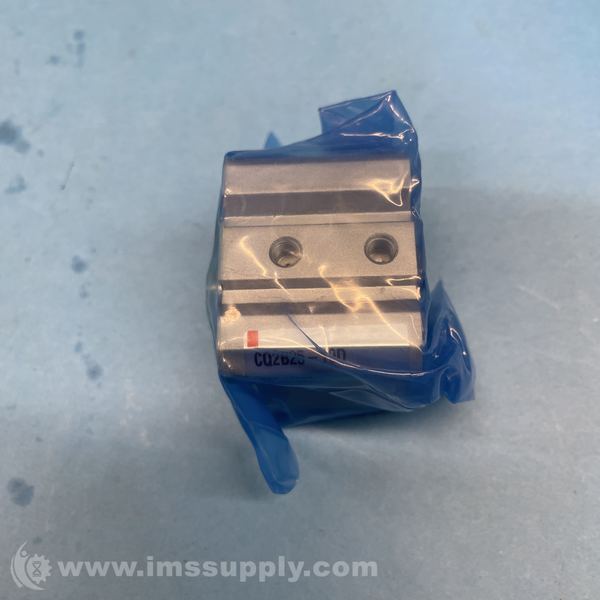

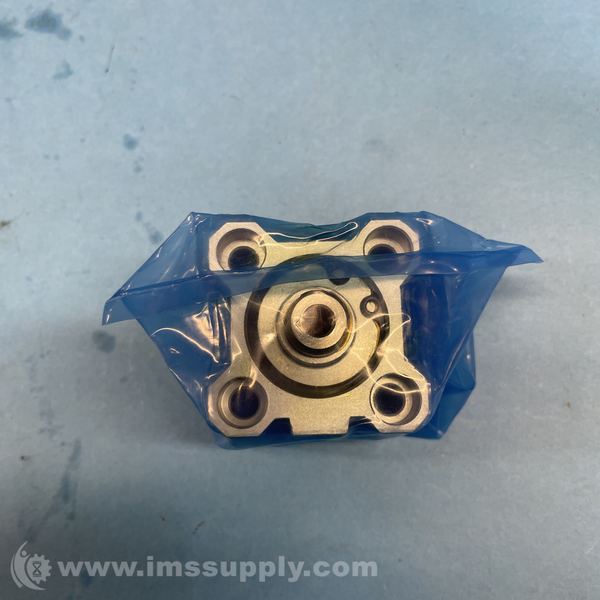

SMC CQ2B25-10D COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CQ2B25-10D
IMS Product Code: 2134859
Packaging: Sold Individually
Description:
SMC CQ2B25-10D Compact Cylinder
Double acting, single rod compact cylinder with 25mm bore diameter and 10mm stroke.
Specifications
- Series: CQ2
- Bore Diameter: 25 mm
- Stroke: 10 mm
- Action: Double acting, Single rod
- Rod Type: Single Rod
- Rod Size / Thread: M10x1.25 Female ISO
- Port Size: M5x0.8
- Operating Pressure Range: +0.05 to +1 MPa
- Push Force At 100 Psi: 344 N
- Pull Force At 100 Psi: 264 N
- Operating Temperature Range: -10 to +70 degrees C
- Overall Length: 37.5 mm
- Overall Width: 40 mm
- Overall Height: 40 mm
- Mounting Type: Through Hole
