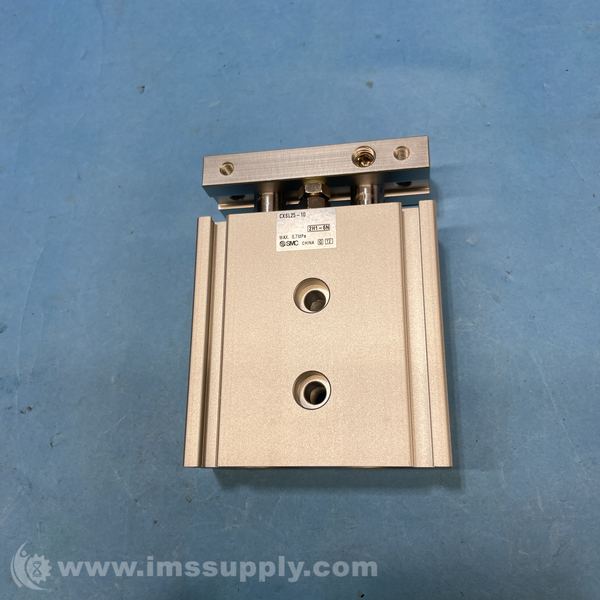

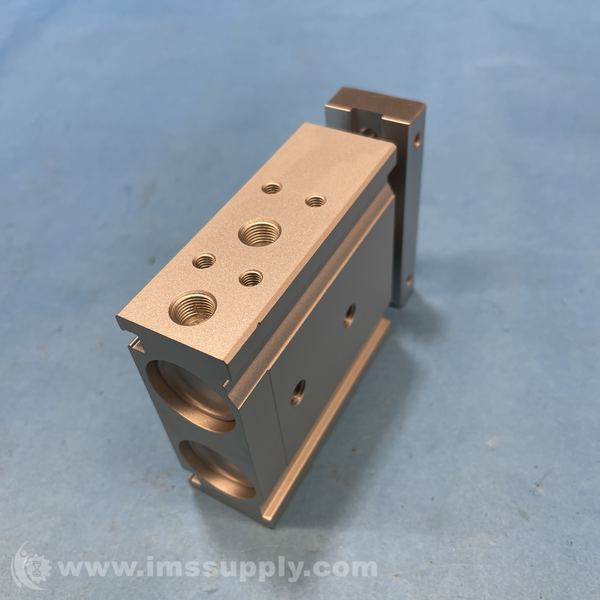

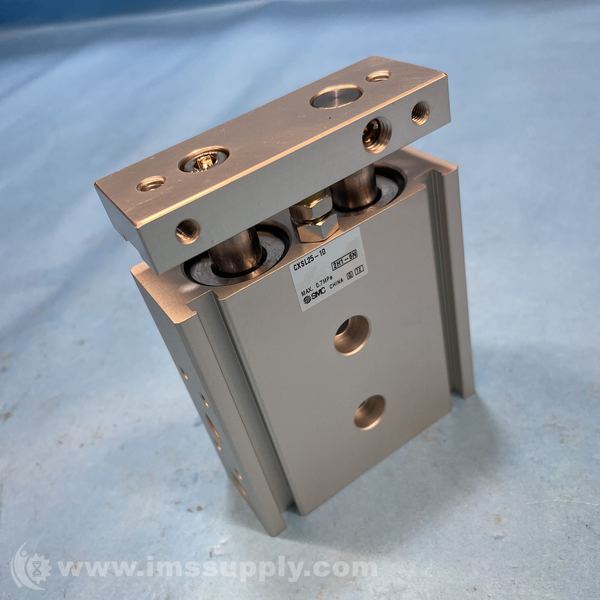

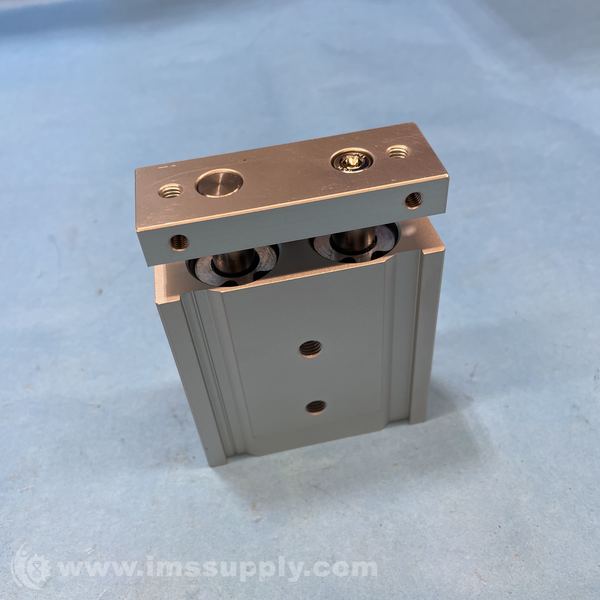

SMC CXSL25-10 DUAL ROD CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CXSL25-10
IMS Product Code: 2135177
Packaging: Sold Individually
Description:
SMC CXSL>25-10 Dual Rod Cylinder
SMC CXSL25-10 is a dual rod cylinder with ball bushing bearing, part of the CXS series. It features a compact design with a bore diameter of 25 mm and stroke length of 10 mm. The cylinder is double-acting with rubber bumper cushioning and 1/8 BSPT port connections.
Specifications
- series: CXS
- guided cylinder type: Dual Rod Slide Unit
- bore diameter: 25 mm
- stroke: 10 mm
- piston action: Double-Acting
- rod type: Double Rod
- bearings: Ball Bushing Bearing
- cushion type: Rubber Bumper
- port size: 1/8 BSPT
- port thread standard: BSPT
- port gender: Female
- rod gender: Female
- rod size: 12 mm
- operating pressure range: +0.05 to +0.7 MPa
- maximum operating pressure: +0.7 MPa
- minimum operating pressure: +0.05 MPa
- proof pressure: +1.05 MPa
- push force at 100 psi: 687 N
- pull force at 100 psi: 529 N
- operating temperature range: -10 to +60 degrees C
- overall length: 106 mm
- overall width: 80 mm
- overall height: 30 mm
- weight: 0.45 kgs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
