SMC CXSL25-50 DUAL ROD CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CXSL25-50
IMS Product Code: 1873736
Packaging: Sold Individually
Description:

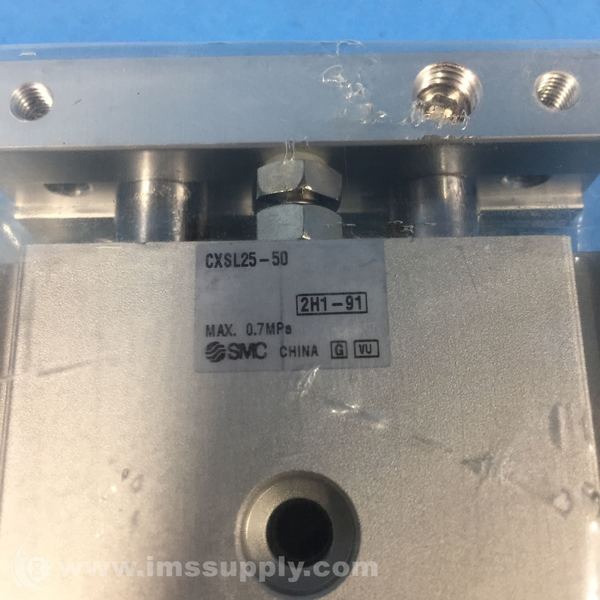

SMC CXSL25-50 Dual Rod Cylinder
SMC CXSL25-50 is a dual rod cylinder with a 25 mm bore diameter and 50 mm stroke length, featuring a compact design with high precision ball bushing for smooth operation and stable travel resistance.
Specifications
- Series: CXS
- Type: Dual Rod Cylinder
- Bore Diameter: 25 mm
- Stroke Length: 50 mm
- Cylinder Action: Double Acting
- Mounting Style: Through Hole
- Body Material: Aluminum
- Bearing Type: Ball Bushing
- Maximum Operating Pressure: 101.53 psi
- Maximum Operating Temperature: 140 degrees F
- Overall Height: 80 mm
- Overall Width: 30 mm
- Port Location: Side Ported
- Thread: Rc 1/8
- Weight: 1.92873 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
