SMC CXSM10-20 DUAL ROD CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CXSM10-20
IMS Product Code: 1793219
Packaging: Sold Individually
Description:

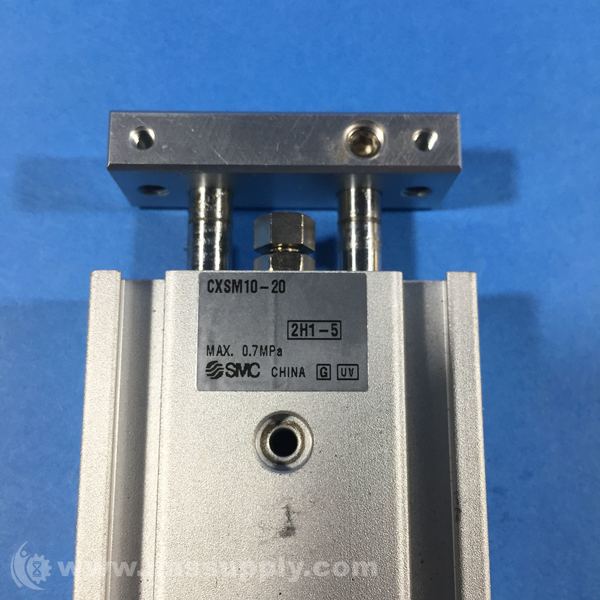

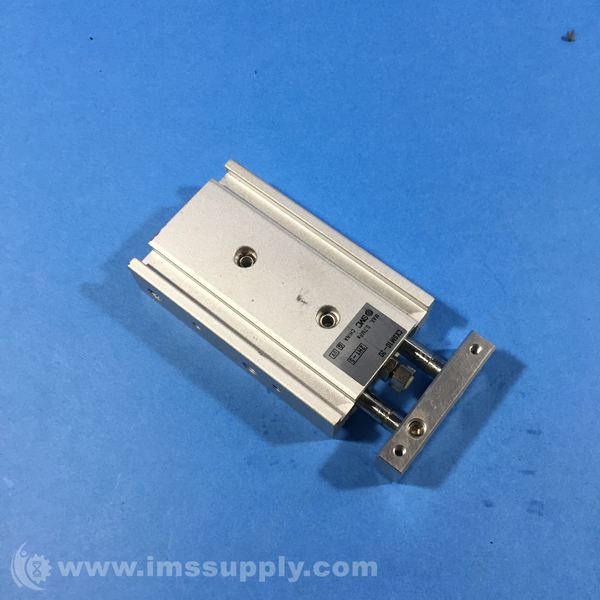

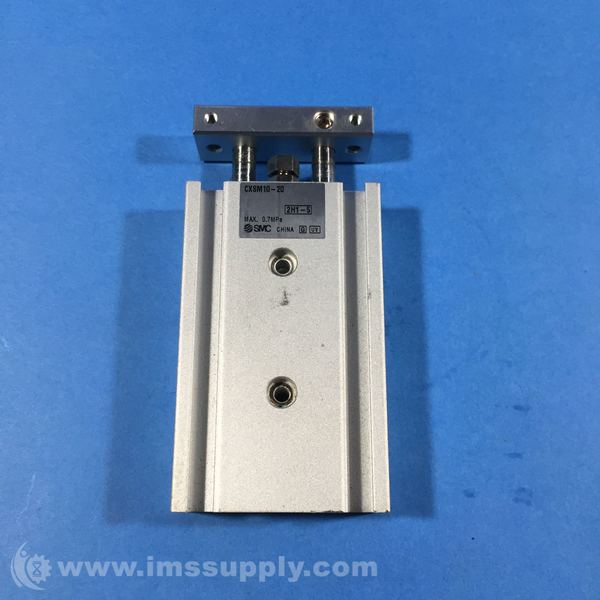

SMC CXSM10-20 Dual Rod Cylinder
Compact cylinder with high-precision guide function for pick & place applications
Specifications
- Bore Diameter: 10 mm
- Stroke: 20 mm
- Piston Action: Double-Acting
- Rod Type: Double Rod
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: M5x0.8
- Operating Pressure Range: +0.1 to +0.7 MPa
- Push Force At 100 Psi: 110 N
- Pull Force At 100 Psi: 70 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 92 mm
- Overall Width: 46 mm
- Overall Height: 17 mm
- Port Thread Standard: ISO
- Mounting Type: Direct
- Series: CXS
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships today if ordered in the next 9 hours and 3 minutes.
