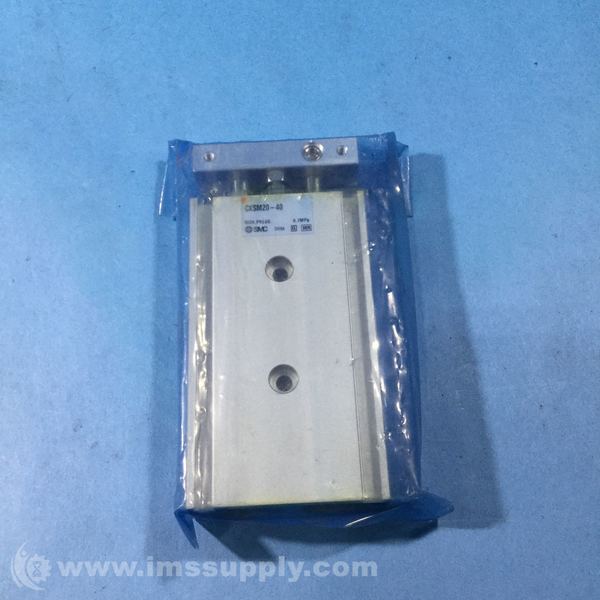

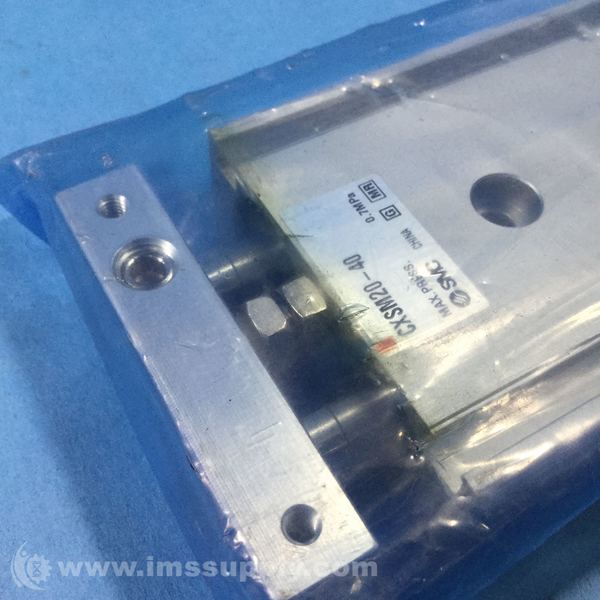

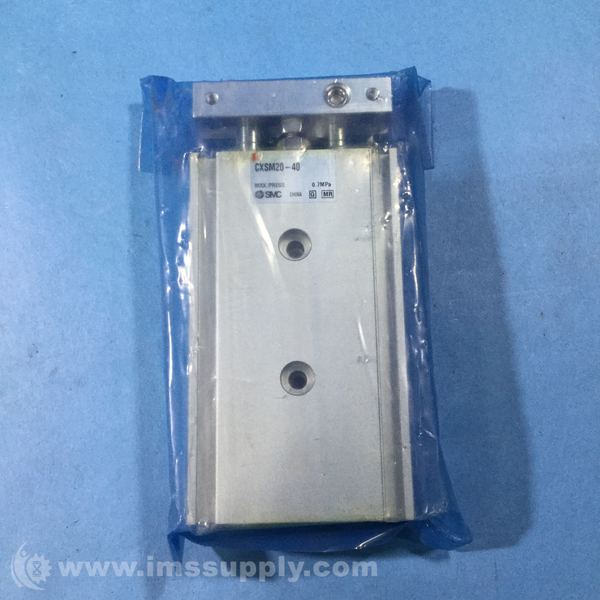

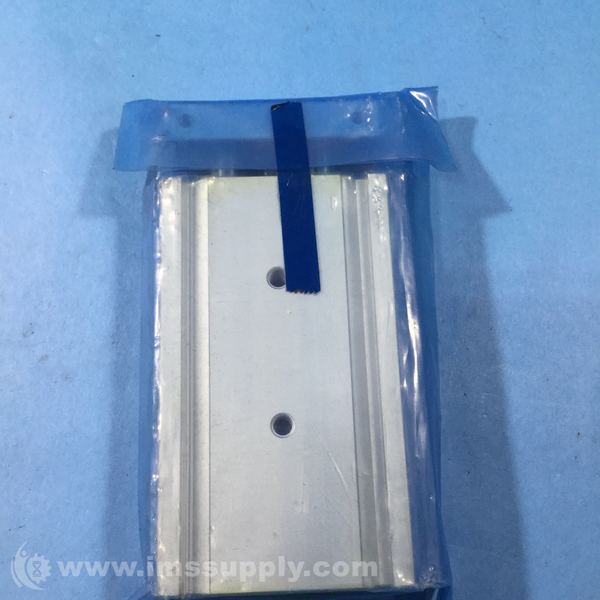

SMC CXSM20-40 GUIDED AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CXSM20-40
IMS Product Code: 1838166
Packaging: Sold Individually
Description:
SMC CXSM20-40 Guided Air Cylinder
Double-acting guided air cylinder with dual rod and slide bearing type.
Specifications
- Bore Diameter: 20 mm
- Stroke: 40 mm
- Piston Action: Double-Acting
- Rod Type: Double Rod
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: M5x0.8
- Proof Pressure: +1.05 MPa
- Operating Pressure Range: +0.05 to +0.7 MPa
- Push Force At 100 Psi: 440 N
- Pull Force At 100 Psi: 330 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 134 mm
- Overall Width: 64 mm
- Overall Height: 25 mm
- Port Thread Standard: ISO
- Mounting Type: Direct
- Maximum Operating Pressure: +0.7 MPa
- Minimum Operating Pressure: +0.05 MPa
- Piping Type: Standard Piping
- Port Gender: Female
- Rod Gender: Female
- Rod Size: 10 mm
- Series: CXS
- Product Type: Guided Air Cylinders
- Weight: 558g
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, February 9, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
