SMC CXSM32-20 GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CXSM32-20
IMS Product Code: 1902797
Packaging: Sold Individually
Description:

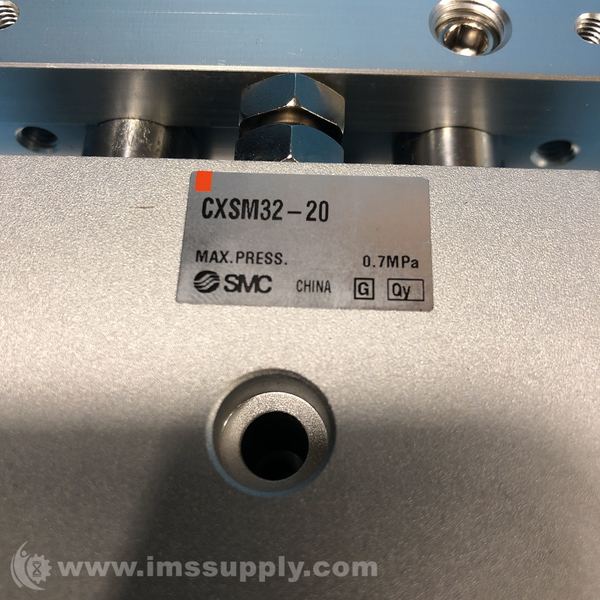

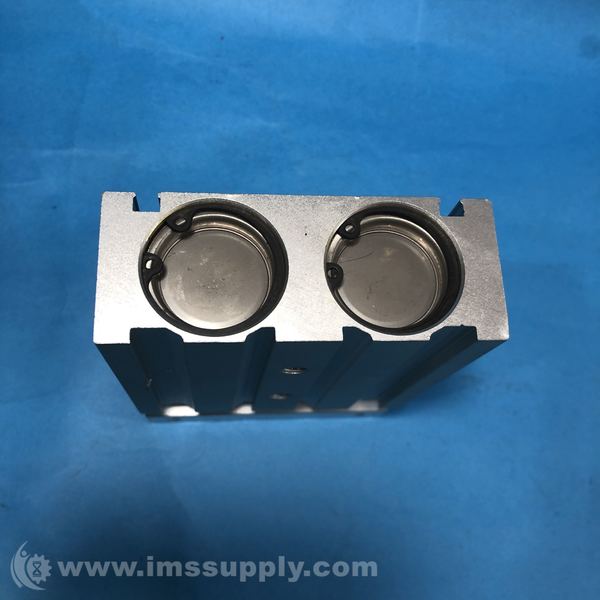

SMC CXSM32-20 Guided Cylinder
Dual rod guided cylinder with slide bearing, 32mm bore diameter, 20mm stroke, double-acting.
Specifications
- Bore Diameter: 32 mm
- Stroke: 20 mm
- Piston Action: Double-Acting
- Rod Type: Double Rod
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: 1/8 BSPT
- Operating Pressure Range: +0.05 to +0.7 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 132 mm
- Overall Width: 98 mm
- Overall Height: 38 mm
- Mounting Type: Direct
- Series: CXS
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, February 9, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
