SMC CXSM32-60 GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CXSM32-60
IMS Product Code: 1787489
Packaging: Sold Individually
Description:

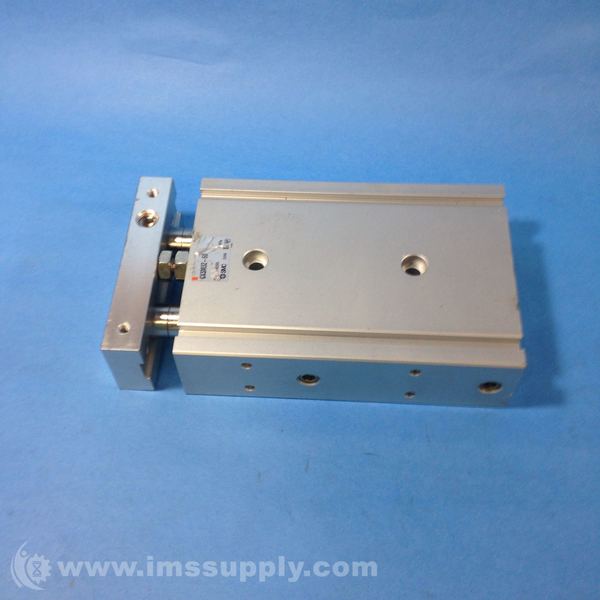

SMC CXSM32-60 Guided Cylinder
Double-acting guided cylinder with slide bearing and dual rod design
Specifications
- Bore Size: 32 mm
- Stroke: 60 mm
- Type: CXS Slide Bearing
- Rod Type: Double Rod
- Cushion Type: Rubber Bumper
- Port Size: 1/8 BSPT
- Operating Pressure Range: +0.05 to +0.7 MPa
- Push Force At 100 Psi: 1126 N
- Pull Force At 100 Psi: 844 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 172 mm
- Overall Width: 98 mm
- Overall Height: 38 mm
- Mounting Type: Direct
- Series: CXS
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 8 hours and 52 minutes.
