SMC CY3B20-150 MAGNETICALLY COUPLED RODLESS CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CY3B20-150
IMS Product Code: 2145216
Packaging: Sold Individually
Description:

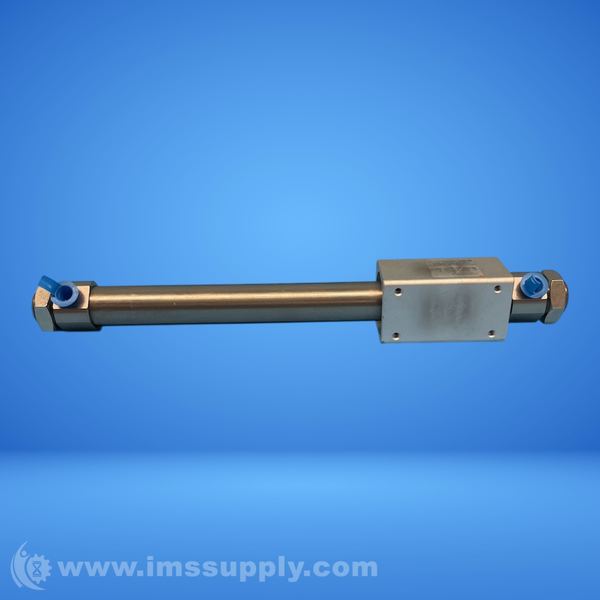

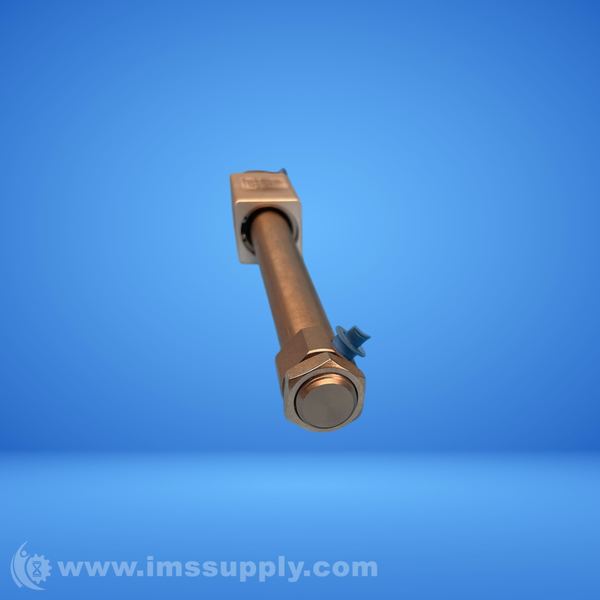

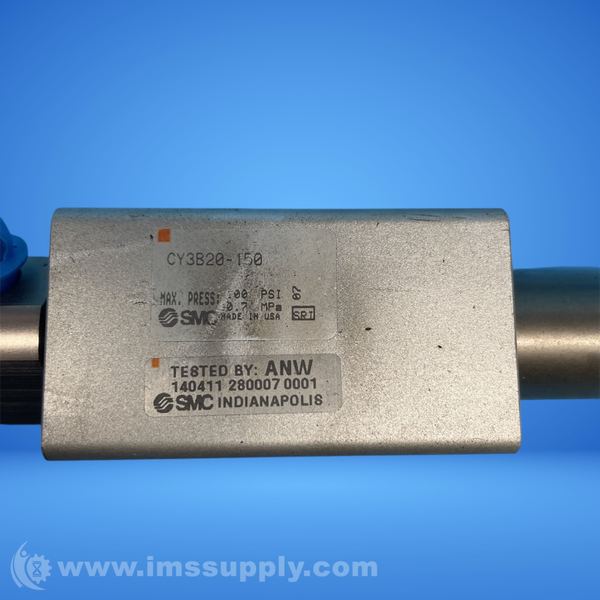

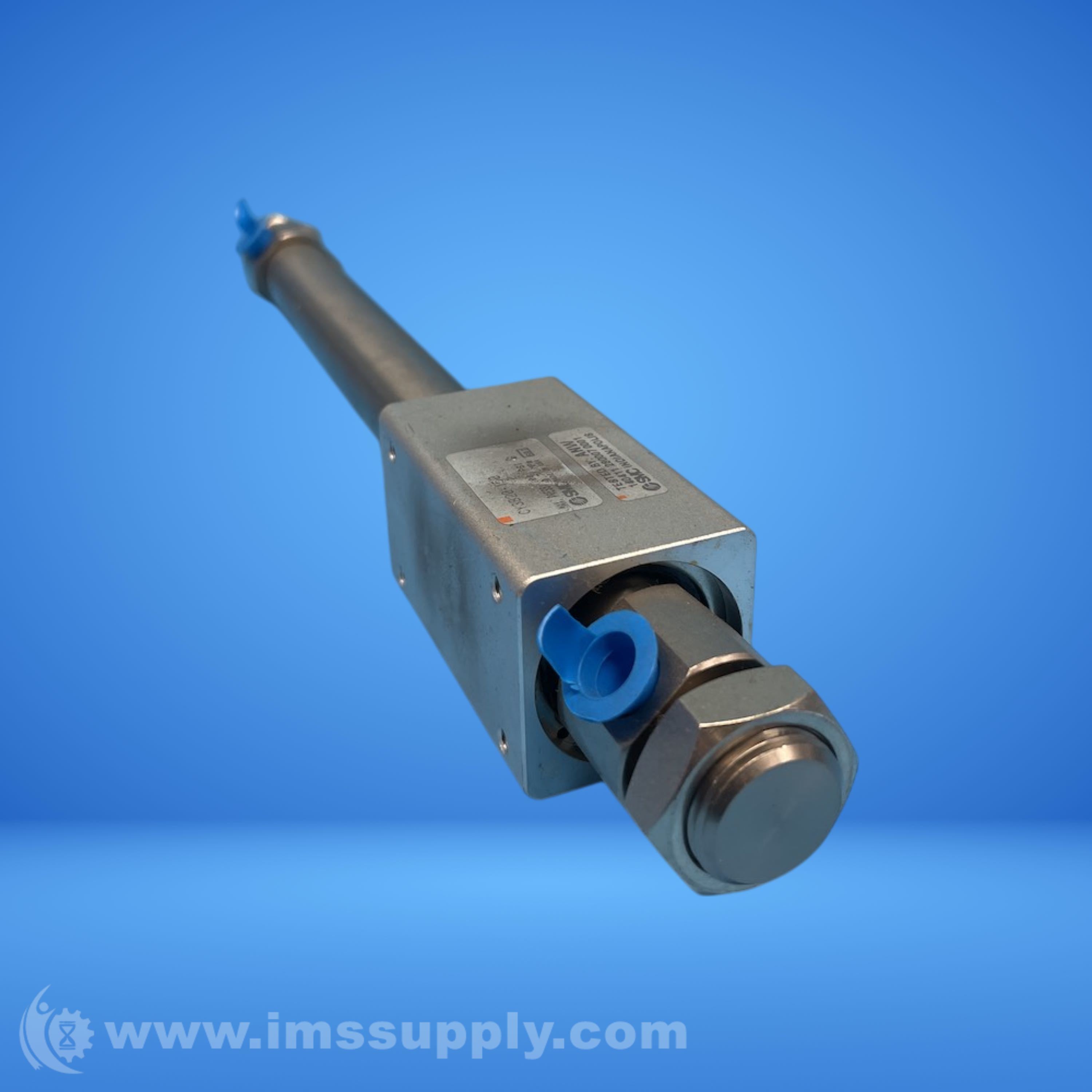

SMC CY3B20-150 Magnetically Coupled Rodless Cylinder
Magnetically coupled rodless cylinder with 20 mm bore size and 150 mm stroke. Double-acting with rubber bumper cushioning. BSPT port threads. Basic type with no stroke adjuster.
Specifications
- Bore Diameter: 20 mm
- Stroke: 150 mm
- Cushion Type: Rubber Bumper
- Piston Action: Double-Acting
- Port Thread Standard: BSPT
- Port Size: 1/8 BSPT
- Port Gender: Female
- Stroke Adjuster Type: None
- Mounting Orientation: Horizontal, Inclined, Vertical
- Operating Temperature Range: 14 to 140 degrees F
- Operating Pressure Range: 23 to 102 psi
- Proof Pressure: 152 psi
- Overall Length: 282 mm
- Overall Width: 36 mm
- Overall Height: 36 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
