SMC CY3RG20-500-M9BW RODLESS CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CY3RG20-500-M9BW
IMS Product Code: 2146234
Packaging: Sold Individually
Description:

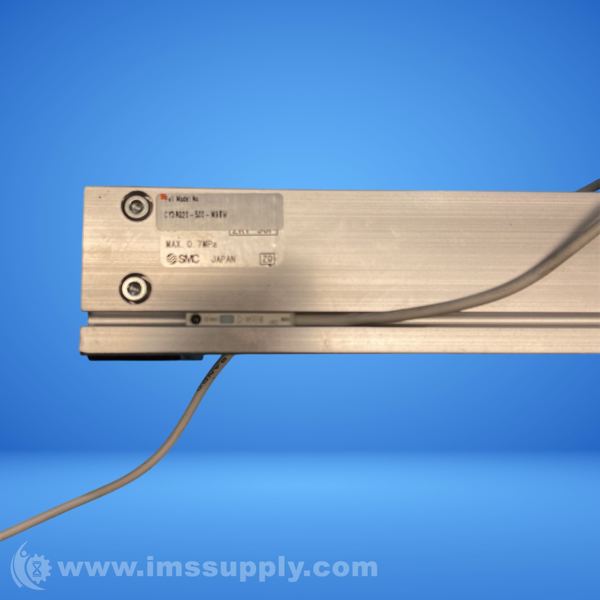

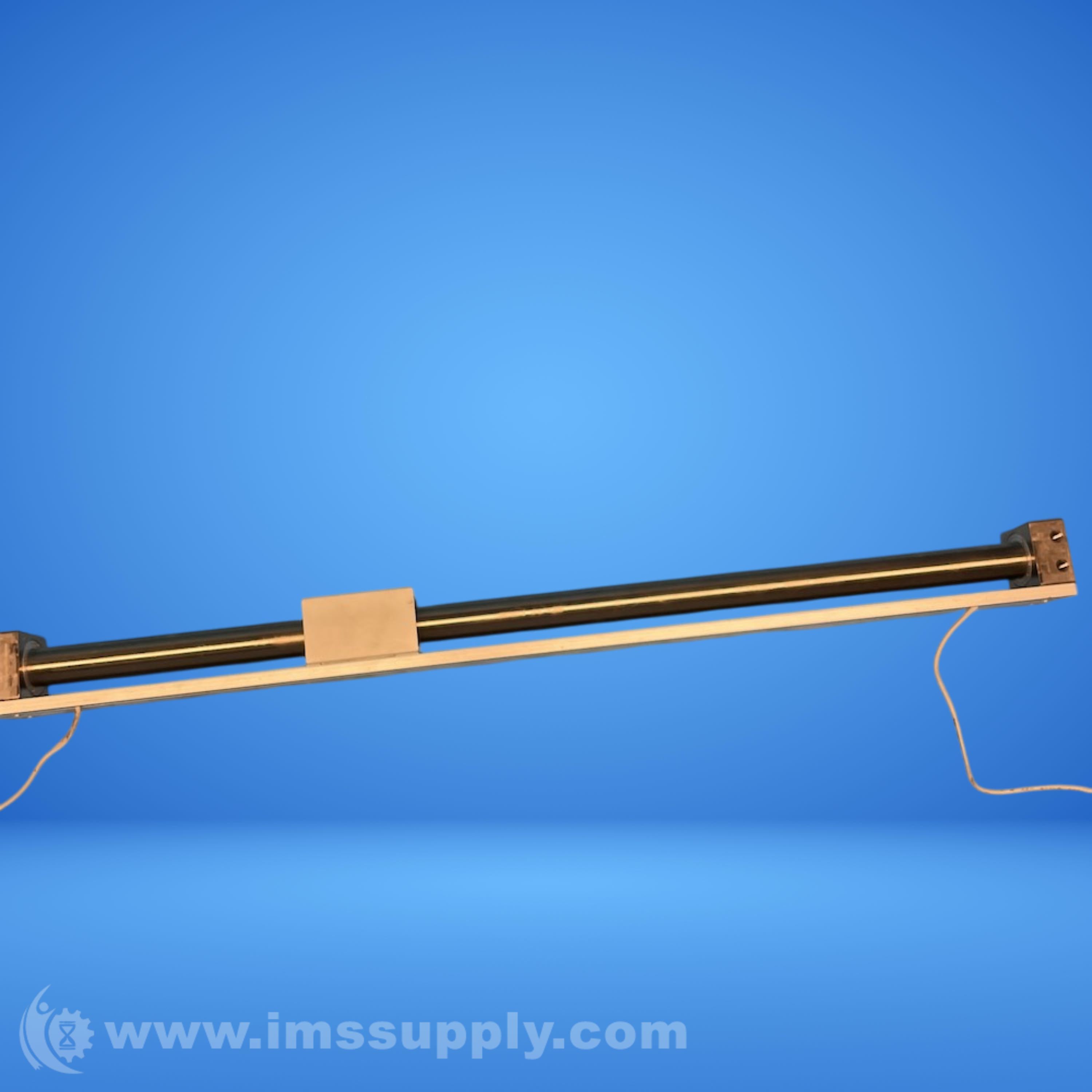

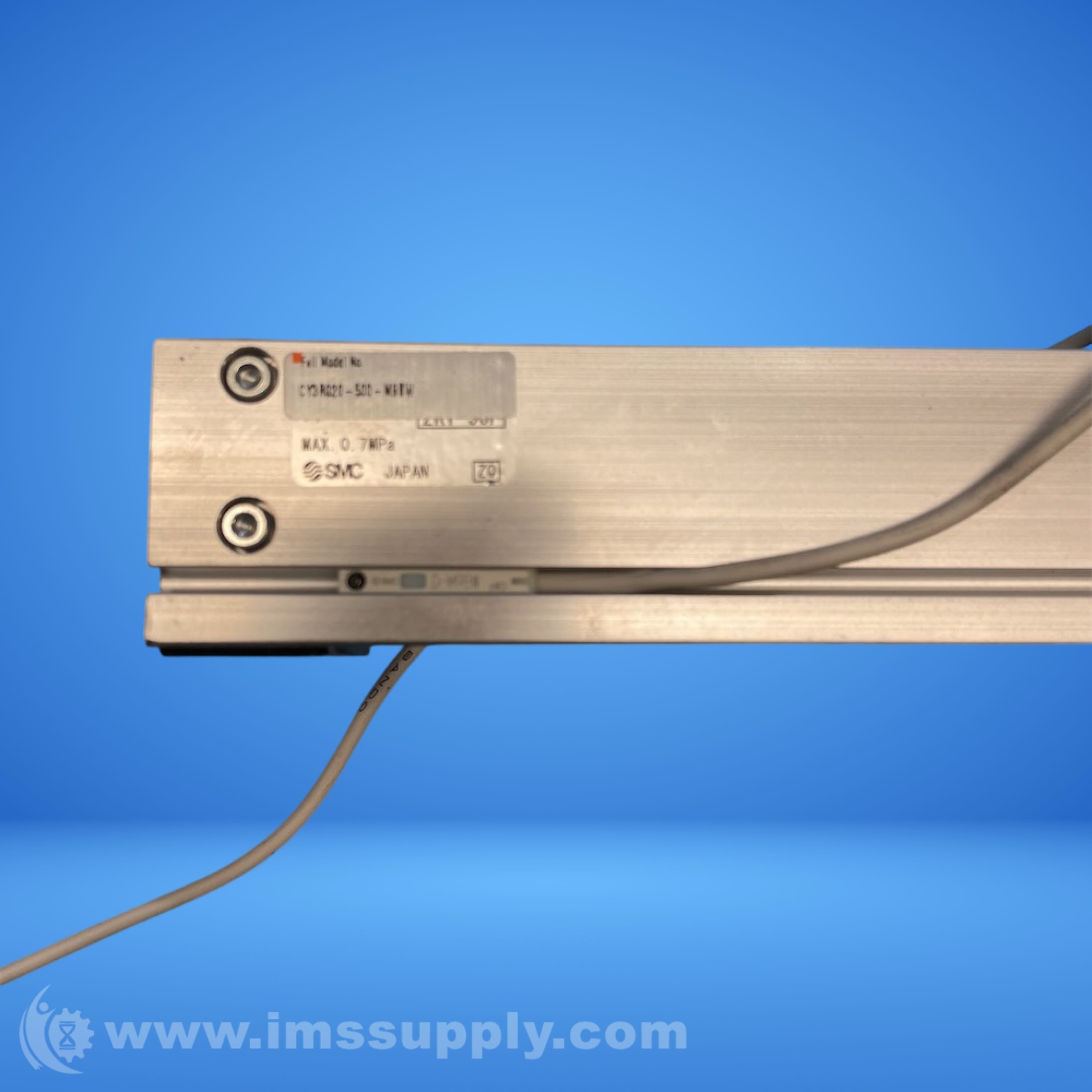

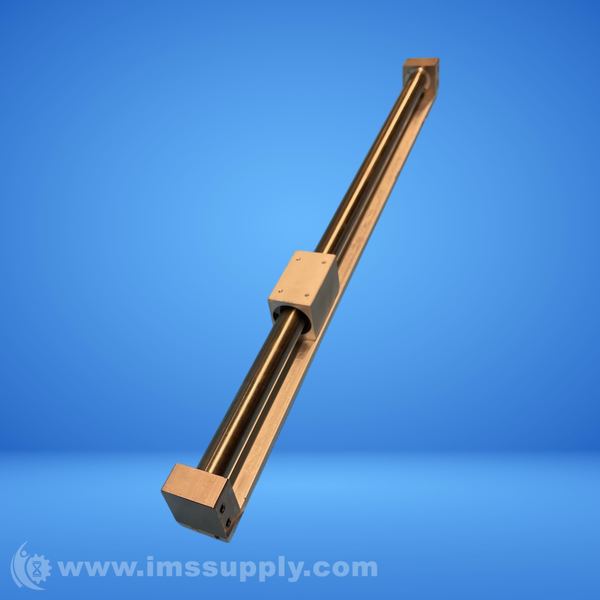

SMC CY3RG20-500-M9BW Rodless Cylinder
Magnetically coupled rodless cylinder with 20mm bore size and 500mm stroke.
Specifications
- Bore Diameter: 20 mm
- Stroke: 500 mm
- Cylinder Style: Magnetically Coupled
- Guide Type: Direct Mount
- Cushion Type: Rubber Bumper
- Piston Action: Double-Acting
- Port Thread Standard: BSPT
- Port Size: 1/8 BSPT
- Auto-Switch: M9BW - Solid State, 2-Color Indication, 2 Wire, Horizontal
- Piping Type: Centralized Piping
- Port Gender: Female
- Stroke Adjuster Type: None
- Number Of Auto Switches: 2
- Options Included: Magnetized, Switch Rail, Switch Ready
- Mounting Orientation: Horizontal, Inclined, Vertical
- Operating Temperature Range: 14 to 140 degrees F
- Overall Height: 39 mm
- Overall Width: 46 mm
- Overall Length: 607 mm
- Operating Pressure Range: 23 to 102 psi
- Minimum Operating Pressure: 23 psi
- Maximum Operating Pressure: 102 psi
- Proof Pressure: 152 psi
- Seal Kit: CY3R20-PS
- Mounting Type: Direct Mount
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
