SMC D-A73C REED AUTO SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: D-A73C
IMS Product Code: 1215943
Packaging: Sold Individually
Description:

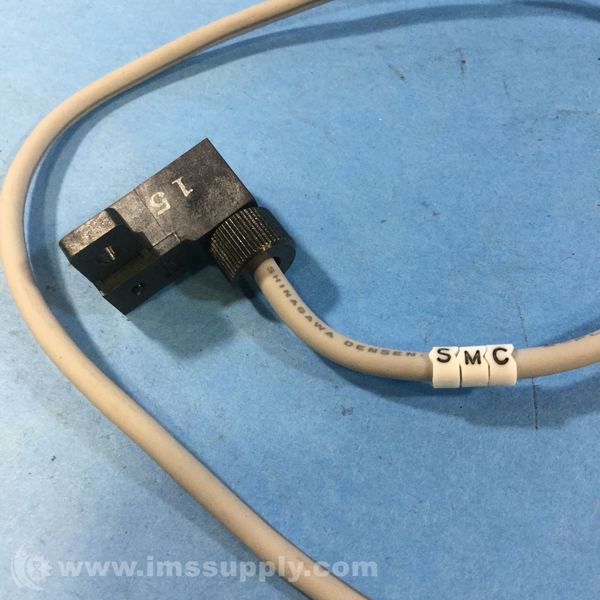

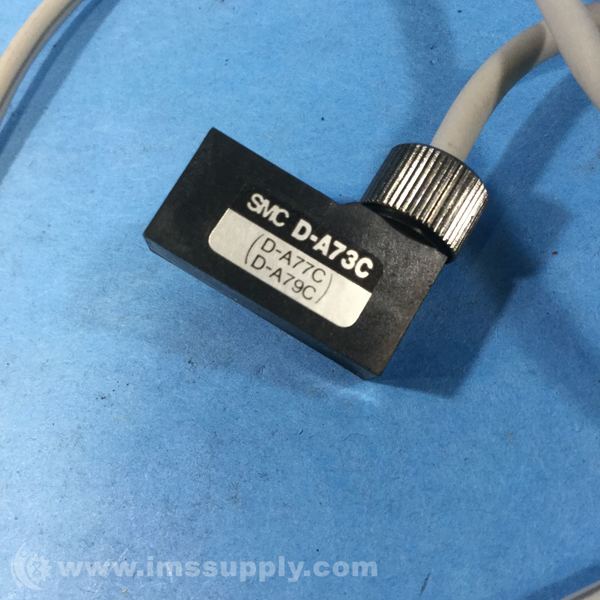

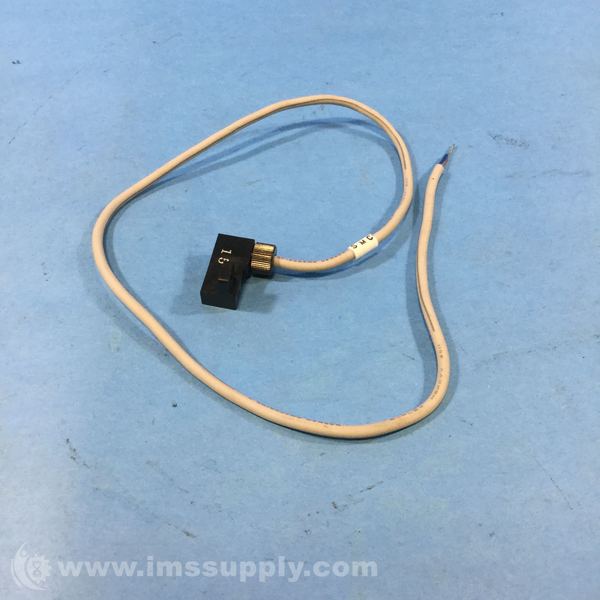

SMC D-A73C Reed Auto Switch
Rail mounting-style reed auto switch sensor for CQ2/NCQ2 cylinders, with 0.5m lead wire and 24VDC electrical rating.
Specifications
- Type: Reed
- Operating Voltage: 24VDC
- Maximum Current: 5 ~ 40mA
- Applicable Load: PLC, Relay
- Electrical Connection: 0.5m Lead Wire
- Fluid Comp: Air
- Maximum Load Current: 40 mA
- Maximum Load Voltage: 24 V dc
- Mounting Type: Rail
- Operating Temperature Range: -10 to +60 degrees C
- Overall Height: 18.6 mm
- Overall Length: 24 mm
- Overall Width: 17.3 mm
- Series: D-
- Standards Met: CE, IEC 529, IP67, JIS C 0920
- Switch Action: Reed
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
