SMC ISG220-030 PRESSURE SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: ISG220-030
IMS Product Code: 2126693
Packaging: Sold Individually
Description:

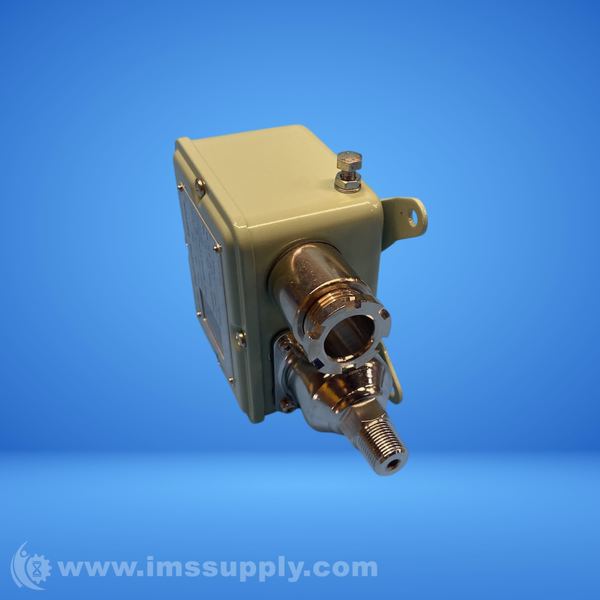

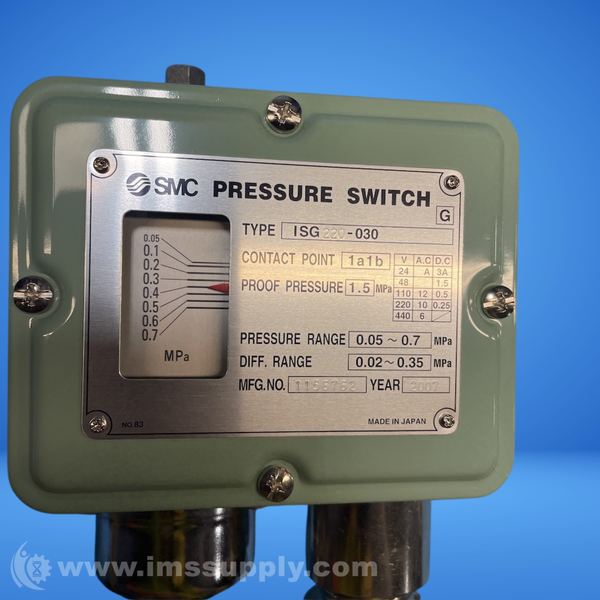

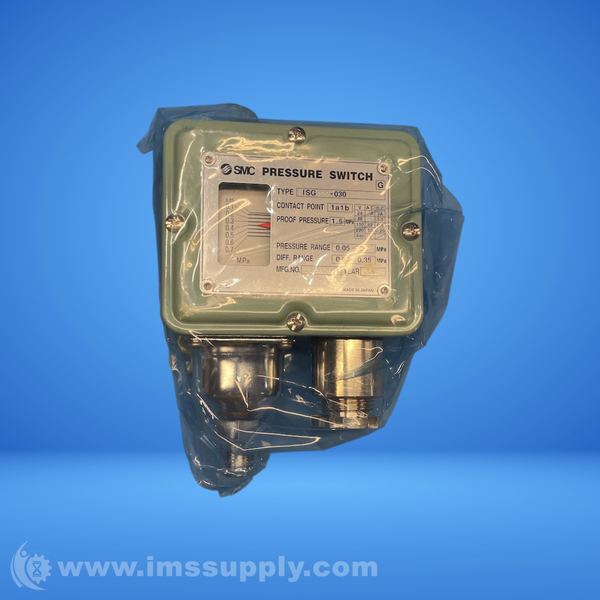

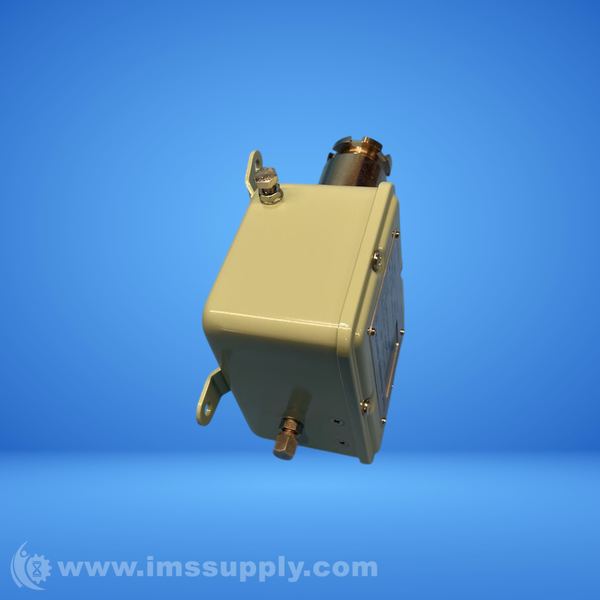

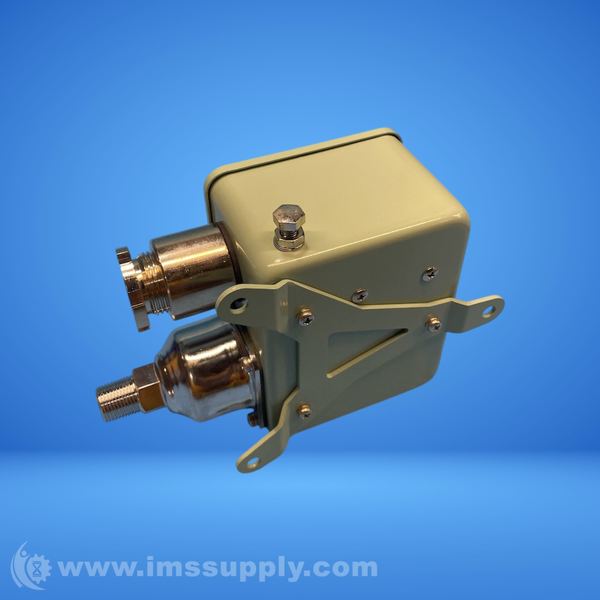

SMC ISG220-030 Pressure Switch
Mechanical pressure switch suitable for various gases and liquids
Specifications
- Operating Pressure Range: 0.05 to 0.7 MPa
- Hysteresis Adjusting Range: 0.02 to 0.35 MPa
- Proof Pressure: 1.5 MPa
- Repeatability: ±0.014 MPa
- Body Material in Contact with Fluid: Brass, Phosphor Bronze
- Piping Type: Body Ported
- Operating Temperature Range: +5 to +80 degrees C
- Mounting Type: Bracket
- Overall Height: 71 mm
- Overall Length: 157.5 mm
- Port 1 Size/Type: 3/8 BSPT
- Series: IS
- Weight: 1.3 kg
- Contacts: 1a1b (Standard)
- Enclosure: Dripproof (Equivalent To IP44)
- Fluid Contact Material: Brass/Phosphor Bronze
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
