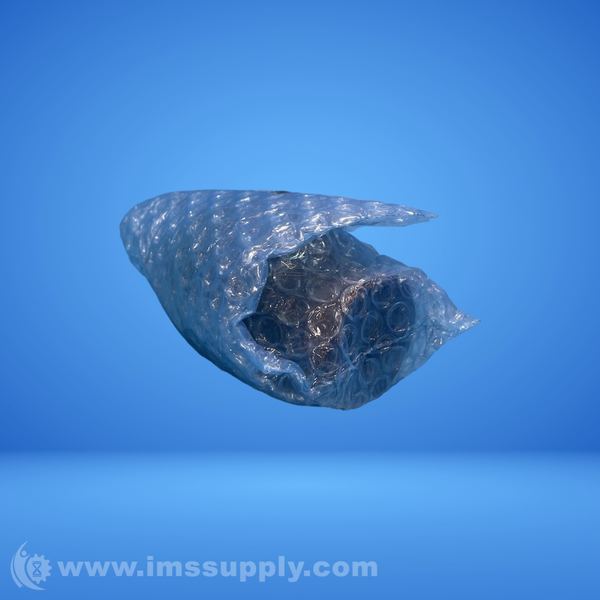

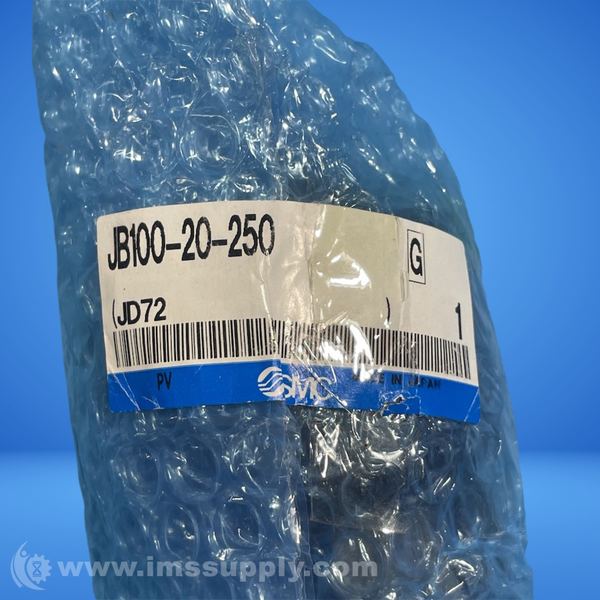

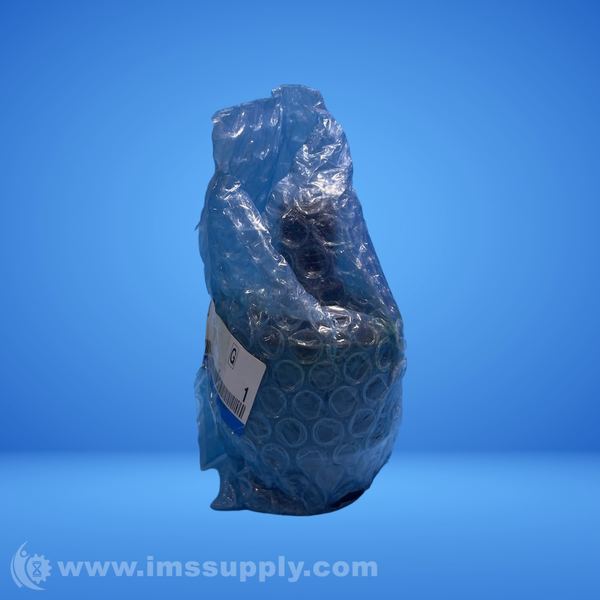

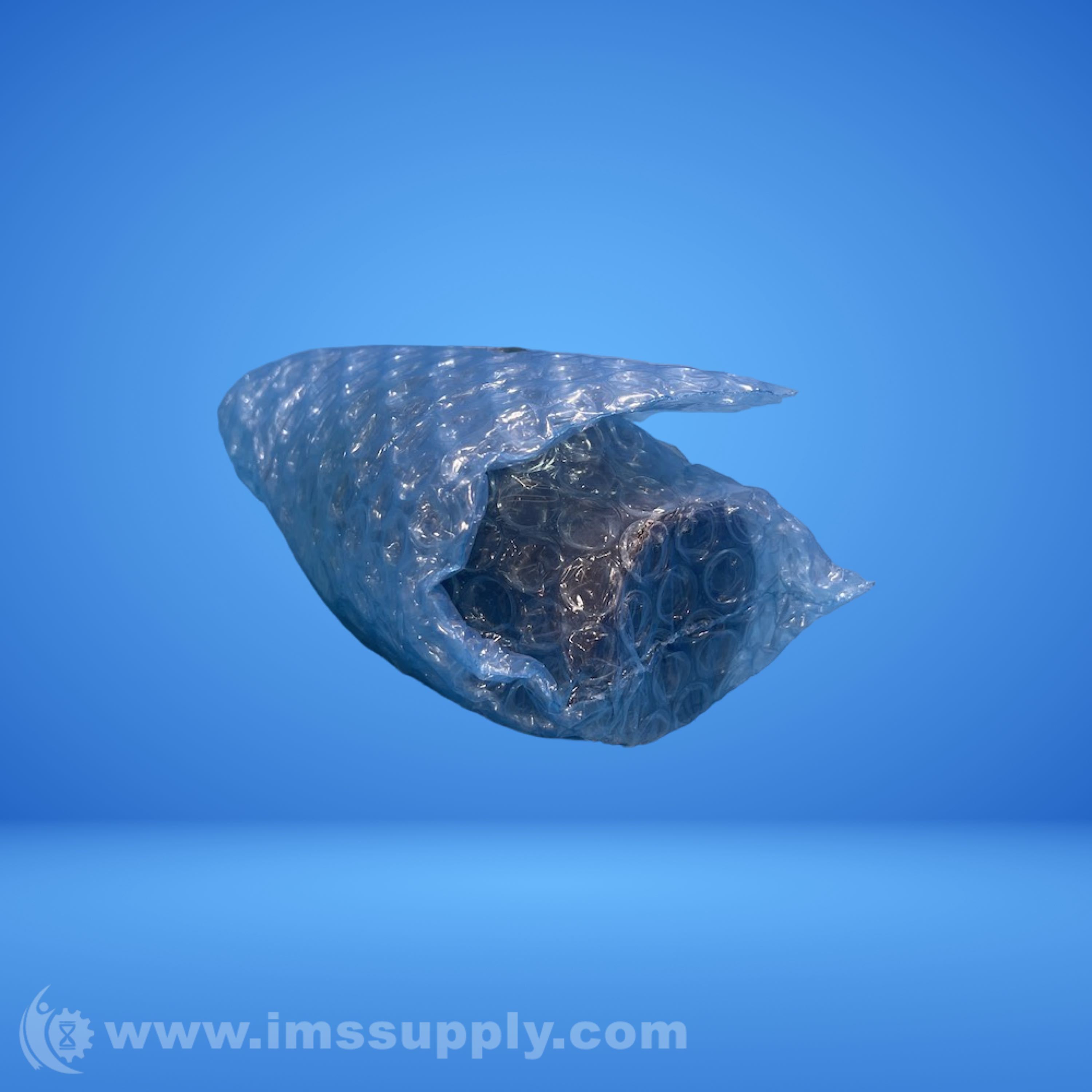

SMC JB100-20-250 FLOATING JOINT
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: JB100-20-250
IMS Product Code: 1921470
Packaging: Sold Individually
Description:
SMC JB100-20-250 Floating Joint
Pneumatic floating joint for compact cylinders, M20 x 2.5 thread size, fits 100 mm bore diameter
Specifications
- Connecting Thread Nominal M: 20
- Connecting Thread Nominal p: 2.5
- Allowable Misalignment U: ±5°
- Applicable cylinder bore size: 100
- Applicable cylinder nominal thread: M20*1.5
- Nominal Size: M20 x 2.5
- Body Material: Brass
- Thread Size: M20 x 2.5
- Fits Bore Diameter: 100 mm
- Overall Width: 59.5 mm
- Overall Height: 101 mm
- Weight: 1.04 kg
- Series: JB
- Type: Pneumatic
- Mounting: basic style (female thread)
- System of Measurement: Metric
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 1 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 14 hours and 1 minutes.
