SMC KQ2H10-02AS MALE ELBOW CONNECTOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: KQ2H10-02AS
IMS Product Code: 2147116

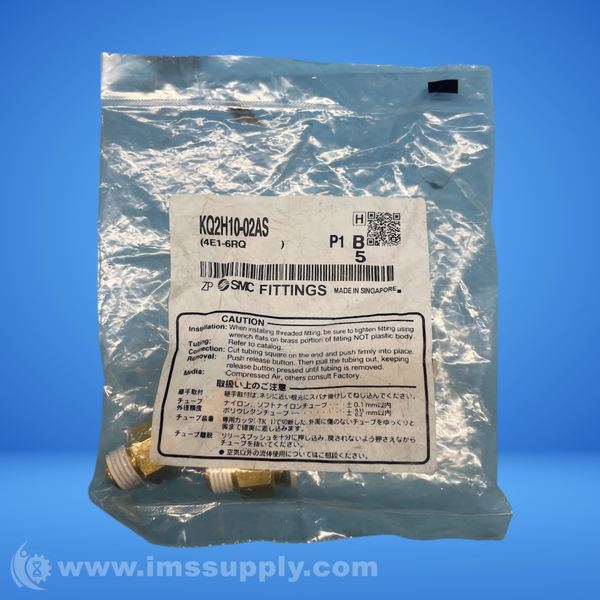

Packaging: Pack of 5
Description:

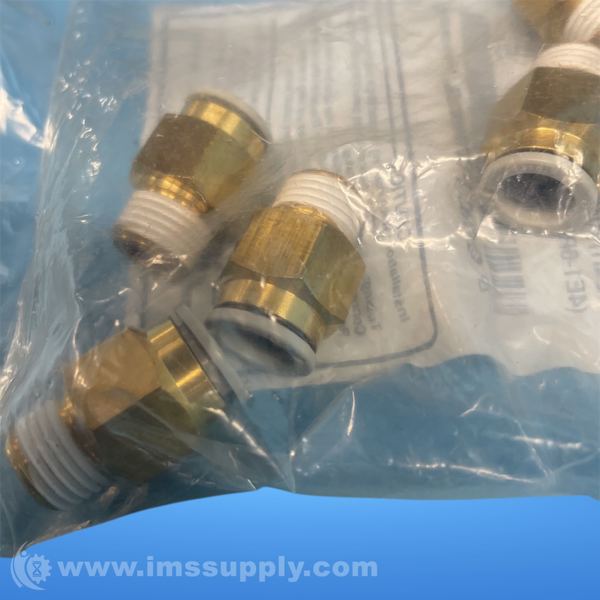

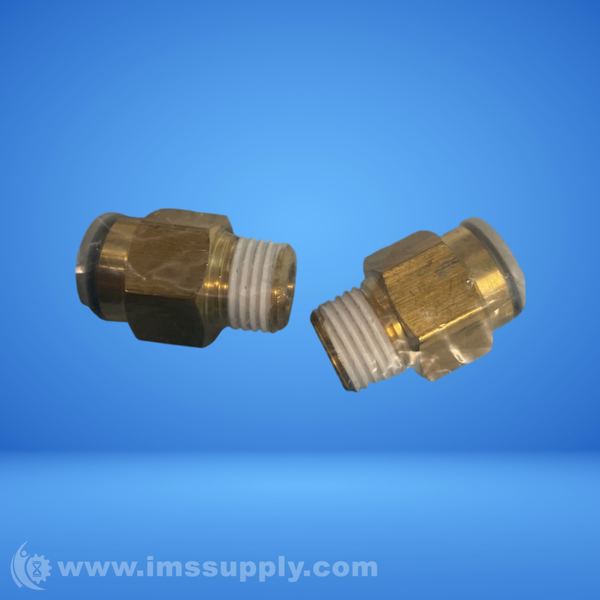

SMC KQ2H10-02AS Male Elbow Connector
SMC KQ2H10-02AS One-touch Fitting, KQ2H Series, 10mm Tube OD, Male Elbow Connector, 1/4 BSPP Thread
Specifications
- Series: KQ2
- Size: 10MM
- Weight: 0.04865 lb
- Dimensions: 15.6 mm Dia x 27.3 mm L
- End Style: Male Threaded x Push-In
- Fitting/Connector Type: Connector
- Hex Size: 17 mm
- Material: Brass
- Nominal Size: 10 mm x R-1/4
- Pressure Rating: -100 kPa to 1 MPa
- Temperature Rating: -5 to 60 deg C
- Fitting Shape: Straight
- Compatible Tube Outer Diameter: 10 mm
- Operating Temperature Range: -5 to +60 °C, 0 to +40 (Water) °C
- Connection 1 Short Name: Push-In
- Body Material: STANDARD TUBING, WITH THREAD SEALANT
- Connection 2 Short Name: BSP
- Operating Pressure Range: -100 kPa to +1 MPa
- Country of Origin: SG
- Number Of Ports: 2
- Burst Pressure: 3 MPa
- Max Operating Temperature: +40 (Water) °C, +60 °C
- Color: White Body, Light Gray Release Button
- Min Operating Temperature: -5 °C, 0 (Water) °C
- Flow Control Type: None
- Overall Length: 33 mm
- Standards Met: JIS
- Fitting Connection Family: Push-In to BSP
- Seal: With Sealant
- Tube O.D.: 10mm
- Thread Size: 1/4
- Thread Type: BSPP
- Connector Type: Male Elbow
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
