SMC KQ2K04-M6A 45 DEGREE MALE ELBOW FITTING
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: KQ2K04-M6A
IMS Product Code: 2129624
Packaging: Bag of 10
Description:

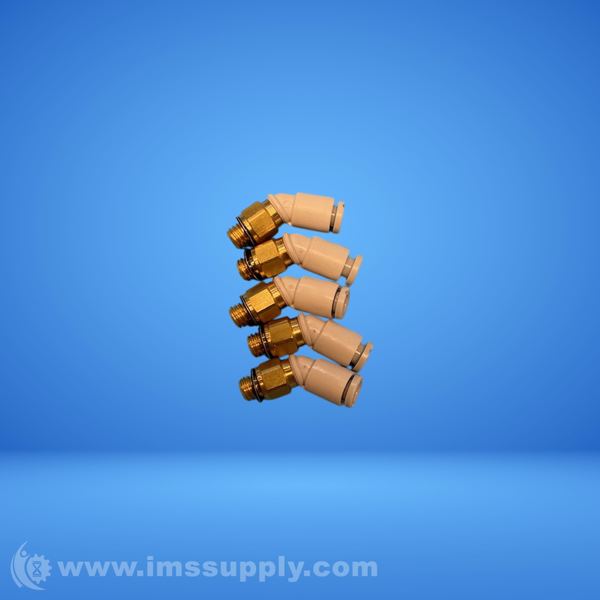

SMC KQ2K04-M6A 45 Degree Male Elbow Fitting
45 degree male elbow fitting with push-in connection for 4mm tube outer diameter and M6x1.0 male ISO thread. Made of brass and polybutylene terephthalate. Suitable for compressed air and non-potable water applications.
Specifications
- Series: KQ2
- Fitting Shape: 45° Elbow
- Compatible Tube Outer Diameter: 4 mm
- Thread Type: M6x1.0 Male ISO
- Body Material: Polybutylene Terephthalate
- Material: Brass, Polybutylene Terephthalate
- Operating Temperature Range: -5 to +60 °C (No Freezing), 0 to +40 °C (Water)
- Operating Pressure Range: -100 kPa to +1 MPa
- Burst Pressure: 3 MPa
- Number Of Ports: 2
- Color: White
- Hex Size: 8 mm
- Overall Length: 32 mm
- Standards Met: JIS
New - Open Box (Special):
BAG NORMALLYS COMES AS A BAG OF 10 NOW IS A BAG OF 5.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 13 minutes.
