SMC KQ2R04-06A PUSH-IN FITTING
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: KQ2R04-06A
IMS Product Code: 1798277
Packaging: Sold Individually
Description:

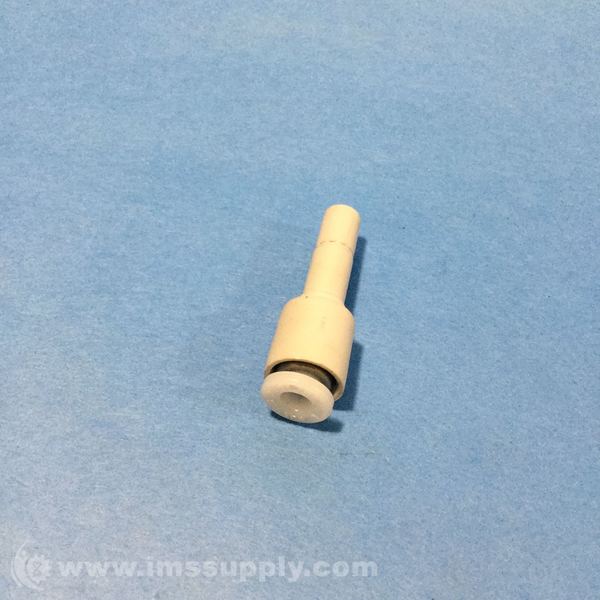

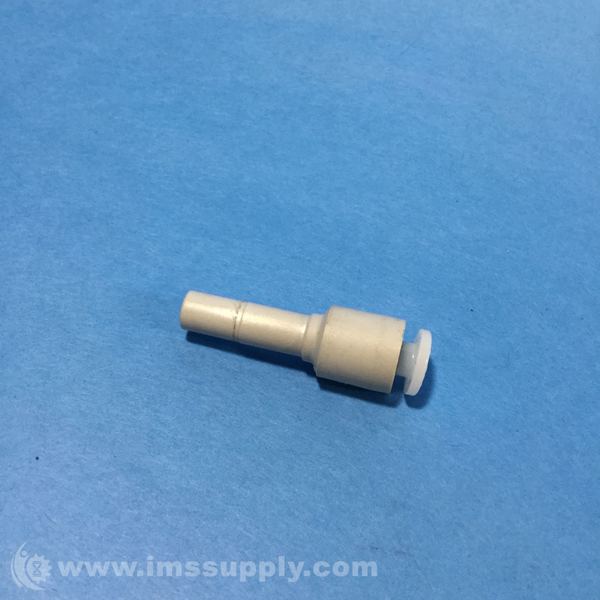

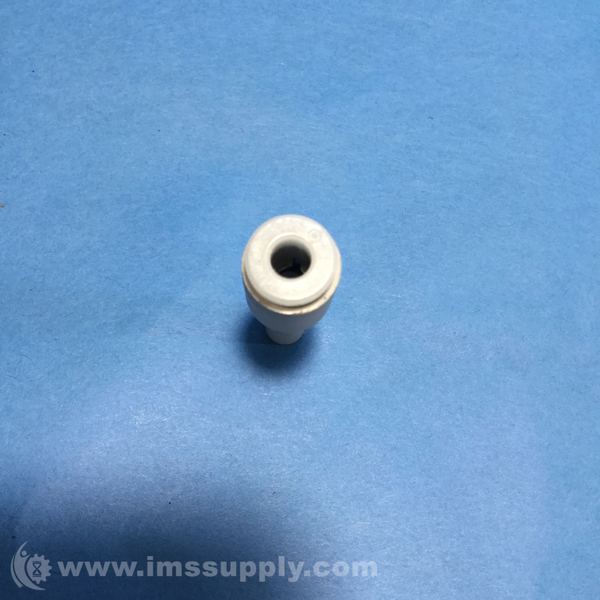

SMC KQ2R04-06A Push-In Fitting
Straight push-in fitting with 4mm and 6mm tube compatibility.
Specifications
- Series: KQ2
- Weight: 0.00972 lb
- Pressure Range: -100 kPa to 1 MPa
- Fitting Shape: Straight
- Compatible Tube Outer Diameter: 4 (Port 1) mm, 6 (Port 2) mm
- Operating Temperature Range: -5 to +60 (No Freezing) degrees C, 0 to +40 (Water) degrees C
- Body Material: STANDARD TUBING, NO OPTIONS
- Operating Pressure Range: -100 kPa to +1 MPa
- Burst Pressure: 3 MPa
- Max Operating Temperature: +40 (Water) degrees C, +60 (No Freezing) degrees C
- Min Operating Temperature: -5 (No Freezing) degrees C, 0 (Water) degrees C
- Flow Control Type: None
- Overall Diameter: 10.4 mm
- Overall Length: 34.5 mm
- Standards Met: JIS
- Fitting Connection Family: Push-In to Push-In
- Fitting Connection Type: 4 Female Push-In to 6 Male Tube
- Seal: None
Used (Special):
One plug-in reducer.
