SMC KQ2S10-02AS BRASS PUSH-IN FITTING
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: KQ2S10-02AS
IMS Product Code: 2142638
Packaging: Bag of 5
Description:

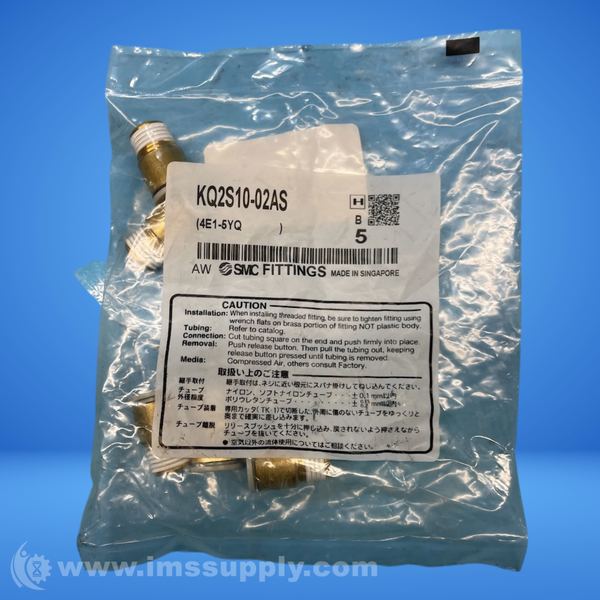

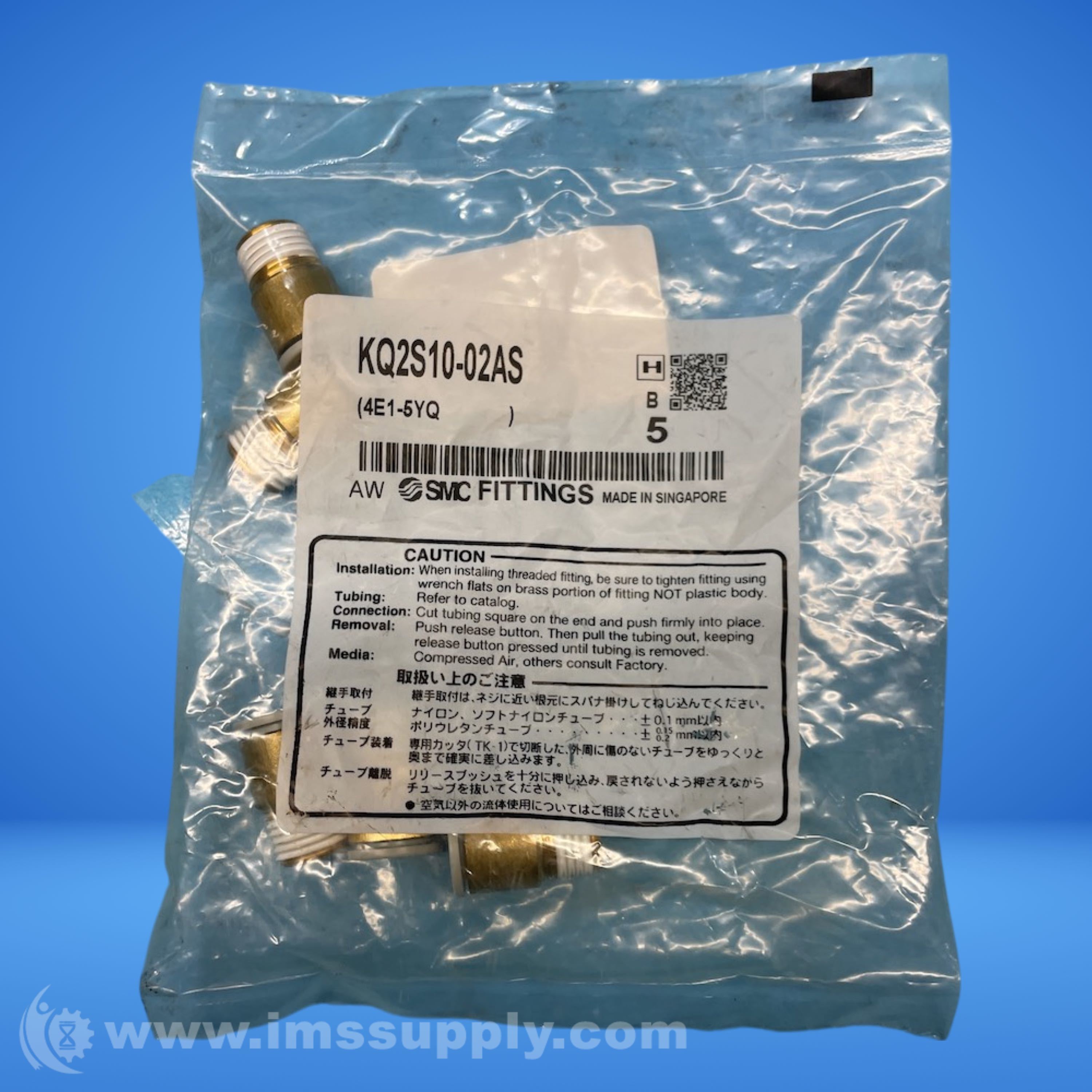

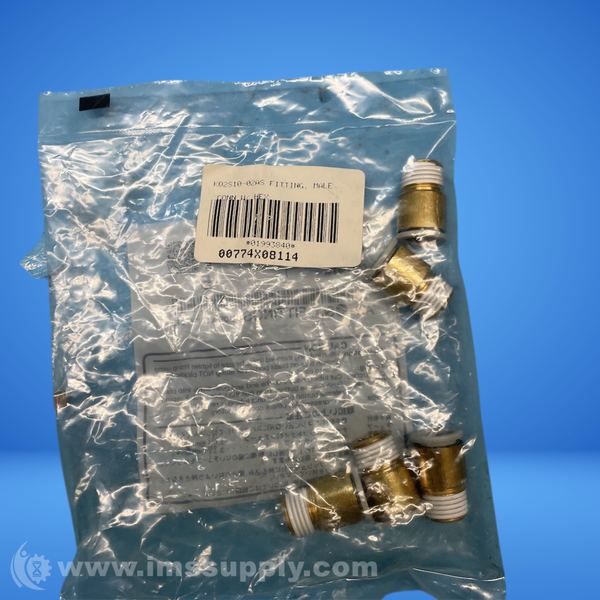

SMC KQ2S10-02AS Brass Push-In Fitting
Straight, threaded push-in fitting for 10mm tube OD x 1/4" BSPT, made of brass.
Specifications
- Series: KQ2
- Size: 10MM
- Weight: 0.04409 lb
- Type of pneumatic accessories: push-in fitting
- Splice terminal variant: straight, threaded
- Operating pressure: -1...10bar
- Body material: brass
- Thread: R 1/4"
- Cable external diameter: 10mm
- Operating temperature: -5...60°C
- Fitting Shape: Straight
- Compatible Tube Outer Diameter: 10 mm
- Operating Temperature Range: -5 to +60 °C, 0 to +40 (Water) °C
- Connection 1 Short Name: Push-In
- Connection 2 Short Name: BSP
- Operating Pressure Range: -100 kPa to +1 MPa
- Number Of Ports: 2
- Burst Pressure: 3 MPa
- Color: White Body, Light Gray Release Button
- Max Operating Temperature: +40 (Water) °C, +60 °C
- Min Operating Temperature: -5 °C, 0 (Water) °C
- Flow Control Type: None
- Hex Size: 8 mm
- Overall Diameter: 17 mm
- Overall Length: 27.5 mm
- Standards Met: JIS
- Fitting Connection Family: Push-In to BSP
- Seal: With Sealant
- Maximum Vacuum Pressure: 1.0MPa
