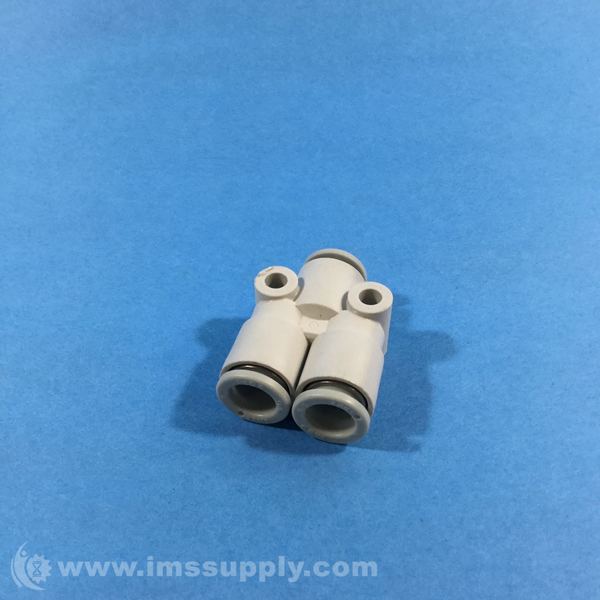

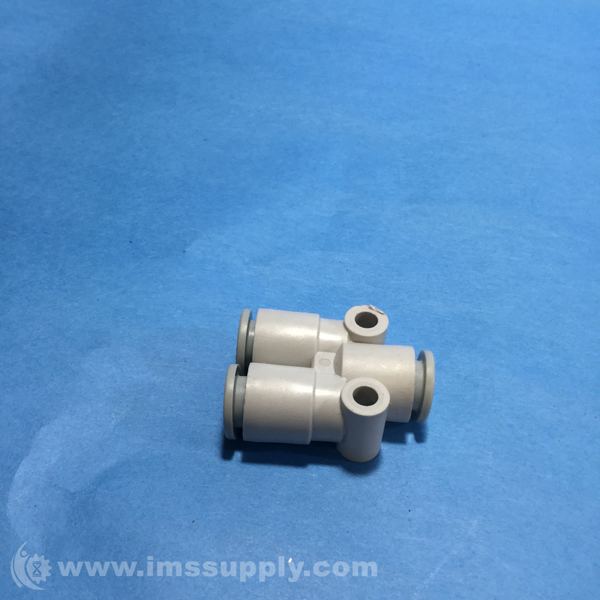

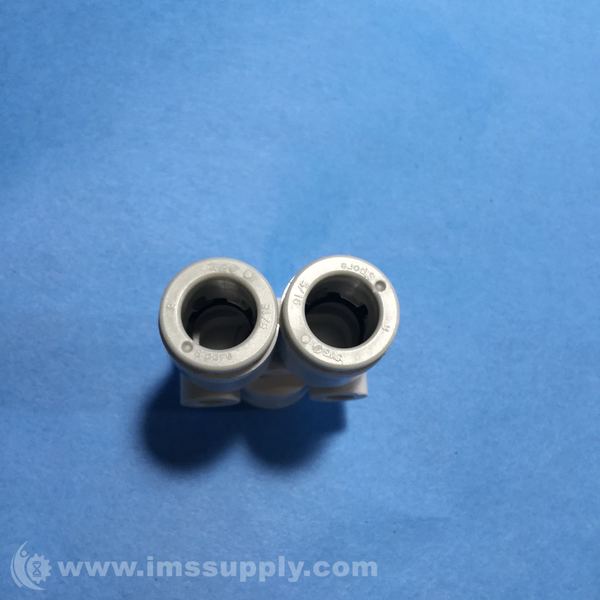

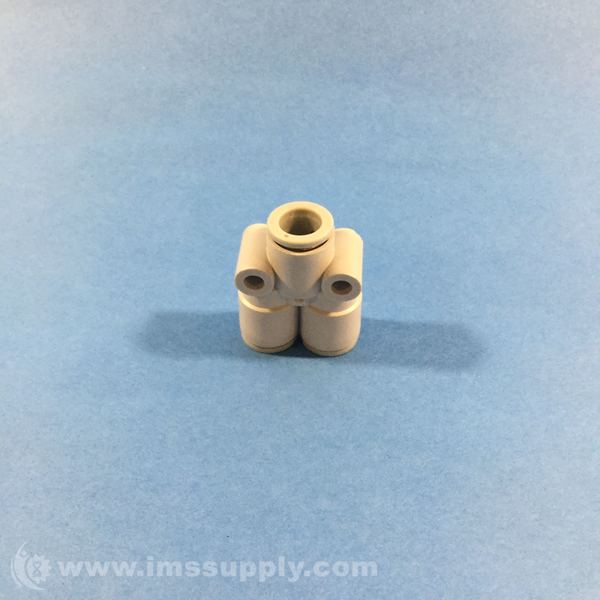

SMC KQ2U08-00A Y-CONNECTOR FITTING
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: KQ2U08-00A
IMS Product Code: 1798276
Packaging: Sold Individually
Description:
SMC KQ2U08-00A Y-Connector Fitting
Three-port union fitting with push-in connections, compatible with 8mm tube OD, using PFA, FEP, nylon, soft nylon, or polyurethane tubing. Operates with air or water, -100kPa to 1MPa pressure range, and -5 to +60 degrees C temperature range.
Specifications
- Series: KQ2
- Fitting Shape: Y-Connector
- Compatible Tube Outer Diameter: 8mm
- Operating Temperature Range: -5 to +60 degrees C
- Operating Pressure Range: -100 kPa to +1 MPa
- Number Of Ports: 3
- Burst Pressure: 3 MPa
- Body Material: Polybutylene Terephthalate
- Connection Type: Push-In
- Color: White Body, Light Gray Release Button
- Overall Diameter: 15.2 mm
- Overall Length: 42.5 mm
- Weight: 0.03095 lb
New - Missing Box (Special):
One fitting.
