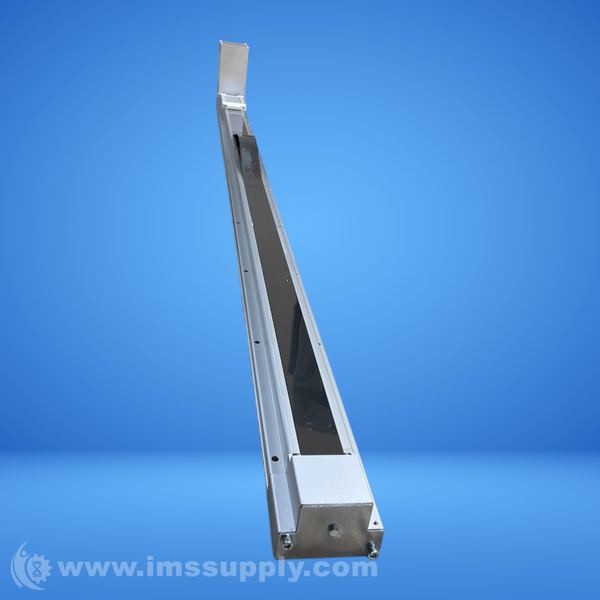

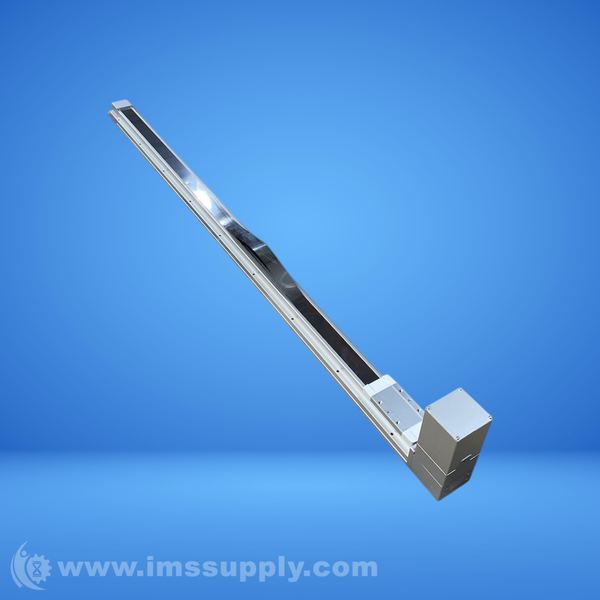

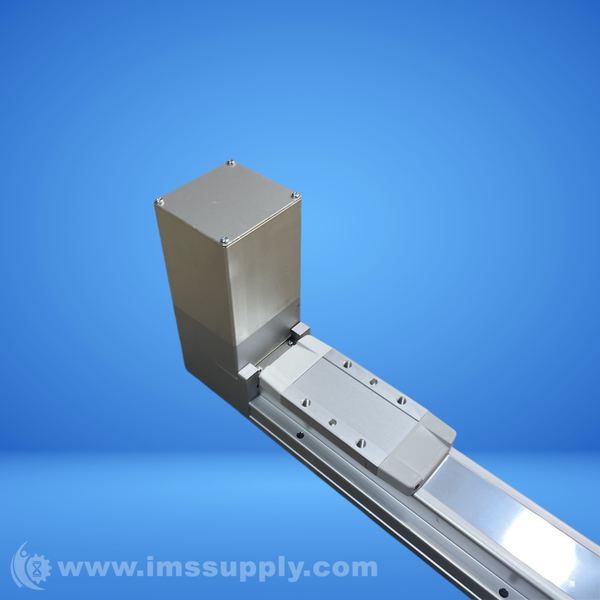

SMC LEFB40S4S-1500 BELT DRIVE ACTUATOR
Quick Overview
Manufactured By: SMC

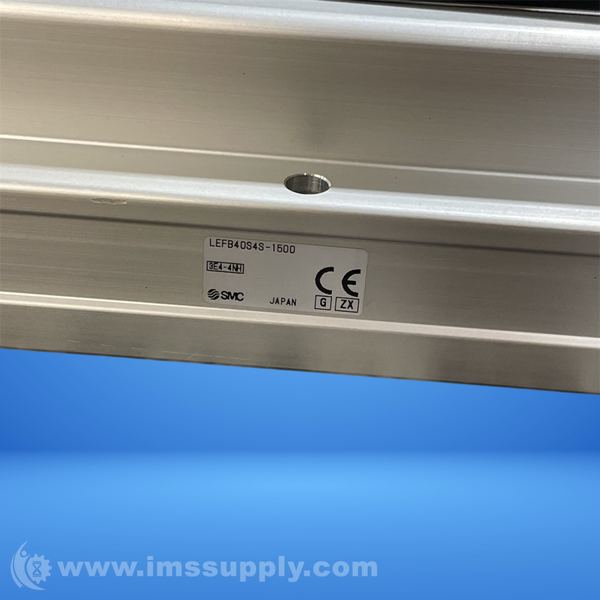

Manufacturer Part Number: LEFB40S4S-1500
IMS Product Code: 2142084
Packaging: Sold Individually
Description:
SMC LEFB40S4S-1500 Belt Drive Actuator
Electric actuator with belt drive mechanism, featuring a load mounting platform and flexible seal band. Suitable for applications requiring longer strokes and higher speeds.
Specifications
- Series: LEFB (Belt Drive)
- Size: 40
- Stroke: 1500 mm
- Work Load: 25 kg
- Max. Speed: 2000 mm/s
- Max. Acceleration/Deceleration: 20000 mm/s2
- Positioning Repeatability: +/- 0.08 mm
- Equivalent Lead: 54 mm
- Actuation Type: Belt
- Guide Type: Linear guide
- Motor Type: AC servo motor (100/200 VAC)
- Encoder: Incremental 17-bit or Absolute 18-bit
- Motor Output/Size: 400 W/60
- Operating Temperature Range: 5 to 40 degrees C
- Operating Humidity Range: 90% RH or less (no condensation)
- Power Consumption: 72 W
- Max. Instantaneous Power Consumption: 1275 W
- Lock Type: Non-magnetizing lock
- Holding Force: 110 N
- Lock Power Consumption at 20C: 7.9 W
- Rated Voltage: 24 VDC +/- 10%
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
